Overview

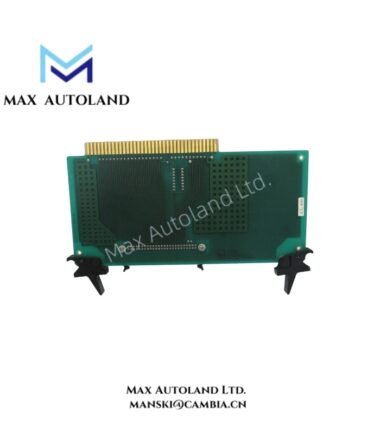

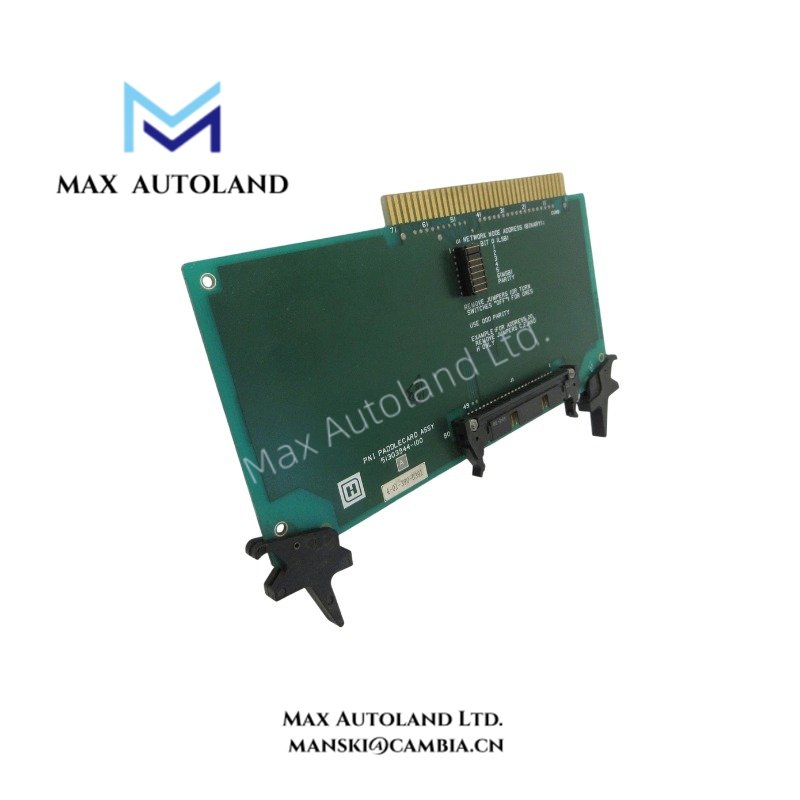

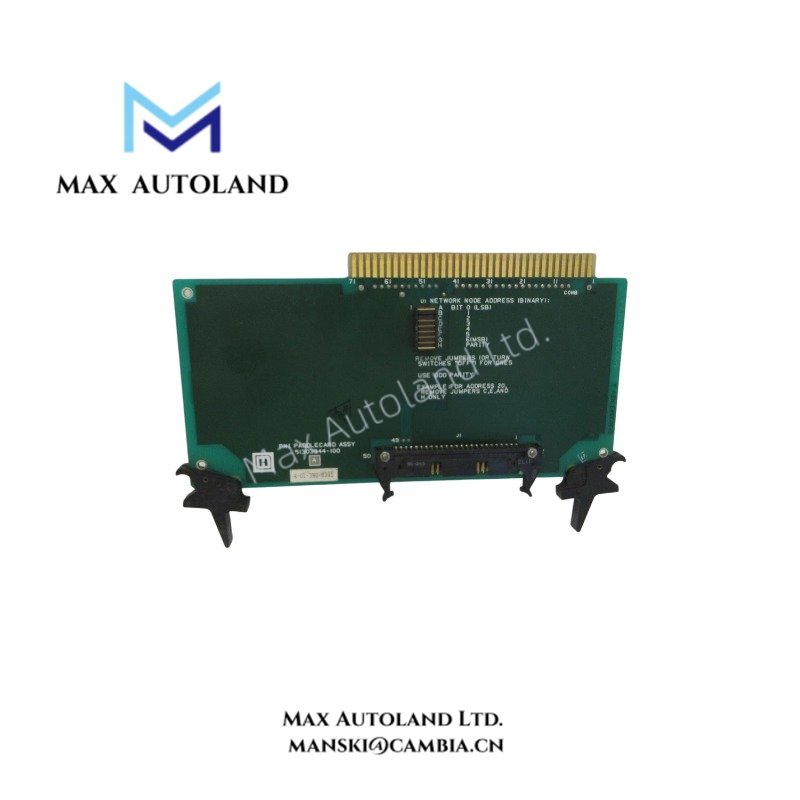

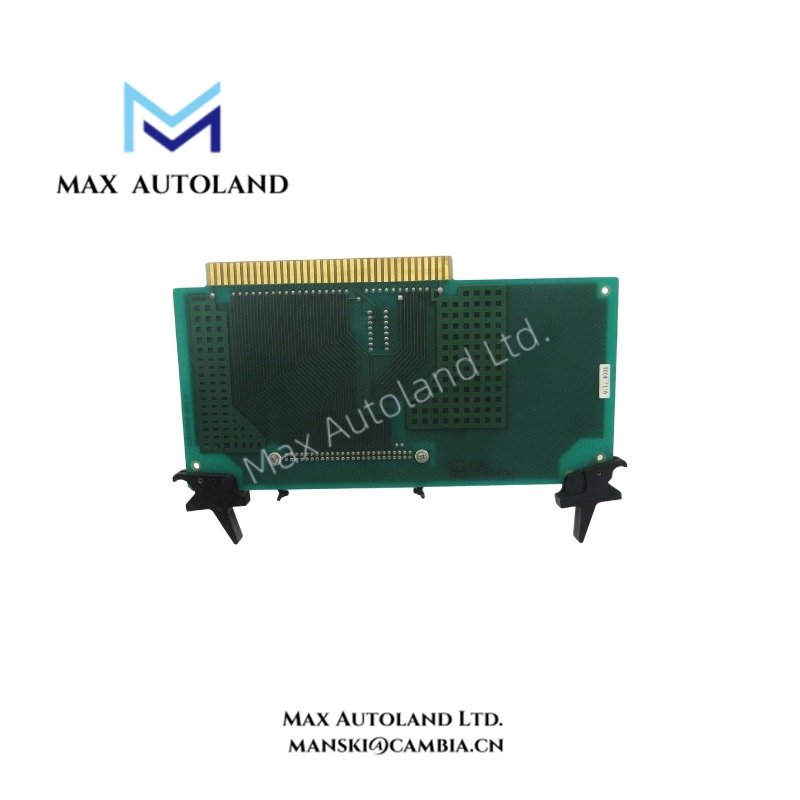

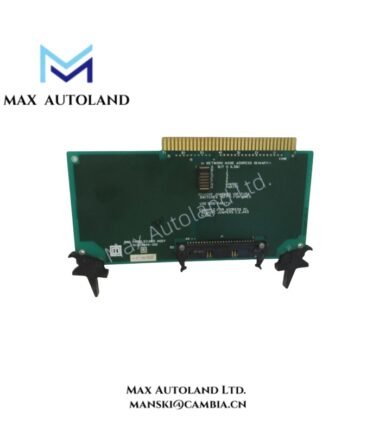

The Honeywell 51303944-100, also cataloged as the 51303944-100 PNI Paddle Card Assembly, operates as a dedicated hardware component for Network Interface Module (NIM) signal routing and Universal Control Network (UCN) integration within Honeywell TDC 3000 distributed control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51303944-100 |
| Brand | Honeywell |
| Origin | USA (supplier-reported) |
| Weight | Approximately 1.0 kg |
| Dimensions | Not verified (standard NIM card slot form factor) |
| Operating Temp | 0 deg C to 60 deg C (standard industrial control room limits) |
| Power Consumption | Derived from NIM backplane bus |
| Product Type | PNI Paddle Card Assembly |
| System Compatibility | TDC 2000 / TDC 3000 DCS |
| Associated Hardware | PNM I/O and Mini-Coaxial Cable |
4-20 mA HART Loop Protocol and UCN Interface
Operating within legacy Honeywell TDC 3000 architectures, the assembly coordinates signal exchange between field input/output channels and the Universal Control Network. Furthermore, it manages physical media transitions from PNM I/O hardware through mini-coaxial cabling connections into the Network Interface Module. Field instrumentation loops transmitting standard 4-20 mA HART protocol signals rely on robust backplane communication pathways to maintain deterministic data updates across redundant control nodes. Additionally, proper channel-to-channel isolation minimizes electromagnetic interference within high-density control rooms.
Frequently Asked Questions
Q: Does the 51303944-100 support live insertion and removal (hot-swapping) in a running NIM chassis?
A: No. Technicians must de-energize the specific chassis slot or follow strict system shutdown protocols before extracting or installing this paddle card to prevent backplane bus disruption.
Q: How does this paddle card connect with the underlying PNM hardware?
A: It utilizes dedicated mini-coaxial cable assemblies to interface directly between the PNM I/O termination panels and the core Network Interface Module architecture.
Field Installation Guidelines
- Verify that the installed NIM firmware and hardware revision match the requirements of the 51303944-100 Rev. A assembly prior to mounting.
- Inspect all mini-coaxial cable connectors for oxidation, physical deformation, or improper seating before tightening threaded coupling nuts.
- Ensure proper chassis grounding and electrostatic discharge (ESD) wrist strap utilization during handling to protect sensitive onboard circuitry.
- Document all jumper settings and cable termination maps to maintain signal integrity across the Universal Control Network.
