Overview
Specification
| Parameter | Specification |
|---|---|

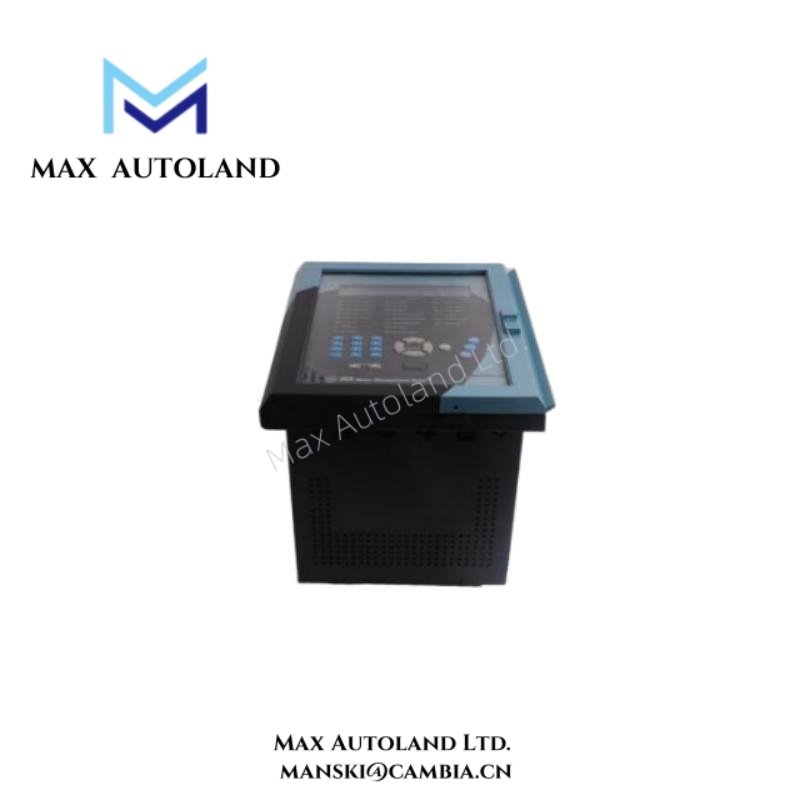

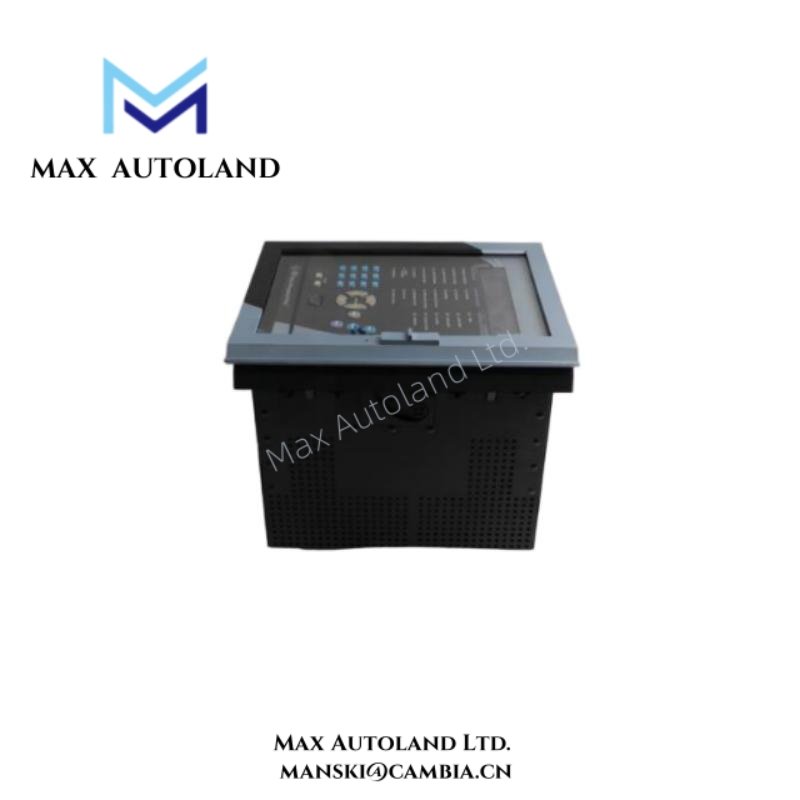

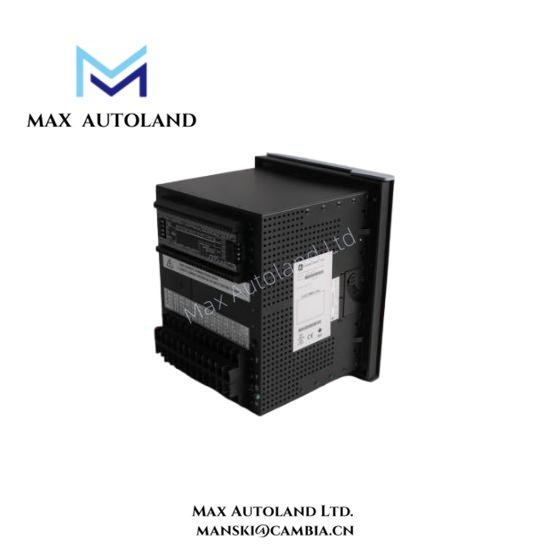

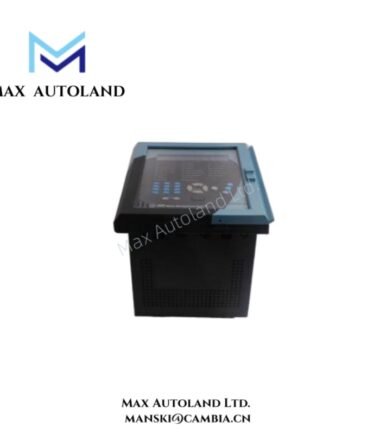

| Part Number | 469‑P5‑HI‑A20 |
| Product Type | Motor Protection & Management Relay |
| Series | GE Multilin 469 |
| Phase Current Input | 5 A phase CT secondaries |
| Control Power | 90–300 VDC; 70–265 VAC @ 48–62 Hz |
| Analog Outputs | Four (4) 4–20 mA channels |
| Monitoring Functions | Motor current, voltage, fault conditions |
| Protection Types | Overload, overcurrent, phase loss, ground fault |
| Communication | RS232/RS485 (varies with configuration) |
| Display & Interface | Local LCD display with keypad and status LEDs |
| Mounting | Panel or switchgear installation |
| Environmental Suitability | Industrial environments, non‑condensing conditions |
| Compliance | CE, UL and industrial safety standards |
FAQ
A1: It supports a wide control power range from 90–300 VDC or 70–265 VAC at 48–62 Hz.Q2: How many analog outputs are provided?
A2: The relay offers four 4–20 mA analog outputs for integration with external systems.
Q3: What types of motor protection are included?
A3: It delivers overload, overcurrent, ground fault, and phase loss protection.
Q4: Is the relay suitable for harsh industrial environments?
A4: Yes, its rugged design performs reliably in typical industrial conditions.
Q5: Can I monitor motor measurements locally?
A5: Yes, the unit includes an LCD display and status LEDs for local readouts.
Q6: Does this relay integrate with control systems?
A6: Yes, it supports communication via RS232/RS485 for remote monitoring and integration.
