Overview
Specification
| Parameter | Specification |
|---|---|

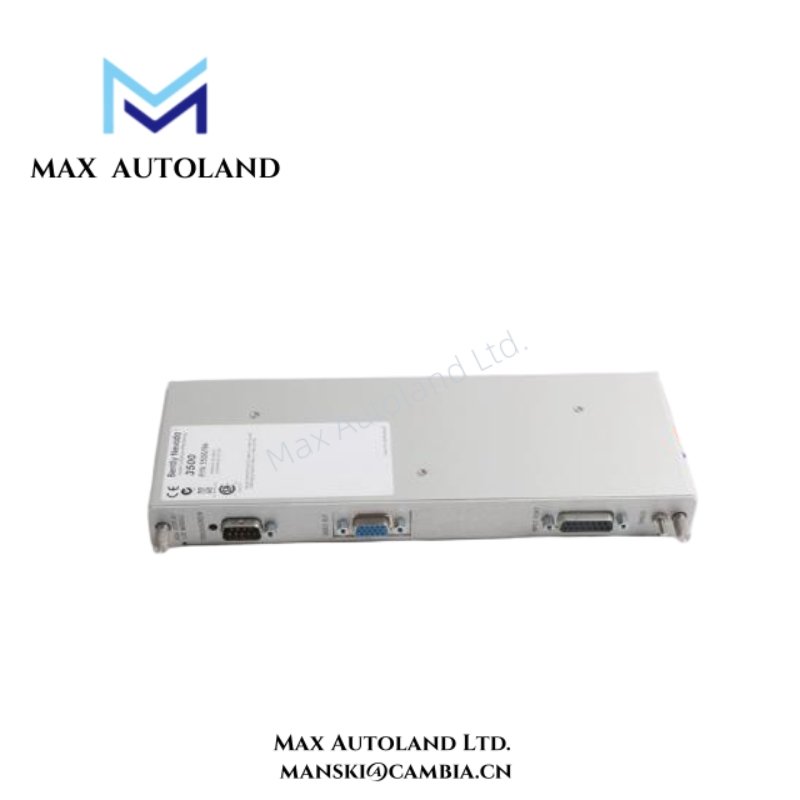

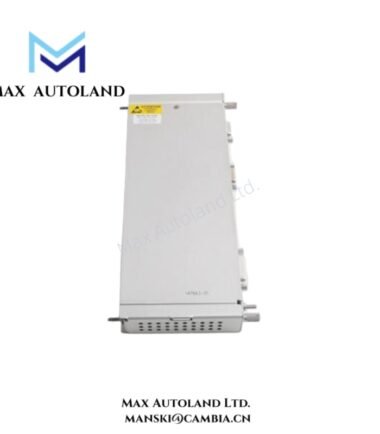

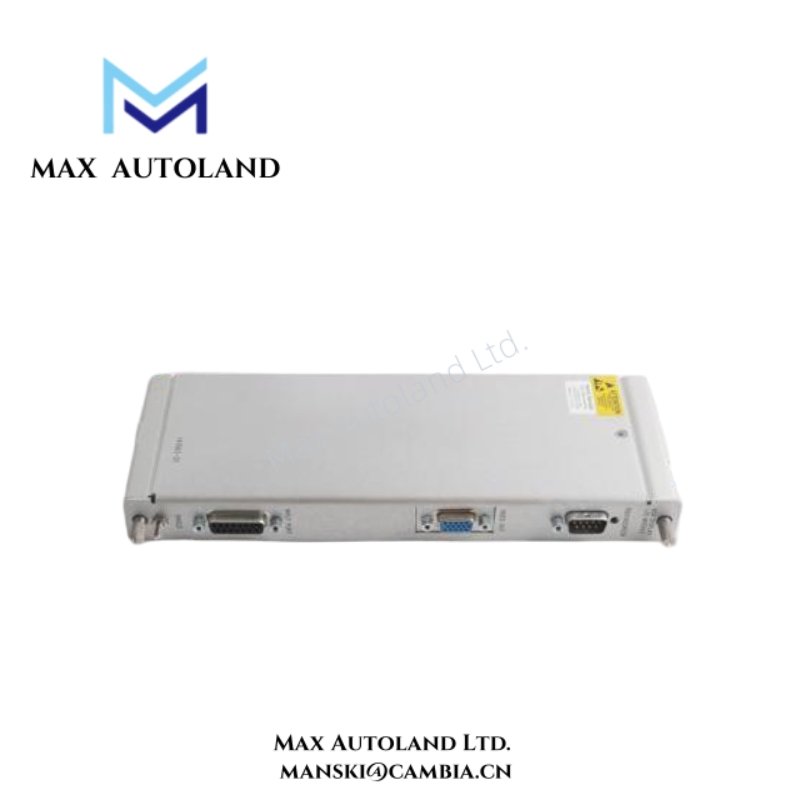

| Model Number | 147663-01 |
| Module Type | VGA Display I/O Module |
| Function | Displays 3500 Series machinery data on high-resolution VGA interface |
| Input Voltage | 24 V DC nominal (range: 20–30 V DC) |
| Input Current | Typical 0.5 A at 24 V DC |
| Power Consumption | 12 W typical |
| Display Interface | VGA output, 640 × 480 resolution minimum, 16-bit color support |
| Compatible Systems | Bently Nevada 3500 Series racks and modules |
| Digital I/O Channels | 8 channels, isolated, 24 V logic level |
| Analog Inputs | 4 channels, 0–10 V / 4–20 mA configurable |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5–95% RH non-condensing |
| Shock | 30 g, 11 ms half-sine pulse |
| Vibration | 5–500 Hz, 1 g RMS |
| Dimensions (H × W × D) | 180 mm × 120 mm × 45 mm (7.1 in × 4.7 in × 1.8 in) |
| Weight | 0.9 kg (2.0 lbs) |
| Mounting | Panel mount, rack mount compatible |
| LED Indicators | Power, module status, I/O activity |
| Connectors | Standard industrial I/O connectors, VGA port |
| Compliance | CE, UL recognized, RoHS compliant |
| MTBF | >100,000 hours at rated conditions |
| Cooling | Convection cooled, no fans required |
| Diagnostics | Built-in self-test and status reporting via 3500 system |
FAQ
A1: Yes, it integrates seamlessly with standard 3500 Series racks and modules, ensuring reliable system performance.Q2: What is the operating temperature range for this module?
A2: The module operates reliably from -20°C to +70°C (-4°F to 158°F) in industrial environments.
Q3: Does the module require active cooling or fans?
A3: No, it uses convection cooling, eliminating the need for fans and reducing maintenance requirements.
Q4: What type of display output does the module provide?
A4: It outputs VGA signals with a minimum 640 × 480 resolution and supports 16-bit color depth.
Q5: How many digital and analog I/O channels are available?
A5: The module includes 8 digital channels and 4 configurable analog input channels for versatile monitoring.
Q6: Can the module withstand vibration and shock in harsh industrial conditions?
A6: Yes, it is designed to handle 5–500 Hz vibration at 1 g RMS and shocks up to 30 g, ensuring durability.
