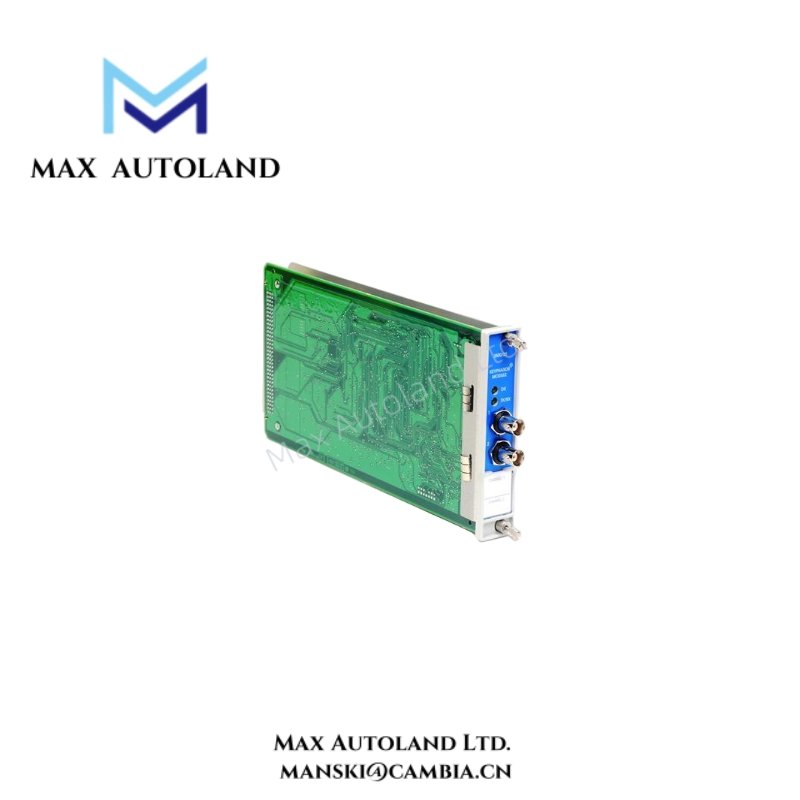

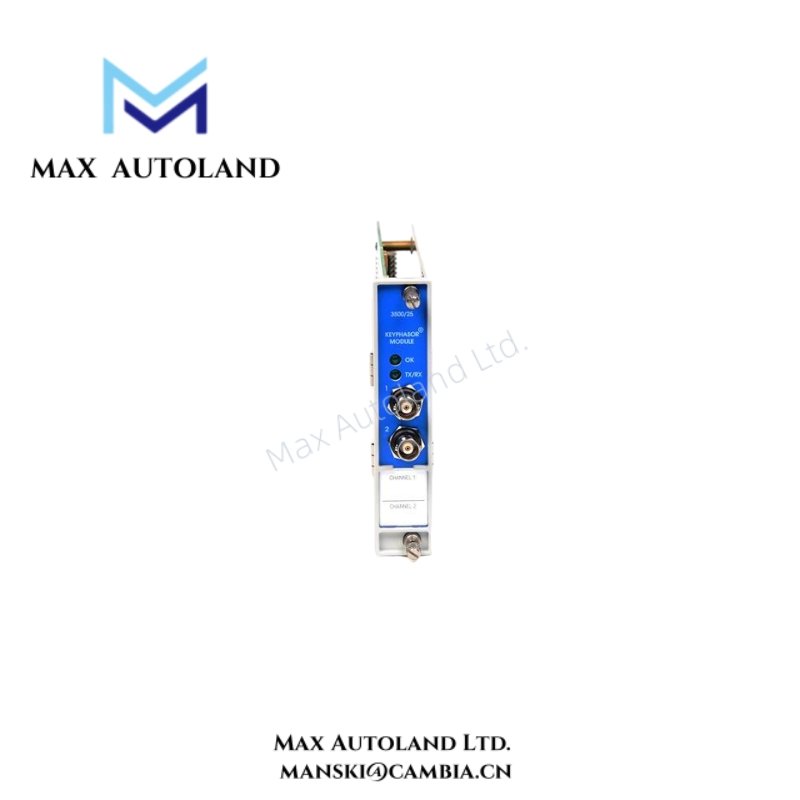

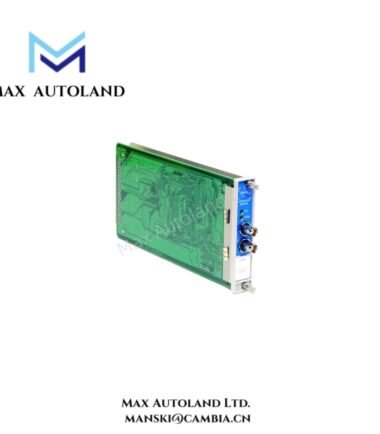

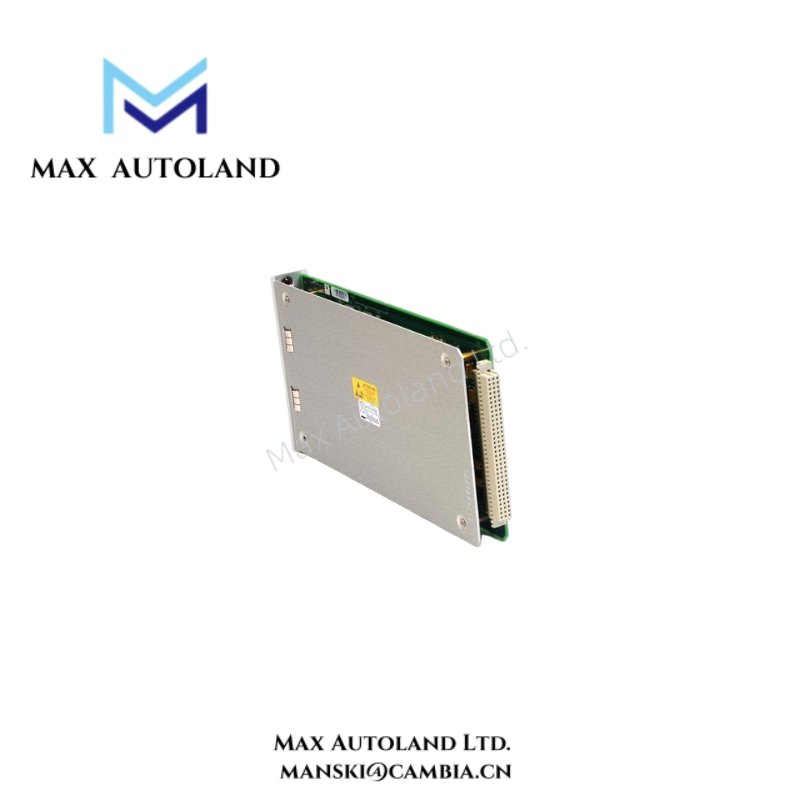

Overview
When used in Triple Modular Redundant (TMR) configurations, two modules operate in parallel to provide both primary and secondary Keyphasor signals, ensuring robust fault tolerance and operational reliability.
Specification
| Parameter | Specification |
|---|---|
| Part Number | 3500/25-01-05-01 |
| Product Type | Enhanced Keyphasor Module |
| Channels | Two input channels |
| Input Signal Type | Proximity probes or magnetic pickups |
| Input Voltage Range | +0.8 V to -21.0 V (Non-Isolated I/O), +5 V to -11 V (Isolated I/O) |
| Input Impedance | 21.8 kΩ minimum |
| Frequency Range (Input) | 1 to 1,200,000 cpm (0.017–20 kHz) |
| Output Frequency Range | 1 to 99,999 cpm (0.017–1667 Hz) |
| Accuracy (Processed Signals) | ±1 cpm up to 60 Hz, ±8 cpm up to 150 Hz, ±1% up to 20 kHz |
| Threshold (Auto) | Minimum 2 V peak-to-peak signal, minimum 120 rpm (2 Hz) |
| Threshold (Manual) | User selectable 0 to -20 Vdc; minimum 0.5 V peak-to-peak |
| Hysteresis | Selectable from 0.2 to 2.5 V |
| Buffered Outputs | 2 front (coaxial) and 2 rear (Euro-style) |
| Output Impedance | 504 Ω maximum |
| Transducer Power Supply | -24 Vdc, 40 mA max per channel |
| Power Consumption | 3.2 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Main Module Dimensions (H × W × D) | 119.9 × 24.4 × 256.5 mm (4.72 × 0.96 × 10.10 in) |
| Main Module Weight | 0.34 kg (0.76 lb) |
| I/O Module Dimensions (H × W × D) | 241.3 × 24.4 × 103.1 mm (9.50 × 0.96 × 4.06 in) |
| I/O Module Weight | 0.46 kg (1.01 lb) |
| Rack Slot Requirement | One half-height front slot + one full-height rear slot |
| Certifications | CE, EMC, RoHS compliant |
Ordering Considerations
| Parameter | Specification |
|---|---|
| Number of Channels | Single half-height, 2-channel Keyphasor card (ordered for 2 channels) |
| Type of I/O Module | Isolated I/O module with external terminations |
| Signal Compatibility | Designed for use with magnetic pickups |
| Agency Approval Option | cNRTLus certified (Class 1, Division 2) |
FAQ
A1: It provides a once-per-turn timing reference used to measure shaft speed, phase, and vibration vector.Q2: Can the Enhanced Keyphasor Module replace older versions?
A2: Yes, it maintains full form, fit, and function compatibility with legacy Keyphasor modules.
Q3: How many Keyphasor signals can a 3500 system accept?
A3: Up to four in normal configurations, or eight when using paired modules.
Q4: Does the module support TMR configurations?
A4: Yes. Two modules can operate in parallel for redundancy in TMR systems.
Q5: Can the module operate in hazardous locations?
A5: Yes, when configured with appropriate isolated I/O modules and installation practices.
