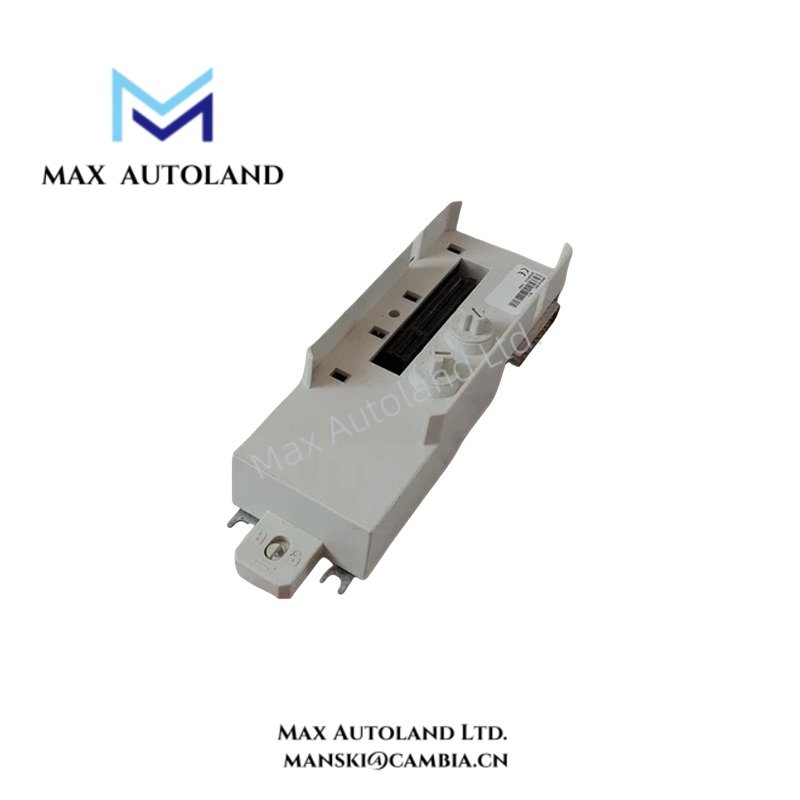

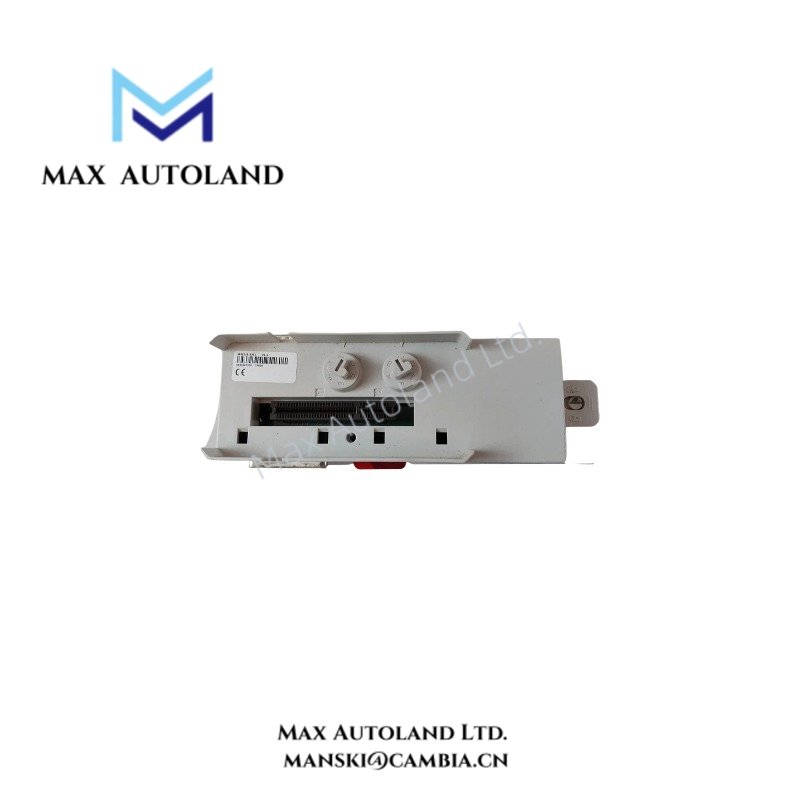

ABB TP858 Baseplate Module
Configured for physical mounting and electrical interconnection of communication interface hardware in ABB control platforms, the ABB TP858 (3BSE018138R1 Baseplate Module) provides direct mechanical support and backplane connectivity for CI858 related communication assemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TP858 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Communication Interface Baseplate |
| Catalog / Part Number | 3BSE018138R1 |
| Compatible Modules | CI858 and related DDCS communication interface modules |
| System Family | ABB Industrial IT, Advant, Symphony, and System 800xA architectures |
| Mounting Type | System-dependent DIN-rail or panel mounting |
| Connectivity | Integrated electrical connections for module mounting and system communication |
| Operating Temp | Standard ABB industrial operating environment; specific range depends on installed system configuration |
| Power Consumption | Passive mounting component; no independent power consumption specified |
ABB Backplane Bus Communication Integration
The TP858 provides the mechanical and electrical interface required for installing ABB communication interface modules within industrial control assemblies. It maintains module positioning and supports internal signal routing between the mounted interface unit and the control system architecture.
For ABB control platforms, hardware assemblies such as the TP858 are designed around backplane bus communication principles. Therefore, correct module alignment, connector engagement, and cabinet wiring practices directly influence communication stability and I/O density scaling within the automation configuration.
The TP858 does not perform signal processing or protocol conversion. Instead, it functions as a passive hardware foundation for compatible communication modules, including CI858 DriveBus interface applications.
Frequently Asked Questions
Q: Does the ABB TP858 perform communication processing or protocol conversion?
A: No. The TP858 is a passive baseplate component. Communication processing is executed by the installed interface module, such as the CI858.
Q: Can the TP858 operate as a standalone module?
A: No. The TP858 requires a compatible ABB communication interface module and the corresponding control system mounting arrangement.
Q: What installation factors affect TP858 electrical performance?
A: Correct connector engagement, proper cabinet grounding, cable separation, and compliance with ABB installation procedures affect the overall system interface performance.
Field Installation Guidelines
- Install the TP858 according to the applicable ABB hardware configuration manual and cabinet layout requirements.
- Verify mechanical alignment before inserting the communication interface module into the mounting position.
- Ensure that grounding and shielding practices follow the installed ABB control system standards.
- Separate communication wiring from high-current power cables to reduce electromagnetic interference.
- Inspect connectors and mounting interfaces for contamination, mechanical damage, or improper engagement before commissioning.
- Confirm firmware and hardware compatibility between the installed communication module and the target ABB control platform.
