Overview

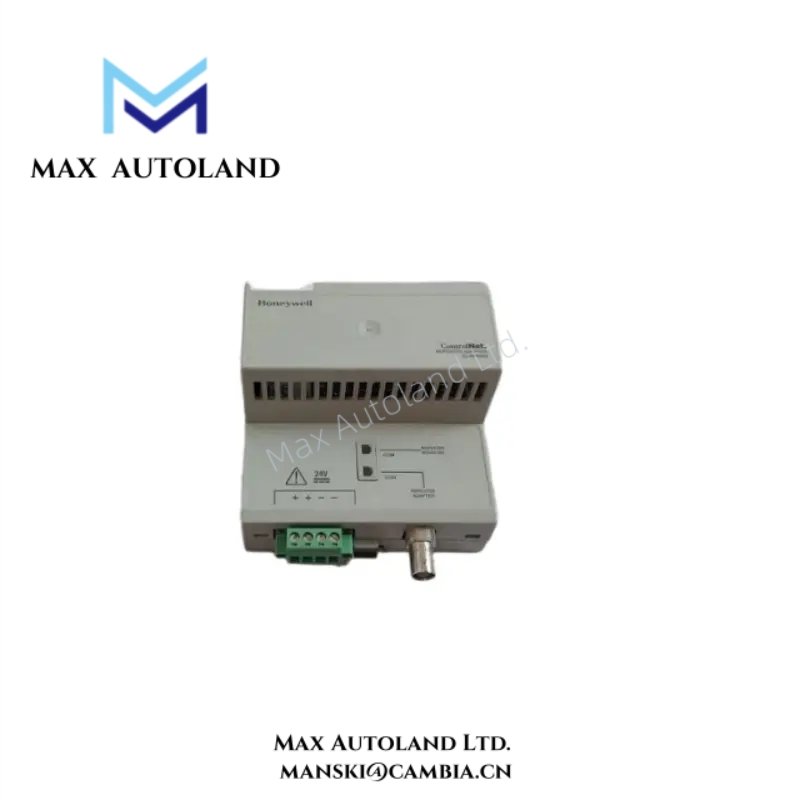

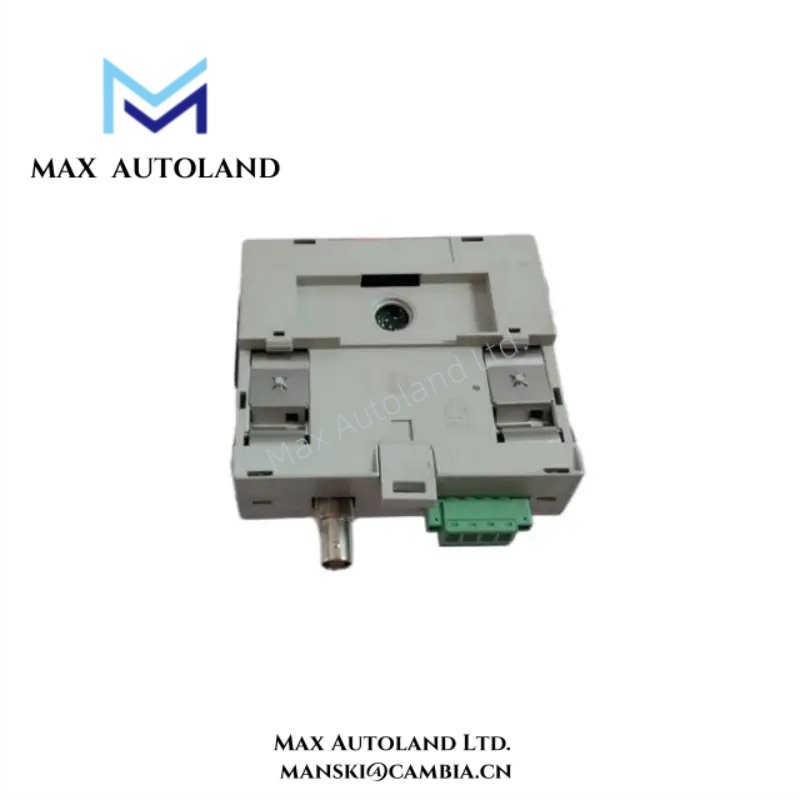

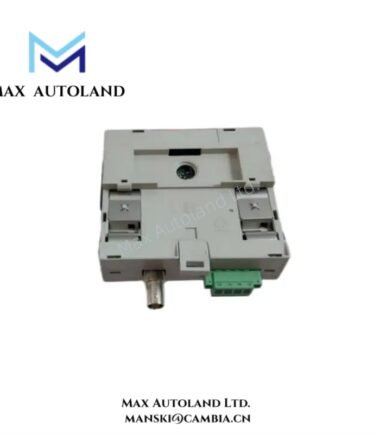

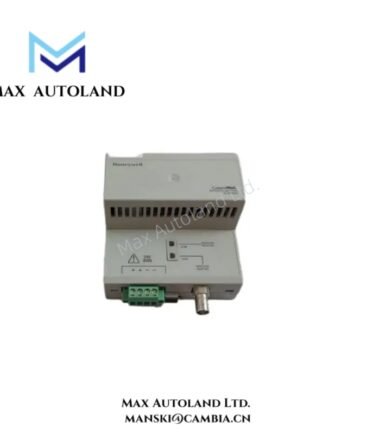

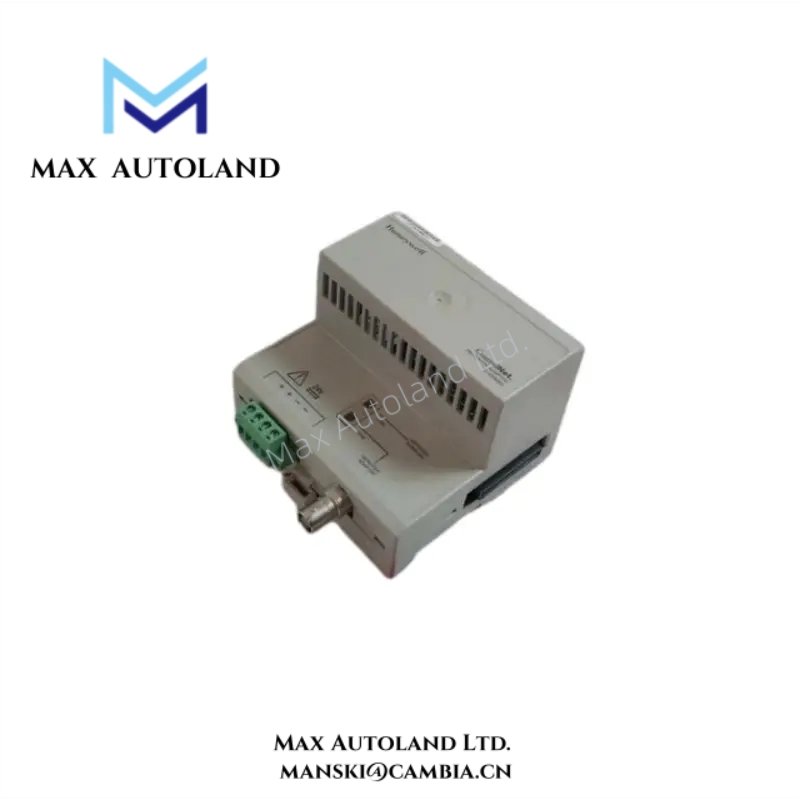

The Honeywell TC-RPA002, also cataloged as the TC-RPA002 ControlNet Repeater Adapter, is an industrial communication component associated with Honeywell control systems. The supplied documentation identifies it as a ControlNet repeater adapter. Specific network topology limits, signal regeneration characteristics, and compatibility details require confirmation from the manufacturer’s documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TC-RPA002 |
| Brand | Honeywell |
| Device Type | ControlNet Repeater Adapter |
| Origin | United States |
| Weight | 0.1 kg |
| Dimensions | 10.9 x 10.9 x 7.1 cm |
| Tariff Code | 851762050 |
| Shipping Origin | USA |
| Network Protocol | ControlNet |
| Communication Speed | 5 Mbps |
| Power Input | 24 VDC |
| Power Output | 5 VDC |
| Hazardous Area Rating | Class I, Division 2, Groups A, B, C, D, reported |
ControlNet Communication Characteristics
ControlNet uses scheduled and unscheduled communication to exchange data between compatible industrial control devices. Repeater functionality, where supported by the installed hardware, depends on the specific device architecture and network configuration.
Before integrating the TC-RPA002 into a Honeywell control network, verify its supported media, connector arrangement, power requirements, termination requirements, and compatibility with the target controller. The supplied information does not independently establish compatibility with a Honeywell C300 controller or specific I/O modules.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the TC-RPA002?
A: The supplied description identifies it as a ControlNet Repeater Adapter. Confirm the exact communication role and supported network configuration against the manufacturer’s documentation before installation.
Q: What power supply does the TC-RPA002 require?
A: The supplied specifications report a 24 VDC input and a 5 VDC output. Verify these electrical ratings, current requirements, and connector pin assignments using the applicable hardware documentation.
Q: Can the TC-RPA002 operate in a hazardous area?
A: A Class I, Division 2 rating is reported in the supplied data. Confirm the certification, applicable groups, installation conditions, and approval markings on the device before using it in a classified location.
Field Installation Guidelines
- Verify the complete model number and hardware revision against the system bill of materials.
- Confirm the specified supply voltage, current capacity, polarity, and connector pin assignments before energizing the device.
- Check the network cable type, connector compatibility, termination arrangement, and grounding requirements against the applicable ControlNet installation documentation.
- Route communication cables separately from high-voltage and high-current conductors where practical to reduce electromagnetic interference.
- Inspect connectors and cable shields for secure termination and continuity.
- Verify hazardous-area approvals and installation restrictions before mounting the unit in a classified location.
- Do not assume hot-swap capability, redundant operation, or compatibility with a specific controller without manufacturer confirmation.
