Overview

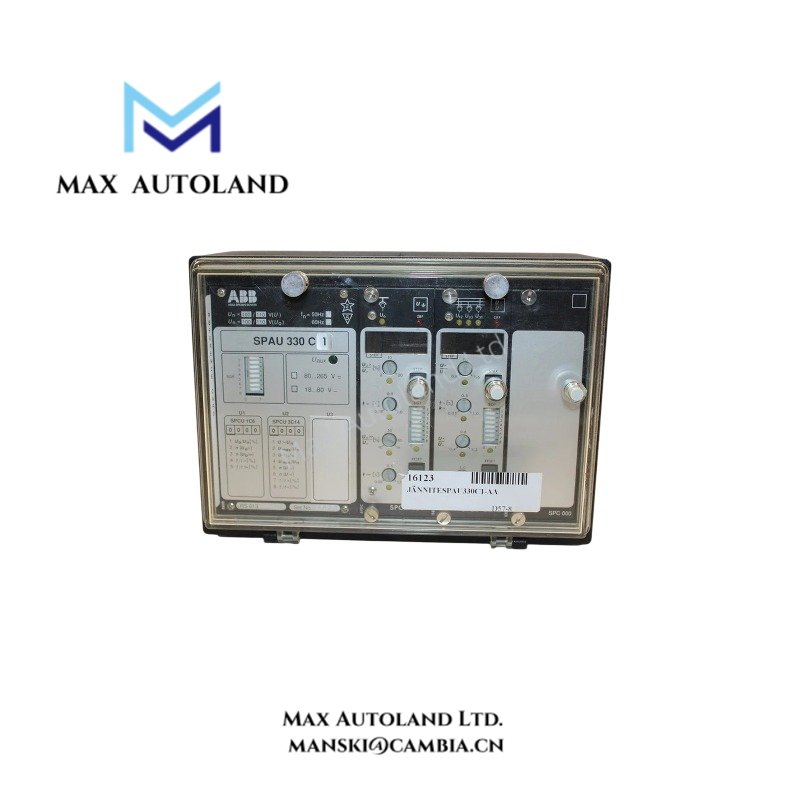

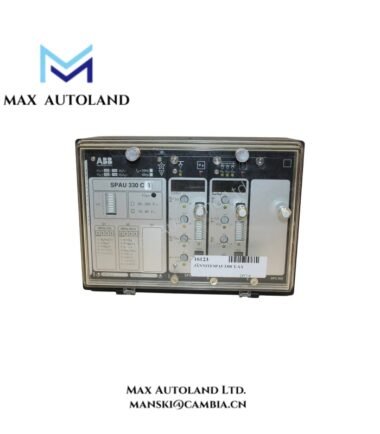

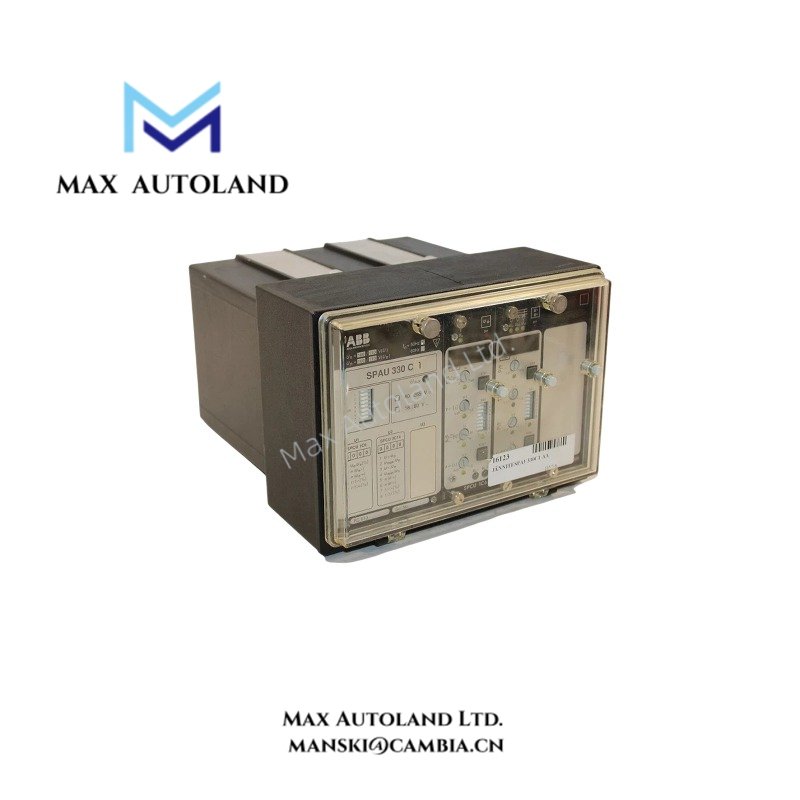

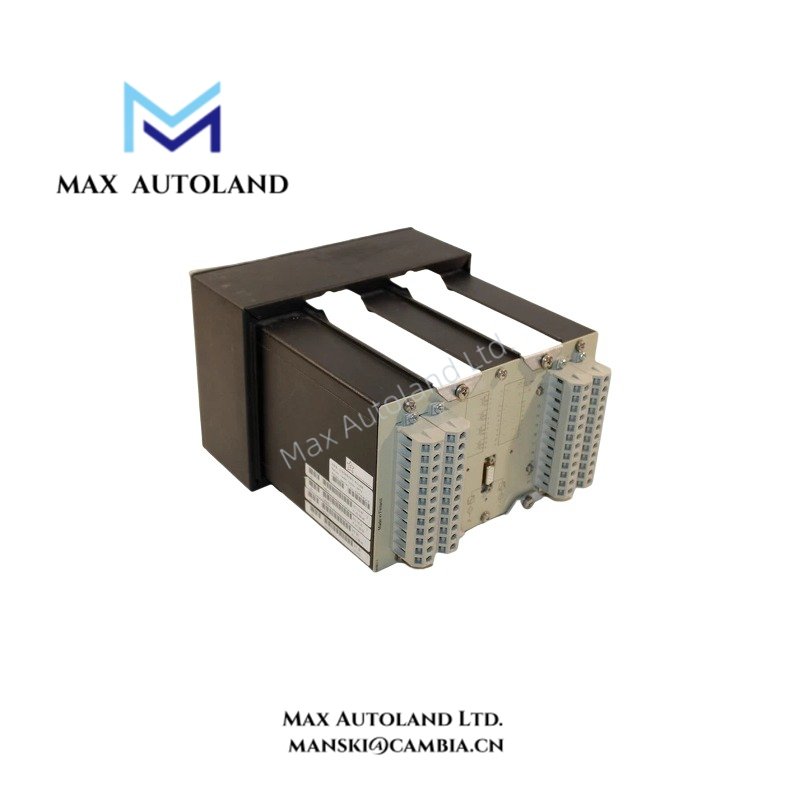

The ABB SPAU330 C1-AA is a voltage relay designed to supervise electrical voltages in substation protection systems. It monitors phase-to-phase voltages for overvoltage and undervoltage conditions and supports residual voltage monitoring and fault event recording. The documented configuration also includes continuous self-supervision and a serial communication interface using a fiber-optic bus.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SPAU330 C1-AA |
| Brand | ABB |
| Product Type | Voltage Relay |
| Application | Substation voltage supervision and protection |
| Operating Frequency | 50 Hz |
| Input Voltage Range | 80-265 V AC/DC |
| Protection Functions | Overvoltage and undervoltage supervision |
| Voltage Monitoring | Phase-to-phase and residual voltage |
| Event Recording | Fault event recording |
| Communication Interface | Serial interface via fiber-optic bus |
| Self-Supervision | Continuous hardware and software monitoring |
| Optional Features | Disturbance recorder module |
| Housing Material | Aluminum |
| Enclosure Protection | IP54 |
| Operating Temperature | -25 to +60 deg C |
| Storage Temperature | -40 to +70 deg C |
| Weight | 6.3 kg |
Voltage Monitoring and Protection
The relay monitors phase-to-phase voltages to identify conditions that exceed or fall below configured protection limits. Residual voltage monitoring provides an additional voltage measurement for protection assessment. The exact pickup values, operating delays, and reset settings should be verified against the installed relay configuration.
Communication and Self-Supervision
The fiber-optic serial interface supports communication over the specified optical bus. Continuous hardware and software self-supervision helps identify internal relay faults. Fault event recording provides information for reviewing protection operations and investigating abnormal voltage conditions.
Housing and Environmental Conditions
The aluminum housing has an IP54 protection rating. The specified operating temperature range is -25 to +60 deg C, while the storage range is -40 to +70 deg C. These limits distinguish the conditions for energized operation from those for storage.
Frequently Asked Questions
Q: What voltage conditions does the SPAU330 C1-AA monitor?
A: It supervises phase-to-phase voltages for overvoltage and undervoltage conditions and monitors residual voltage. Protection thresholds and operating delays depend on the relay settings.
Q: What does the AA suffix indicate?
A: The AA designation specifies a rated frequency of 50 Hz and an auxiliary supply range of 80-265 V AC/DC. This identifies the auxiliary supply configuration, not the monitored system voltage range.
Q: Does the relay include a disturbance recorder?
A: The disturbance recorder is an optional feature. Confirm the installed configuration before assuming that recording hardware is included.
