Overview

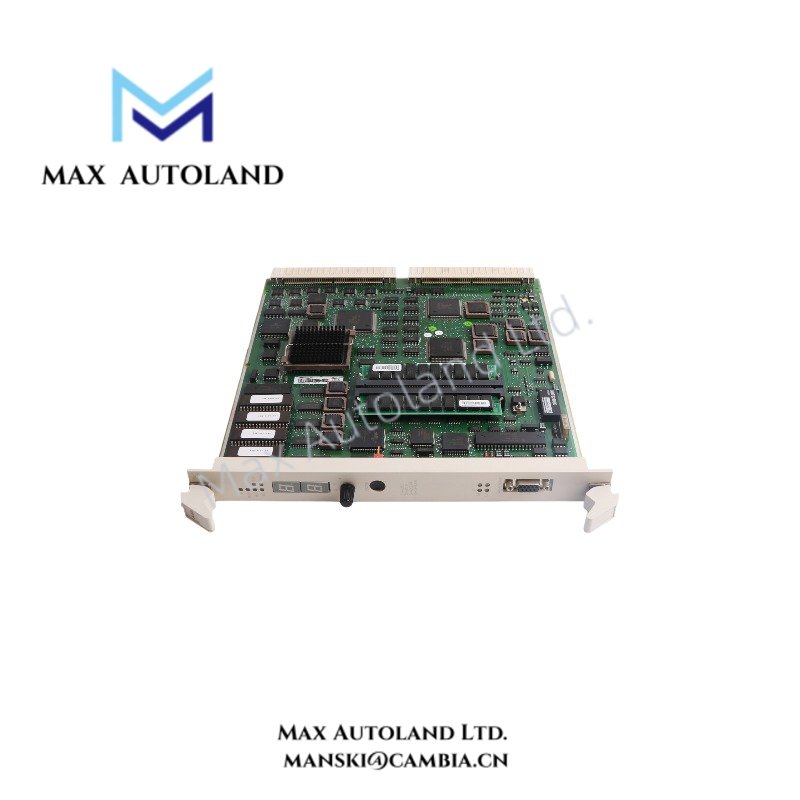

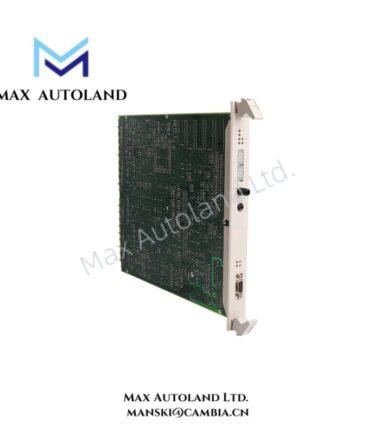

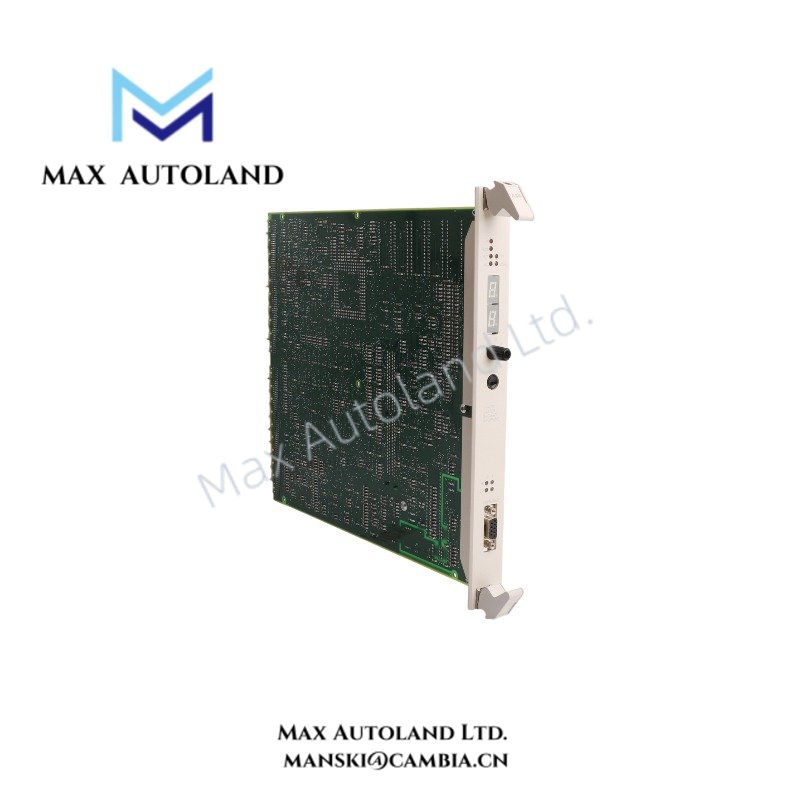

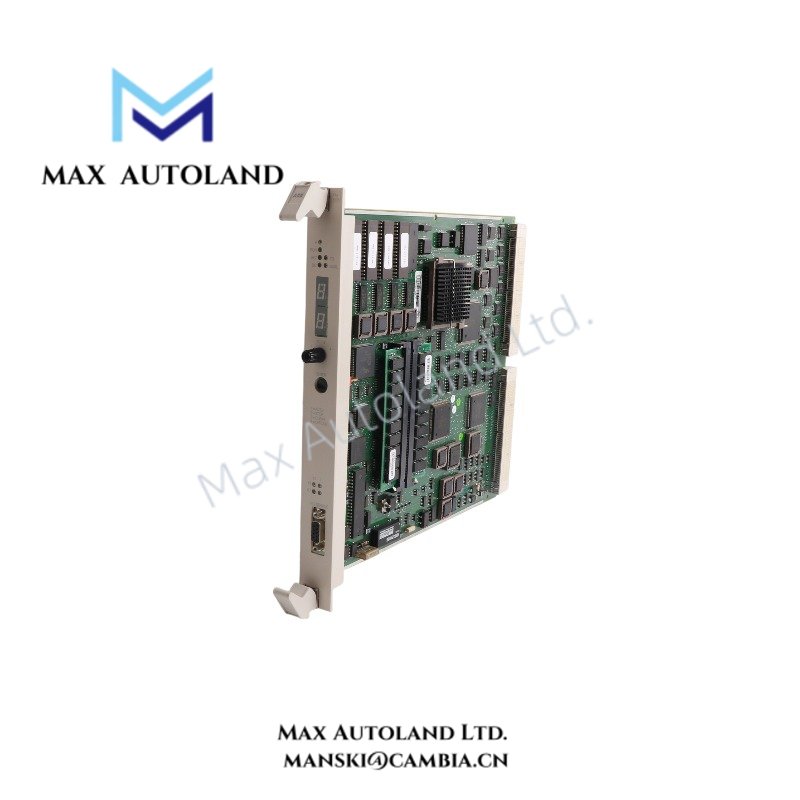

Configured for processor-level control and backplane data handling in ABB automation systems, the ABB PM510V08 (PM510V08 Processor Module) provides direct physical and electrical execution. The module is identified as a Central Unit and includes memory module components according to the supplied technical information. ABB lists 3BSE000270R1 as the replaced product ID and 3BSE008358R1 as the replacement product ID.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM510V08 |
| Brand | ABB |
| Product Name | PM510V08 Processor Module |
| Product Type | Central Unit |
| Origin | Sweden / Germany |
| Weight | 870 g net; 870 g gross |
| Customs Tariff Number | 85389091 |
| CN8 | 85389091 |
| Previous Product ID | 3BSE000270R1 |
| Replacement Product ID | 3BSE008358R1 |
| Exchange Number | EXC3BSE008373R1 |
| Part Type | New |
| Memory Module | SIMM memory module included |
| Included Memory Components | 2 x 3BSC120004R2 |
| Related Variant | PM510MV08 coated marine classified unit |
| Minimum Order Quantity | 1 piece |
| Selling Unit | Piece |
| WEEE Category | Category 5 Small Equipment |
| UNSPSC | 39120000 |
ABB Backplane Communication and Firmware Compatibility
The PM510V08 operates as a processor module within an ABB hardware architecture where processor functions depend on correct mechanical engagement and electrical connection to the system backplane. Therefore, installation must maintain clean connector surfaces and correct module seating.
Firmware and replacement compatibility must also be checked against the installed ABB system configuration before commissioning. The supplied replacement information identifies 3BSE008358R1 as the new product ID for the previous 3BSE000270R1 identification. In addition, the supplied configuration includes SIMM memory components, including 2 pieces of 3BSC120004R2.
Frequently Asked Questions
Q: Can the PM510V08 be replaced directly with the replacement product ID?
A: ABB identifies 3BSE008358R1 as the replacement product ID. However, the installed system configuration and firmware compatibility should be verified before replacement or commissioning.
Q: Does the PM510V08 include memory hardware?
A: According to the supplied technical information, the module includes a SIMM memory module configuration with 2 pieces of 3BSC120004R2.
Q: Can the PM510V08 be installed while the automation system is energized?
A: The supplied information does not specify hot-swap capability. Therefore, follow the applicable ABB system maintenance procedure and isolate equipment power where the system documentation requires it.
Field Installation Guidelines
Install the PM510V08 only in the specified ABB hardware location and ensure that the module aligns correctly with the backplane connector. Do not force the module into position, as incorrect mechanical engagement can damage connector contacts.
Before installation, isolate system power according to the applicable maintenance procedure unless the specific system documentation explicitly permits energized replacement. Inspect the module connector and backplane for contamination, bent contacts, or mechanical damage.
Maintain separation between processor hardware and high-energy field wiring. Route communication and signal wiring according to the applicable cabinet grounding and shielding practice. After installation, verify module recognition, processor status, memory configuration, and communication status before returning the system to normal operation.
