Overview

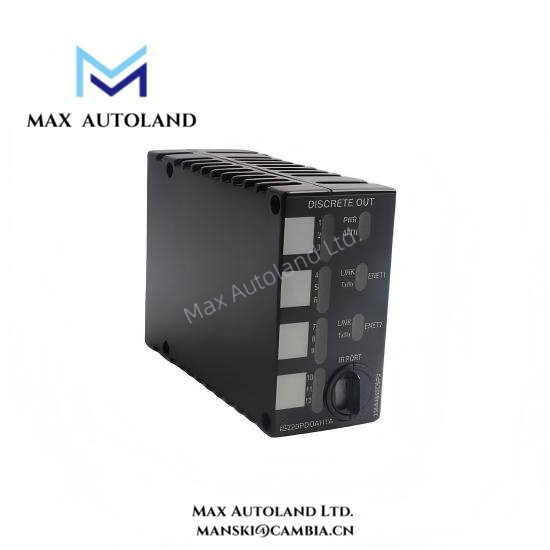

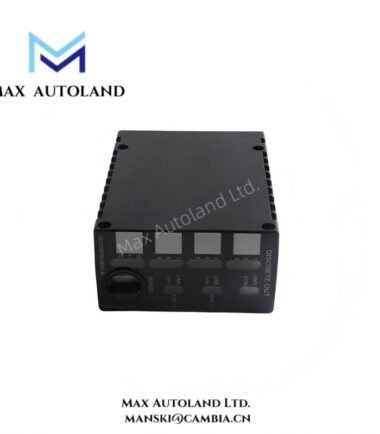

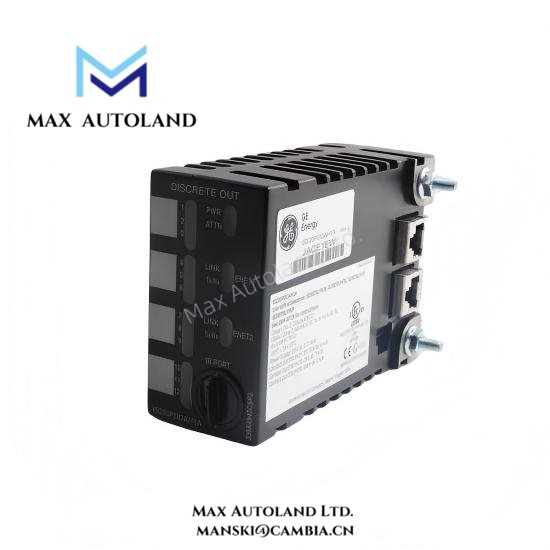

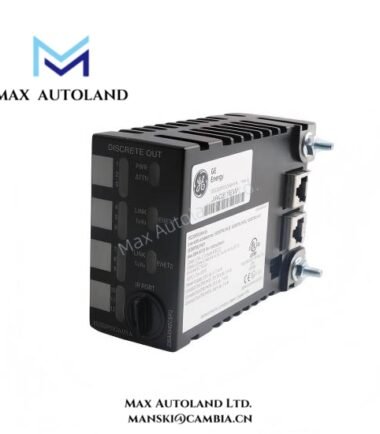

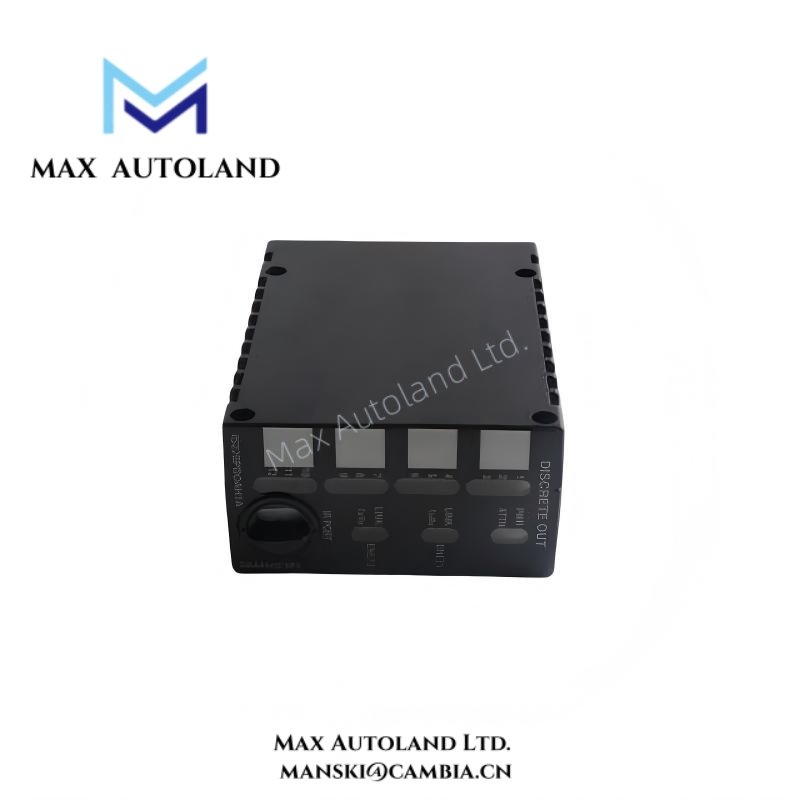

The IS220PDOAH1A is a discrete output module engineered for GE Mark VI control systems.
It delivers reliable switching for multiple output channels while maintaining industrial-grade performance.
Engineers utilize IS220PDOAH1A to control actuators, relays, and other output devices in turbine systems.
This module features a compact design, allowing straightforward integration into standard Mark VI cabinet slots.
Moreover, its robust circuitry ensures precise, low-latency response for critical turbine control functions.
The IS220PDOAH1A supports seamless communication through the ISBus backplane, enabling synchronized control.
Built for high reliability, the IS220PDOAH1A incorporates onboard protection against electrical surges and transient signals.
Consequently, operators achieve consistent output performance even in demanding industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | Mark VI Control System |
| Model | IS220PDOAH1A |
| Product Type | Discrete Output Pack |
| Primary Function | Provides multiple discrete outputs for turbine and auxiliary control |
| PCB Construction | Multi-layer epoxy fiberglass board |
| Number of Output Channels | 16 discrete outputs |
| Output Type | Form-A (normally open) relays |
| Output Voltage | 120/240 VAC or 24 VDC selectable |
| Output Current | 0.5 A per channel |
| Connector Type | High-density backplane edge connector |
| Mounting Method | Rack-mounted in Mark VI cabinet |
| Dimensions (H × W × D) | 30.5 cm × 19.0 cm × 2.5 cm |
| Weight | Approximately 1.1 kg |
| Communication Interface | ISBus for real-time data transfer |
| Power Supply | 5 VDC from backplane logic supply |
| Power Consumption | 12 W typical |
| Protective Features | Electrical surge and transient protection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Application | Excitation control, actuator and relay operation, turbine auxiliary functions |
FAQ
Q1: Is the IS220PDOAH1A original and new?
Yes, the IS220PDOAH1A is 100% factory-new and genuine from GE.
Q2: Is this module in stock?
Yes, we maintain inventory and can dispatch modules promptly.
Q3: How long does shipping take?
Shipping generally occurs within 3 days to 2 weeks, depending on order size, using DHL or similar carriers.
Q4: What applications is this module suitable for?
The IS220PDOAH1A controls relays, actuators, and auxiliary devices in Mark VI turbine systems.
Q5: Can I return the module if defective?
We support returns within 30 days if the module exhibits a manufacturing defect.
