Overview

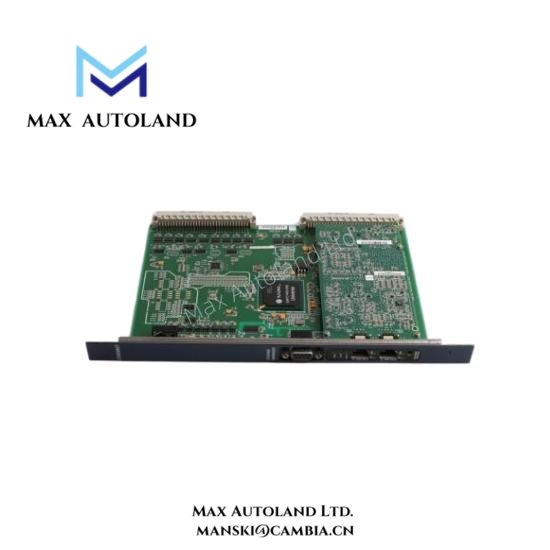

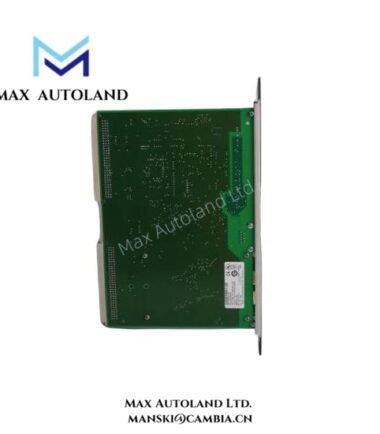

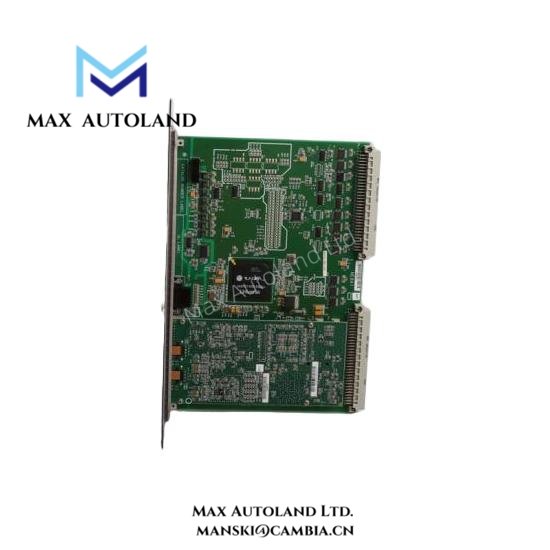

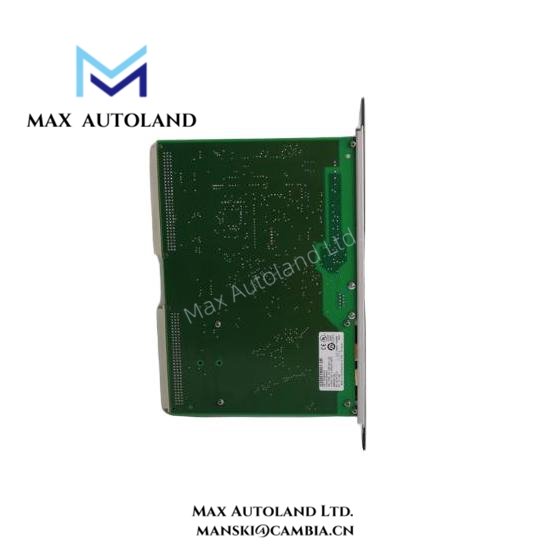

The GE IC698ETM001 is a high-performance Ethernet Interface Module designed specifically for the Rx7i PacSystem. Moreover, it connects PacSystem controllers directly to industrial Ethernet networks, enabling seamless communication. In addition, it delivers reliable high-speed data transfer while actively maintaining system integrity. Therefore, engineers rely on this module to ensure efficient network connectivity throughout complex industrial automation systems.
Specification
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IC698ETM001 |
| Module Type | Rx7i PacSystem Ethernet Interface Module |
| Communication | 10/100 Mbps Ethernet, full-duplex |
| Protocols Supported | TCP/IP, Modbus/TCP, EtherNet/IP compatible |
| Ports | 1 RJ45 Ethernet port |
| LED Indicators | Link, Activity, Status |
| Mounting Type | Rack or panel-mounted |
| Power Requirements | 5 VDC from Rx7i backplane |
| Power Consumption | 2.5 W typical |
| Dimensions | 31 mm W × 128 mm H × 130 mm D |
| Weight | 0.4 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5–95%, non-condensing |
| Certifications | CE, UL recognized, RoHS compliant |
| Application Scope | Industrial automation, factory control, process monitoring |
| Compatibility | Rx7i PacSystem controllers and standard I/O modules |
FAQ
Q1: What type of Ethernet port does the IC698ETM001 provide?
It provides one 10/100 Mbps RJ45 Ethernet port for high-speed communication.
Q2: Which protocols are supported by this module?
It supports TCP/IP, Modbus/TCP, and is EtherNet/IP compatible.
Q3: Can it be installed in existing Rx7i PacSystem racks?
Yes, it is fully compatible with standard Rx7i backplane slots and modules.
Q4: What is the operating temperature range for this module?
It operates reliably between 0°C and 60°C.
Q5: How does it improve network reliability?
Built-in diagnostics and network monitoring features reduce downtime and enhance communication stability.
