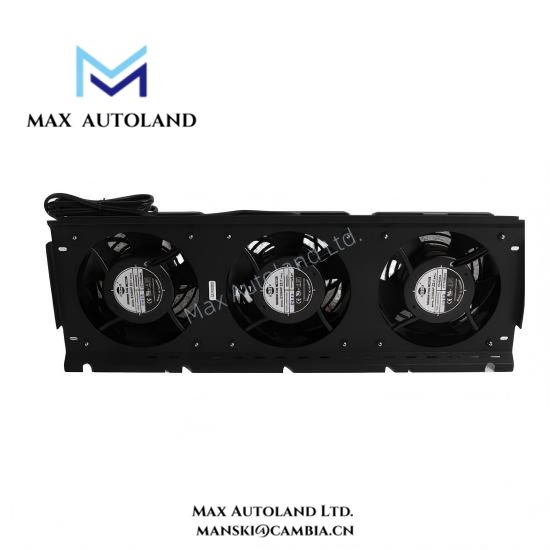

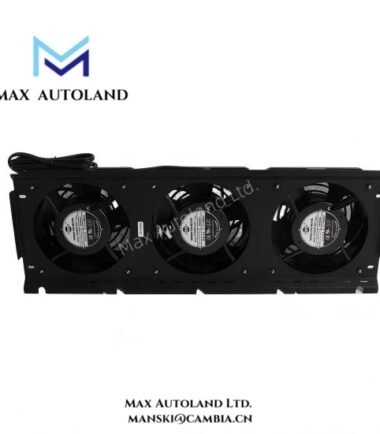

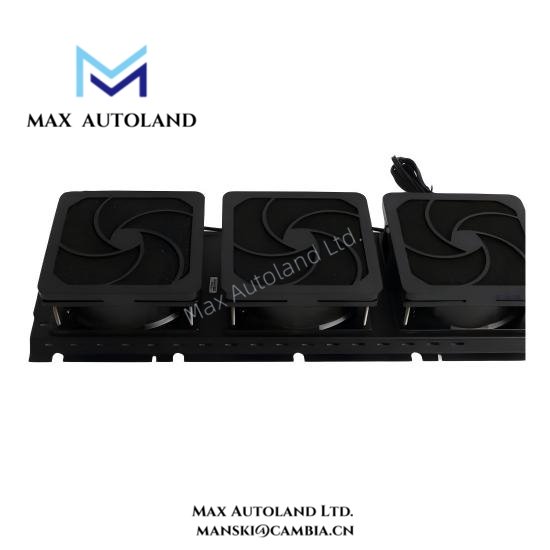

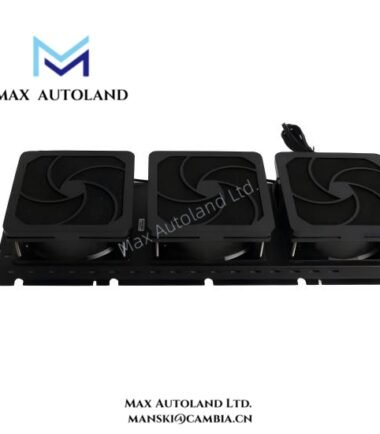

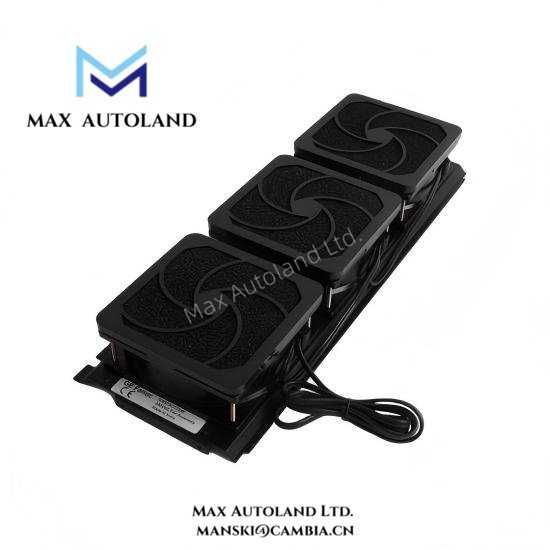

Overview
It maintains consistent airflow across installed CPU, I/O, and communication modules.
Moreover, the assembly protects sensitive electronics from heat-related performance degradation.
Engineers install this fan unit in high-density racks where thermal buildup can impact stability.
Therefore, it plays a critical role in preserving system uptime and long-term reliability.
In addition, the assembly integrates directly with compatible 90-70 racks without structural modification.
The IC697ACC724 supports continuous industrial operation under demanding environmental conditions.
As a result, control systems maintain stable processing performance even during peak workloads.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Product Series | Series 90-70 PLC |
| Model Number | IC697ACC724 |
| Product Type | Rack Fan Assembly / Cooling Accessory |
| Primary Function | Forced-air cooling for PLC rack modules |
| Compatible Systems | GE Series 90-70 racks and baseplates |
| Mounting Location | Front-mounted on 90-70 rack frame |
| Cooling Method | Active airflow using integrated axial fans |
| Airflow Direction | Horizontal airflow across installed modules |
| Air Distribution | Uniform ventilation across CPU, I/O, and communication modules |
| Power Supply Type | External DC power input (industrial cabinet supply) |
| Nominal Voltage | 24 VDC (typical industrial control voltage) |
| Power Consumption | Low-power continuous-duty operation |
| Electrical Connection | Terminal-based or harness connection depending on rack configuration |
| Overcurrent Protection | Requires external circuit protection per cabinet design |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Noise Level | Industrial-grade ventilation sound profile |
| Cooling Capacity | Designed to maintain rack temperature within 90-70 operating limits |
| Mechanical Construction | Metal mounting bracket with integrated fan housing |
| Serviceability | Field-replaceable fan assembly |
| Expected Service Life | Rated for continuous industrial operation |
| Environmental Suitability | Control cabinets with high module density or elevated ambient temperatures |
| Compliance | Designed for industrial PLC thermal management standards |
FAQ
A1: It provides active cooling for GE Series 90-70 PLC racks.
Q2: Which systems support this fan assembly?
A2: It is designed specifically for Series 90-70 baseplates.
Q3: Does it improve system reliability?
A3: Yes, it reduces heat buildup and protects sensitive PLC components.
Q4: Can it operate in industrial environments?
A4: Yes, it supports typical industrial temperature and humidity ranges.
Q5: Is installation complex?
A5: No, it mounts directly onto compatible 90-70 racks.
