Overview
Moreover, this module supports demanding automation tasks where fast signal processing directly improves system accuracy.

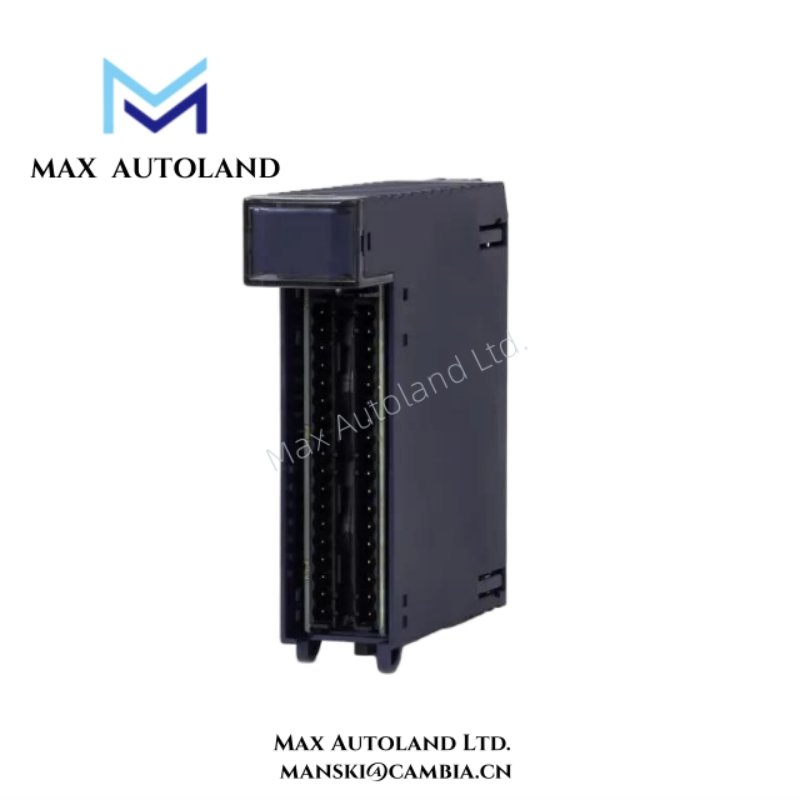

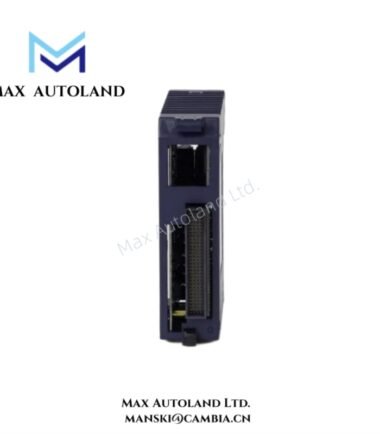

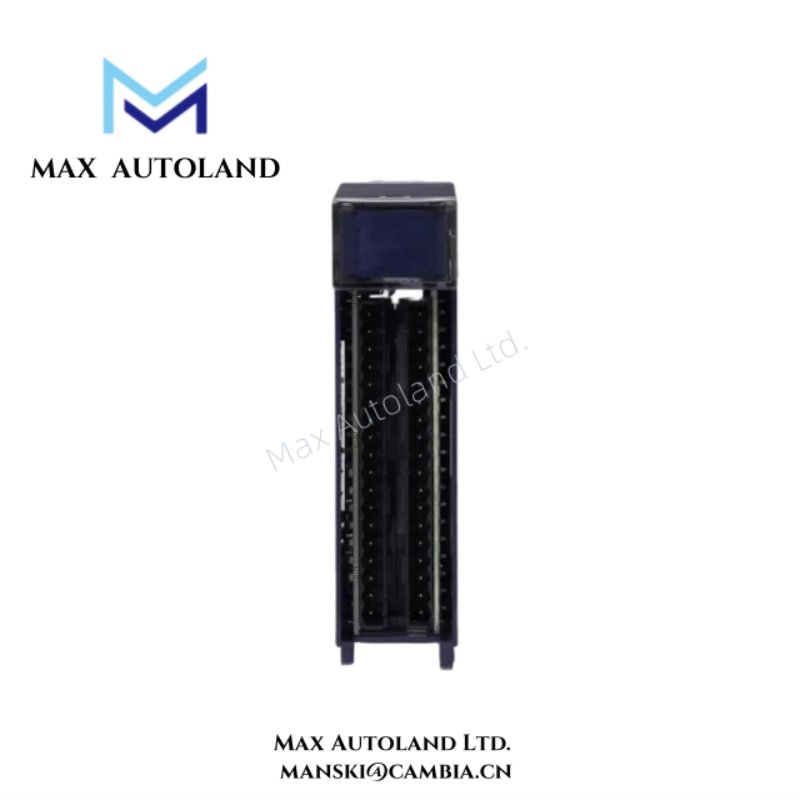

In addition, GE designed the IC695HSC308 to integrate seamlessly within Rx3i control architectures.
Therefore, engineers commonly select this module for encoder-based measurement and high-resolution counting applications.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | PACSystems Rx3i |
| Model | IC695HSC308 |
| Module Type | High-Speed Counter Module |
| Number of Channels | 8 independent counter inputs |
| Supported Signal Types | Incremental encoder, pulse, direction |
| Maximum Input Frequency | Up to 1 MHz per channel |
| Counter Resolution | 32-bit counting |
| Input Voltage | 5 VDC / 12 VDC compatible |
| Input Interface | Removable terminal block |
| Backplane Interface | Rx3i PCI-based backplane |
| Onboard Processing | Dedicated high-speed counter ASIC |
| Energy Storage | Internal capacitive buffering for signal stability |
| Isolation | Channel-to-logic electrical isolation |
| Diagnostics | Per-channel status and fault reporting |
| Module Width | Approx. 1 slot (standard Rx3i form factor) |
| Dimensions (H × W × D) | Approx. 5.12 × 1.77 × 5.59 inches |
| Weight | Approx. 0.5 lb (0.23 kg) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Installation | Rack-mounted within Rx3i system |
| Compliance | Industrial automation standards |
FAQ
Q1: Is the IC695HSC308 supplied as new and original?
Yes, all IC695HSC308 modules are brand-new, factory original, and fully tested.
Q2: Do you keep the IC695HSC308 in stock?
Moreover, we maintain stock for this model to support urgent industrial requirements.
Q3: How fast can you ship the IC695HSC308 after ordering?
Typically, shipping occurs within three days to two weeks, depending on total order quantity.
Q4: Which logistics carriers do you usually use?
In addition, we commonly ship using DHL and other reliable international logistics providers.
Q5: What is your return policy for the IC695HSC308?
Therefore, we support returns within thirty days if any verified quality issue occurs.
