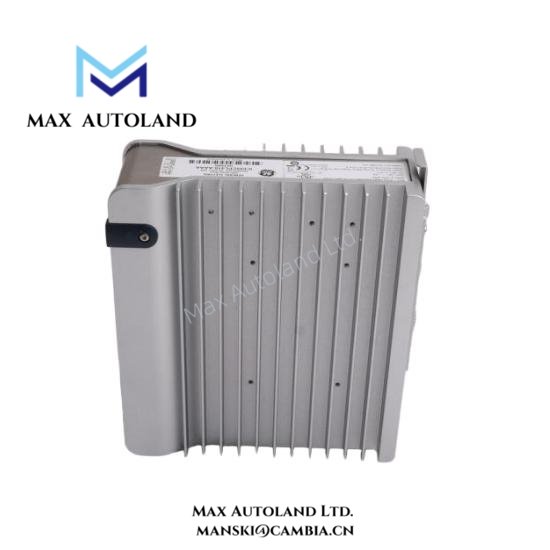

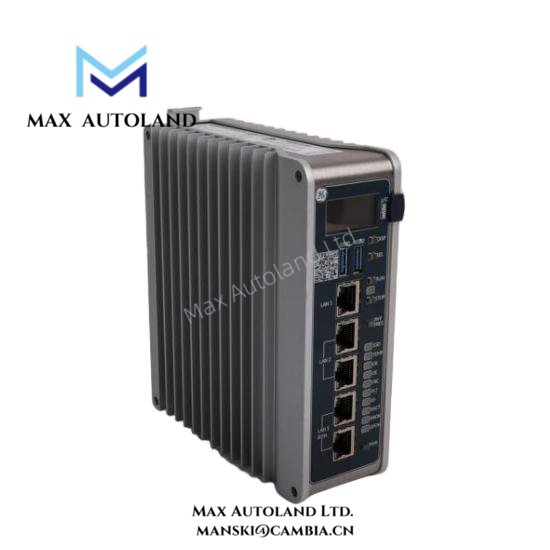

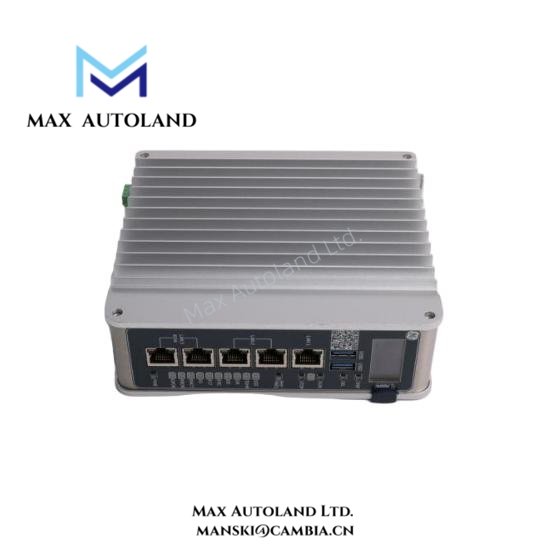

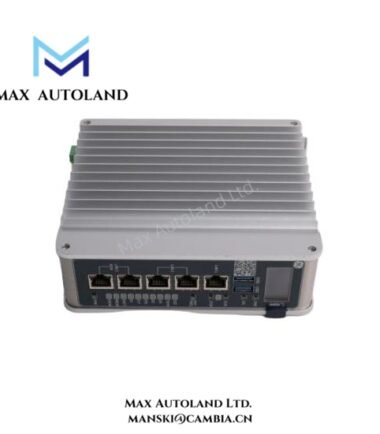

Overview
Specification
| Category | Specification |
|---|---|
| Dimensions (H x W x D) | 203.5 mm x 56.7 mm x 153.6 mm |
| Operating System | PACSystems: VxWorks; PACEdge: Linux |
| Power Input | 18–30 VDC, Max 20 W |
| Memory | PACSystems: 64 MB RAM, 64 MB Flash; PACEdge: 2 GB RAM, 50 GB SSD |
| Auxiliary Storage | PACEdge: 1x USB 3.0 |
| Firmware Upgrade | Secure web page |
| Display | OLED display for module status and diagnostics |
| Communication LAN | LAN1: 10/100/1000 Mbps (unswitched RJ-45) |
| LAN2 & LAN3: 10/100/1000 Mbps (switched RJ-45) | |
| Serial Port | 1x RS-232 |
| Ethernet Protocols | SRTP, Modbus TCP, EGD, HART passthrough, PROFINET, OPC-UA Server, DNP3.0 |
| Redundancy Support | Media Redundancy Protocol (MRP), PROFINET System Redundancy (PNSR), OPC UA Non-Transparent Server |
| Program Storage | Energy Pack: IC695ACC403, 5-year life expectancy |
| Temperature Range | Operating: -40 °C to 70 °C; Storage: -40 °C to 85 °C |
| Environmental Compliance | IEC/EN 61131-2, IEC 60068 series, CE, EMC, ATEX |
| Vibration & Shock | IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock) |
| Security Features | Secure boot, Trusted Platform Module, encrypted firmware updates |
| Industrial Application | Water/wastewater, chemical, oil & gas, automotive, discrete manufacturing, modular machines |
FAQ
Q1: Can IC695CPL410 run edge analytics without affecting real-time control?
A1: Yes, PACEdge software runs concurrently with deterministic control without interference.
Q2: Does this module support high-speed PROFINET communication?
A2: Yes, it supports I/O update rates as fast as 1 ms for up to 64 devices.
Q3: How is program and data backup handled?
A3: A hot-swappable energy pack ensures program and data retention for up to 5 years.
Q4: Is the module secure against cyber threats?
A4: Yes, it includes secure boot, TPM, and encrypted firmware updates for industrial cybersecurity.
