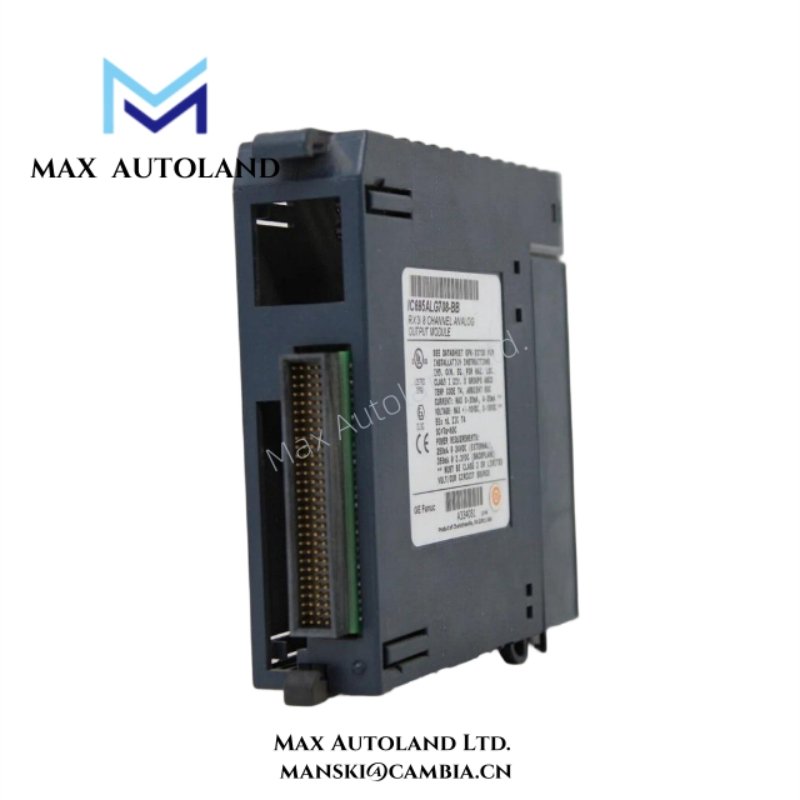

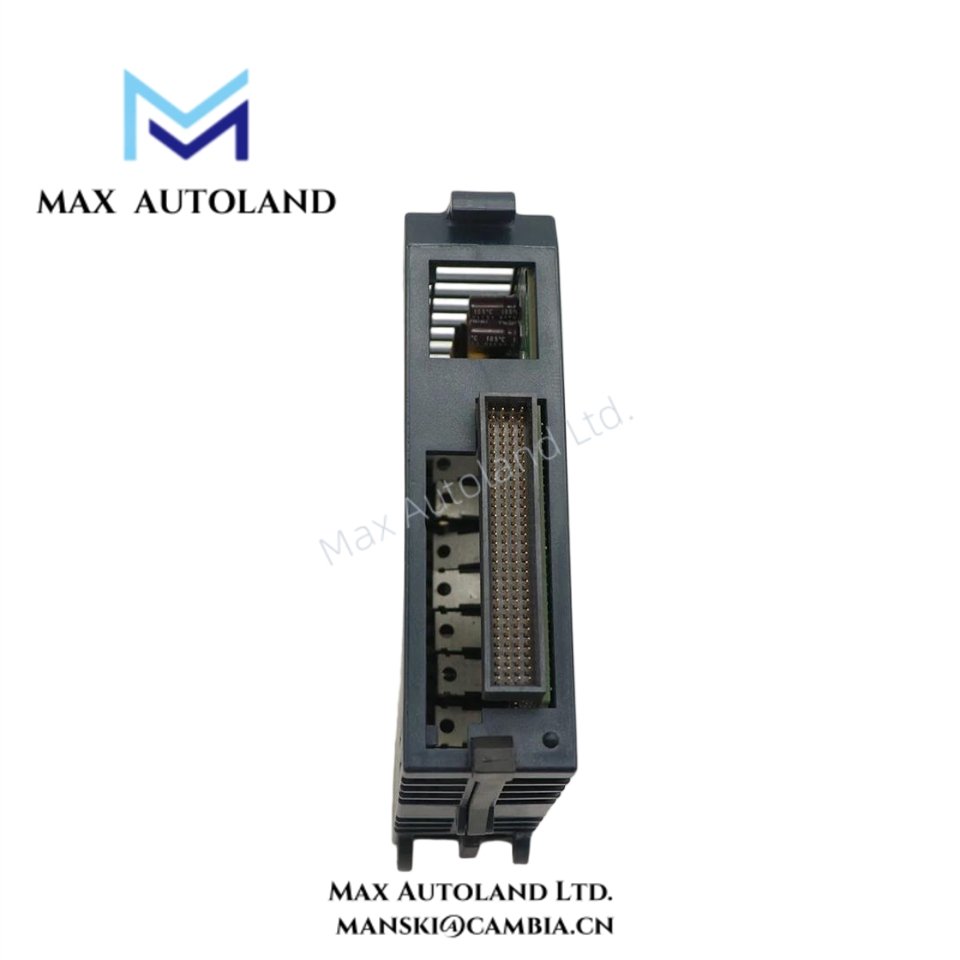

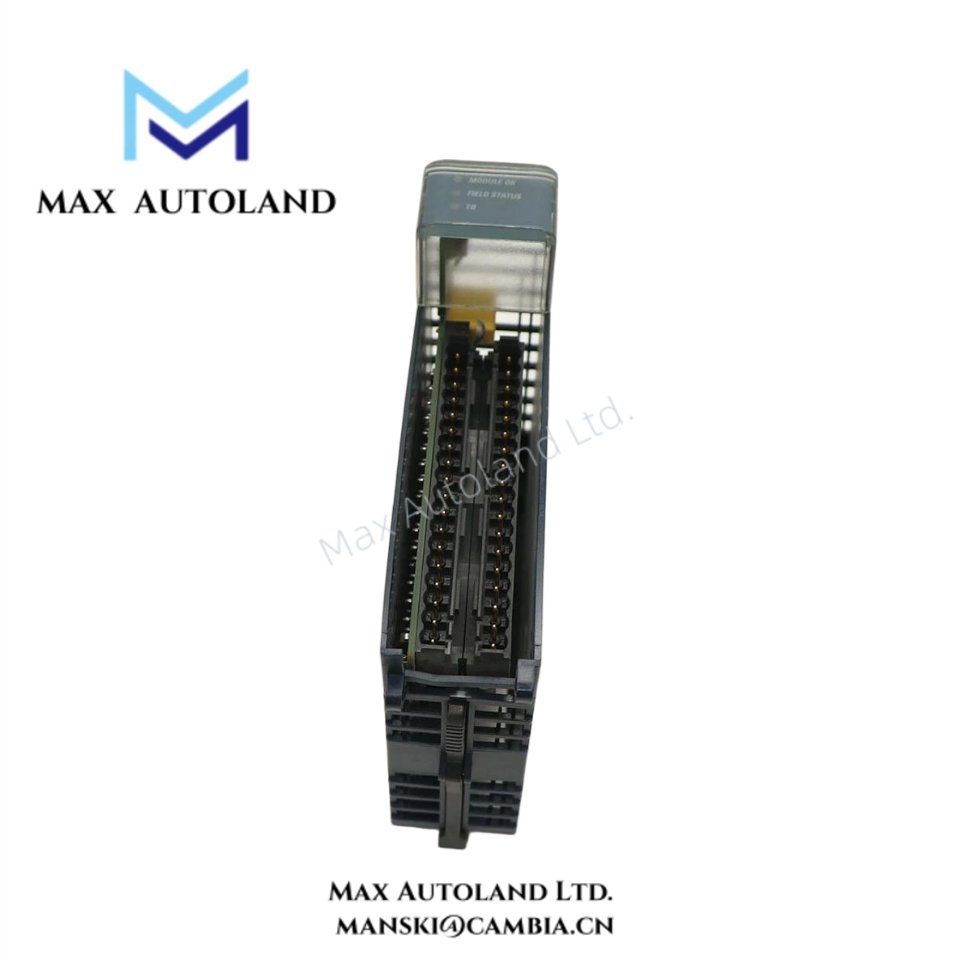

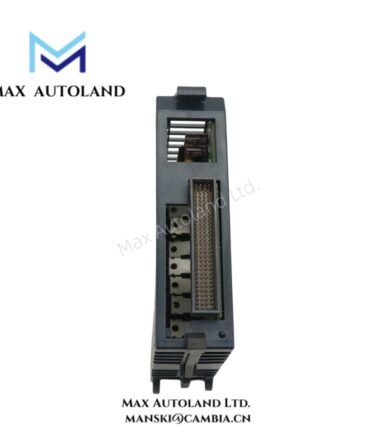

Specification
| Parameter | Specification / Details |
|---|---|
| Module Type | Analog Output Module |
| Series / Platform | GE Rx3i PACSystems |
| Number of Channels | 8 analog output channels |
| Output Signal Types | Voltage and Current |
| Voltage Output Range | ±10 V |
| Current Output Range | 0–20 mA, 4–20 mA |
| Output Resolution | 16-bit |
| Accuracy | ±0.05% of full scale |
| Linearity | ±0.01% |
| Update Rate | 1 ms typical per channel |
| Load Impedance | Voltage: ≥2 kΩ; Current: ≤500 Ω |
| Isolation | Channel-to-channel and channel-to-backplane |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -40–85°C (-40–185°F) |
| Relative Humidity | 5–95% non-condensing |
| Mounting | Rx3i I/O rack, hot-swappable |
| Status Indicators | LED indicators for channel status and diagnostics |
| Diagnostic Features | Output range error, channel failure detection, backplane communication error logging |
| Power Requirements | Supplied by backplane: 5 VDC, typical current 200 mA |
| Shock / Vibration Resistance | IEC 60068-2-6, IEC 60068-2-27 compliant |
| Certifications | CE, UL, CSA |
| Module Dimensions | 12.7 mm (W) x 100 mm (H) x 130 mm (D) |
| Weight | Approx. 200 g |
| Typical Applications | Process control, actuator management, energy systems, industrial automation |
FAQ
Q1: How many analog output channels does the IC695ALG708 support?
A1: It supports 8 analog output channels with high 16-bit resolution.
Q2: What output signal types are supported?
A2: The module outputs both voltage (±10 V) and current (0–20 mA, 4–20 mA) signals.
Q3: Can the module be replaced while the system is running?
A3: Yes, it supports hot-swappable installation without process interruption.
Q4: What diagnostics are available on this module?
A4: It provides LED status indicators, output range error detection, and backplane communication monitoring.
Q5: What environmental conditions can the module operate under?
A5: It operates in temperatures from 0–60°C with 5–95% non-condensing humidity and withstands typical industrial vibration.
Q6: Is the IC695ALG708 compatible with other PACSystems modules?
A6: Yes, it integrates seamlessly with Rx3i I/O racks and PACSystems controllers for scalable automation.
