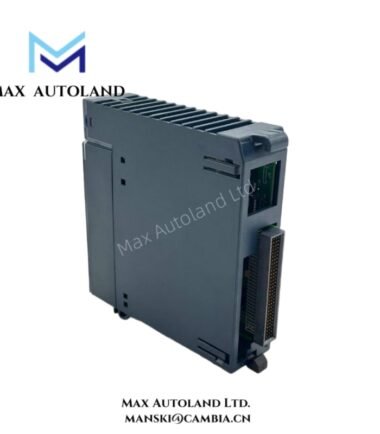

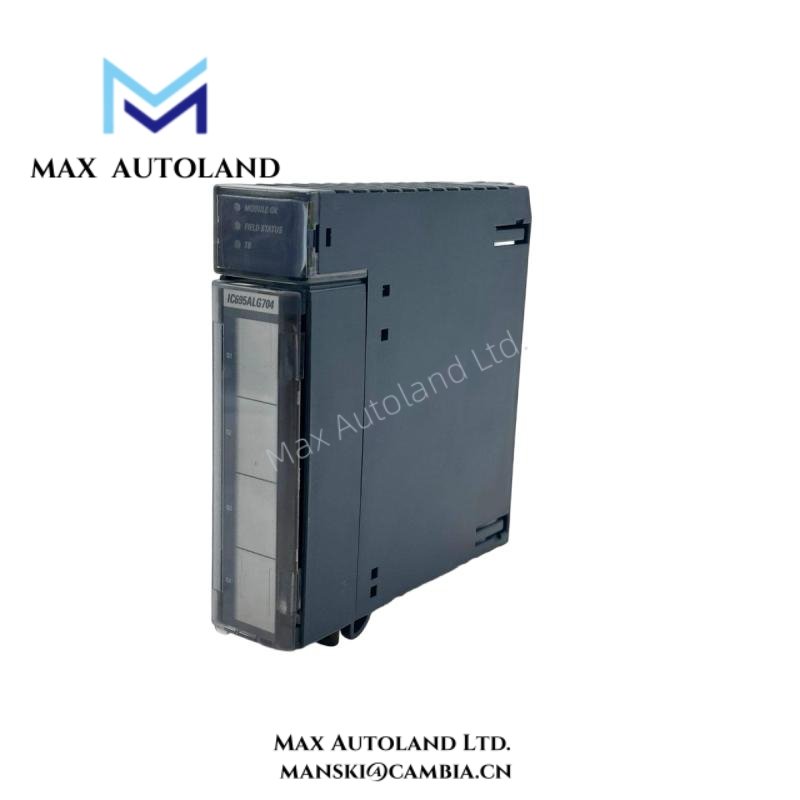

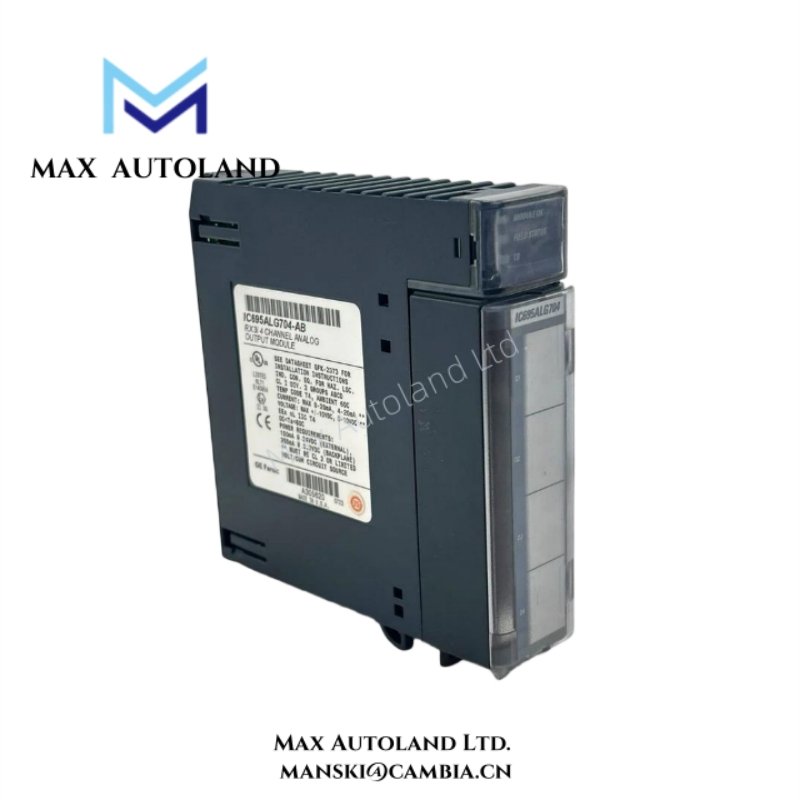

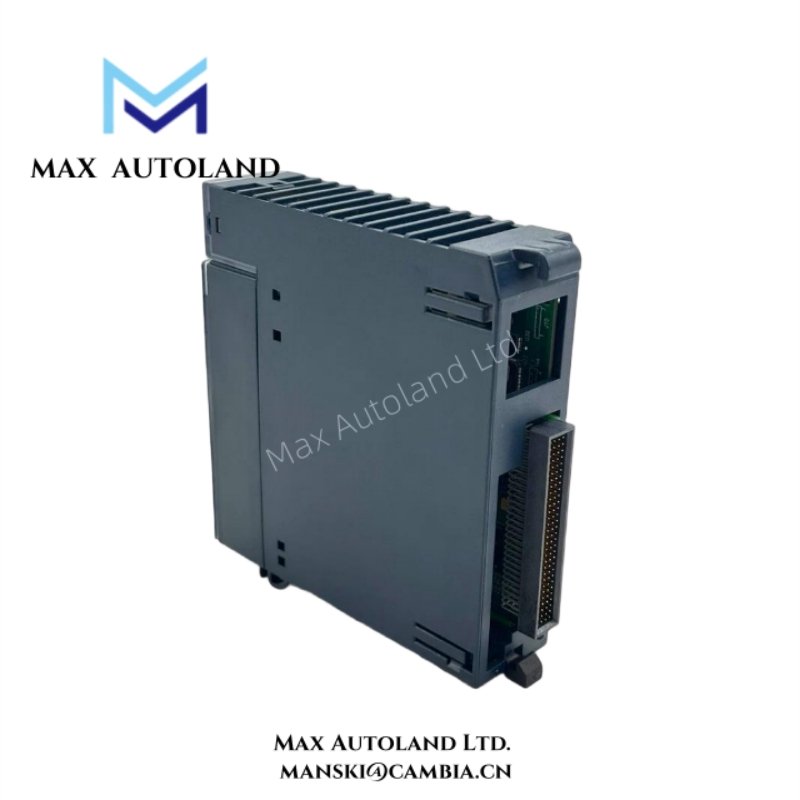

Overview
Specification
| Parameter | Specification |
|---|---|
| Module Type | 4-Channel Analog Output Module |
| Analog Output Range | ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit (65,536 discrete steps) |
| Accuracy | ±0.05% of full scale |
| Output Update Rate | 1 ms per channel |
| Settling Time | < 1 ms to 0.1% full scale |
| Output Isolation | Channel-to-channel: 500 V RMS, Channel-to-system: 500 V RMS |
| Load Impedance | Voltage output: ≥2 kΩ; Current output: 500 Ω max |
| Linearity | ±0.02% of full scale |
| Temperature Coefficient | <50 ppm/°C |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Supply Voltage | 5 VDC from backplane |
| Power Consumption | <2 W per module |
| Dimensions (HxWxD) | 130 mm x 25 mm x 115 mm |
| Weight | ~0.25 kg |
| Mounting | Standard Rx3i rack backplane |
| Certifications | UL, CE, CSA |
| Diagnostics | Channel status indicators, fault detection for each output |
| Environmental Compliance | RoHS compliant, designed for industrial temperature and humidity ranges |
| Recommended Maintenance | Periodic inspection, proper ventilation, and firmware updates if applicable |
FAQ
A1: It provides four high-resolution analog output channels suitable for voltage and current signals.
Q2: What types of signals are supported by this module?
A2: The module supports ±10 V, 0–20 mA, and 4–20 mA analog signals for flexible process control.
Q3: Can this module operate in high-temperature environments?
A3: Yes, it operates reliably between 0°C and 60°C and withstands storage temperatures up to 85°C.
Q4: How does the module assist in system diagnostics?
A4: Built-in diagnostics monitor channel status and detect faults, enabling quick troubleshooting.
Q5: Is it compatible with existing Rx3i PLC racks?
A5: Yes, it seamlessly integrates with all standard Rx3i backplanes and supports modular system expansion.
