Overview
Specification
| Parameter | Specification / Details |
|---|---|

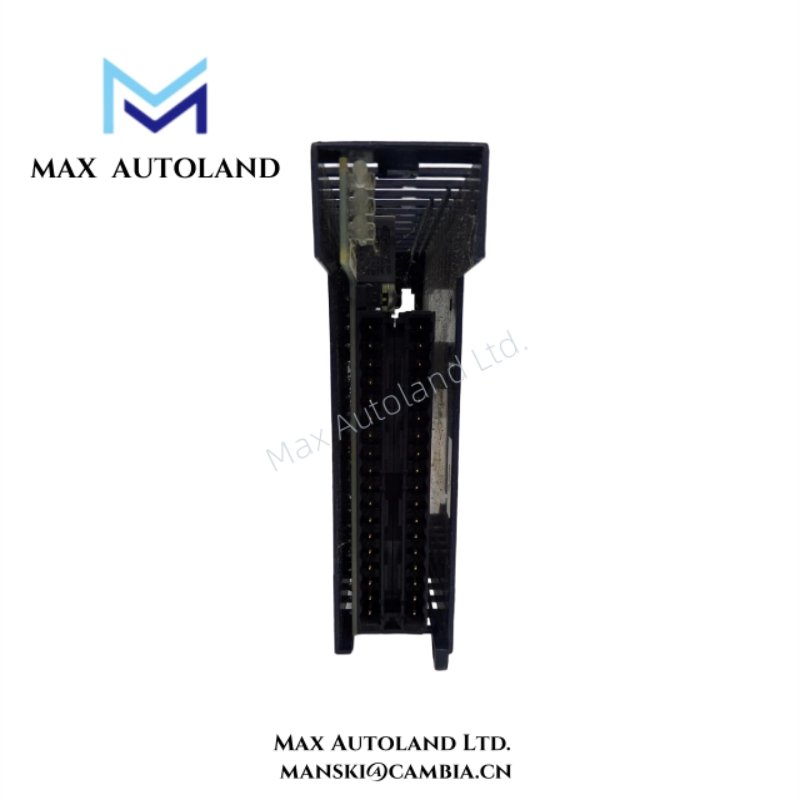

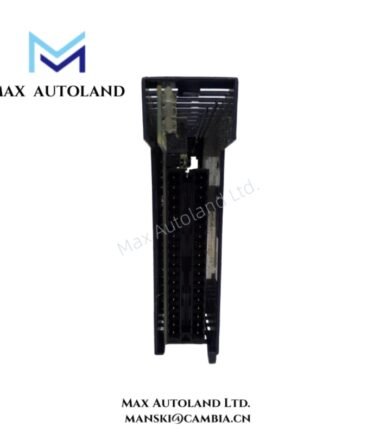

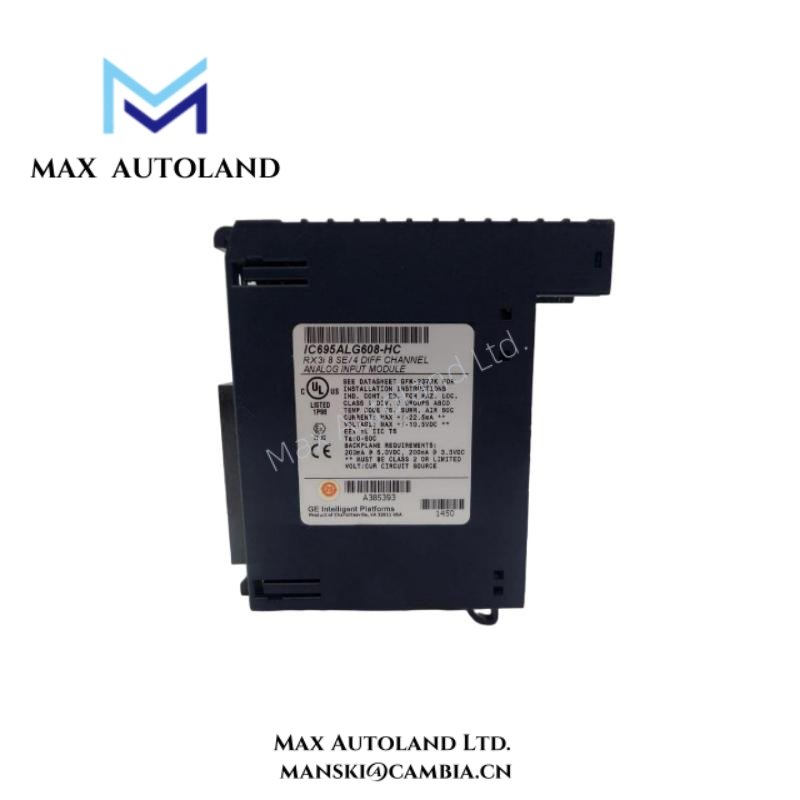

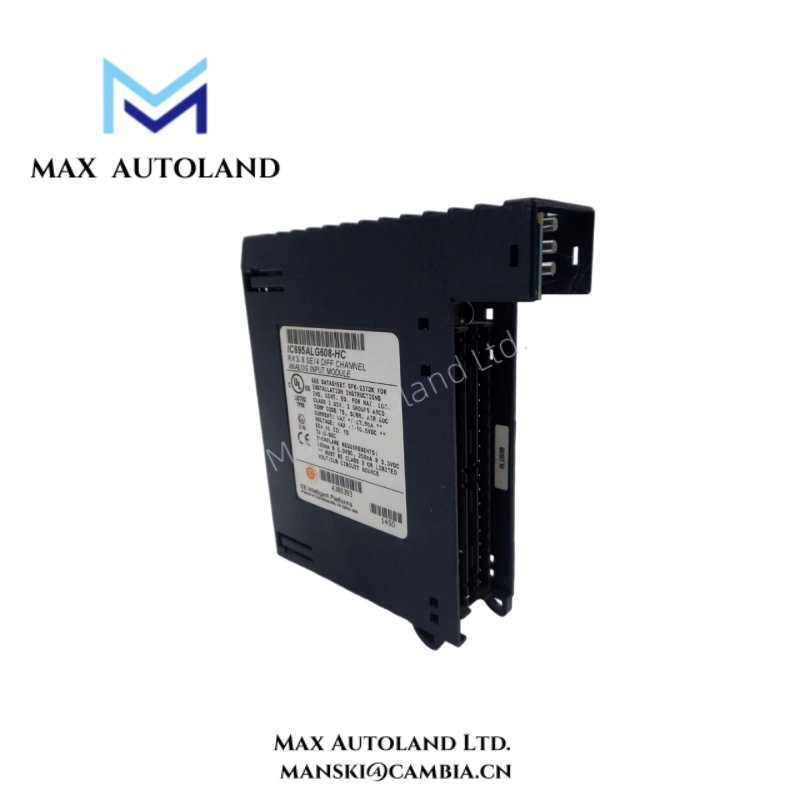

| Module Type | Analog Input Module |
| Series / Platform | GE Rx7i PACSystems |
| Number of Channels | 8 differential analog input channels |
| Input Signal Types | Voltage and Current |
| Voltage Input Range | ±10 V |
| Current Input Range | 0–20 mA, 4–20 mA |
| Input Impedance | Voltage: 10 MΩ; Current: 100 Ω |
| Resolution | 16-bit |
| Accuracy | ±0.05% of full scale |
| Linearity | ±0.01% |
| Conversion Time | 1 ms typical per channel |
| Noise Rejection | >80 dB at 50/60 Hz |
| Isolation | Channel-to-channel and channel-to-backplane |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -40–85°C (-40–185°F) |
| Relative Humidity | 5–95% non-condensing |
| Mounting | Rx7i I/O rack, hot-swappable |
| Status Indicators | LED indicators for channel status and diagnostics |
| Diagnostic Features | Input range error, channel failure detection, backplane communication error logging |
| Power Requirements | Supplied by backplane: 5 VDC, typical current 150 mA |
| Shock / Vibration Resistance | IEC 60068-2-6, IEC 60068-2-27 compliant |
| Certifications | CE, UL, CSA |
| Module Dimensions | 12.7 mm (W) x 100 mm (H) x 130 mm (D) |
| Weight | Approx. 200 g |
| Typical Applications | Process monitoring, industrial automation, energy management, factory production |
FAQ
Q1: What types of signals can the IC695ALG608 handle?
A1: The module supports both voltage (±10 V) and current (0–20 mA, 4–20 mA) analog signals.
Q2: How many input channels does the IC695ALG608 provide?
A2: It offers 8 differential analog input channels for precise measurement.
Q3: Can the module be replaced while the system is running?
A3: Yes, the IC695ALG608 supports hot-swappable installation without powering down the system.
Q4: What diagnostic features are available?
A4: The module provides channel status LEDs, input range error detection, and backplane communication error logging.
Q5: What environmental conditions can this module operate under?
A5: It operates reliably between 0–60°C with 5–95% non-condensing humidity and withstands typical industrial shock and vibration.
Q6: Is the IC695ALG608 compatible with other PACSystems modules?
A6: Yes, it integrates seamlessly with Rx7i I/O racks and other PACSystems modules for scalable automation solutions.
