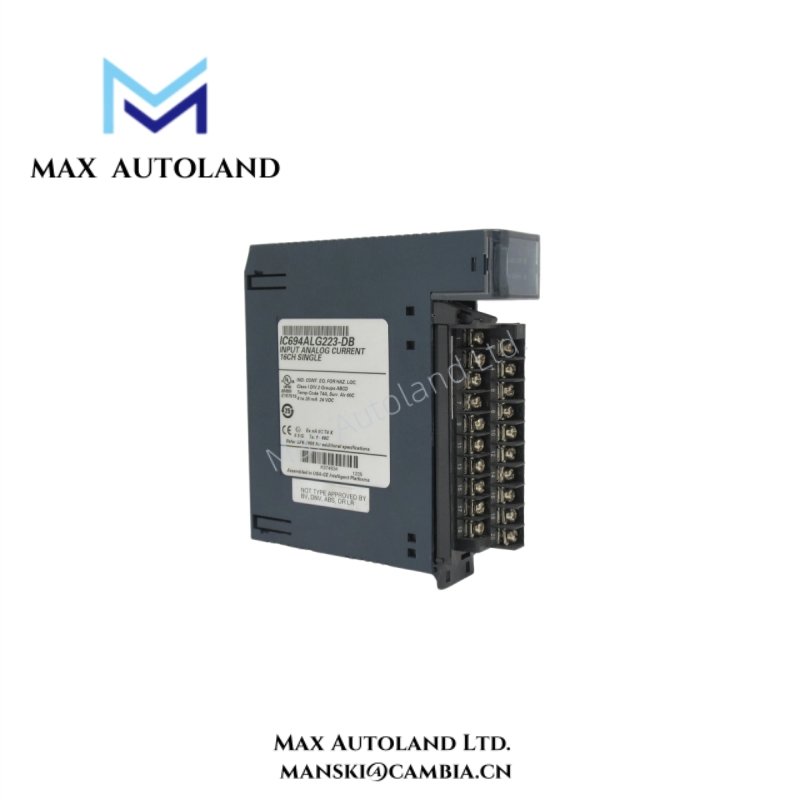

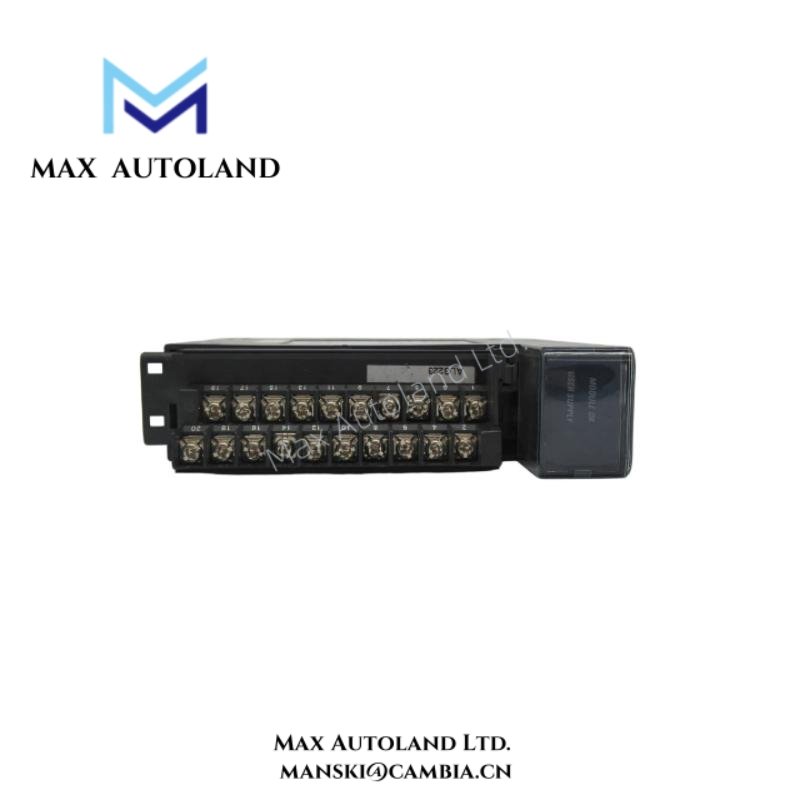

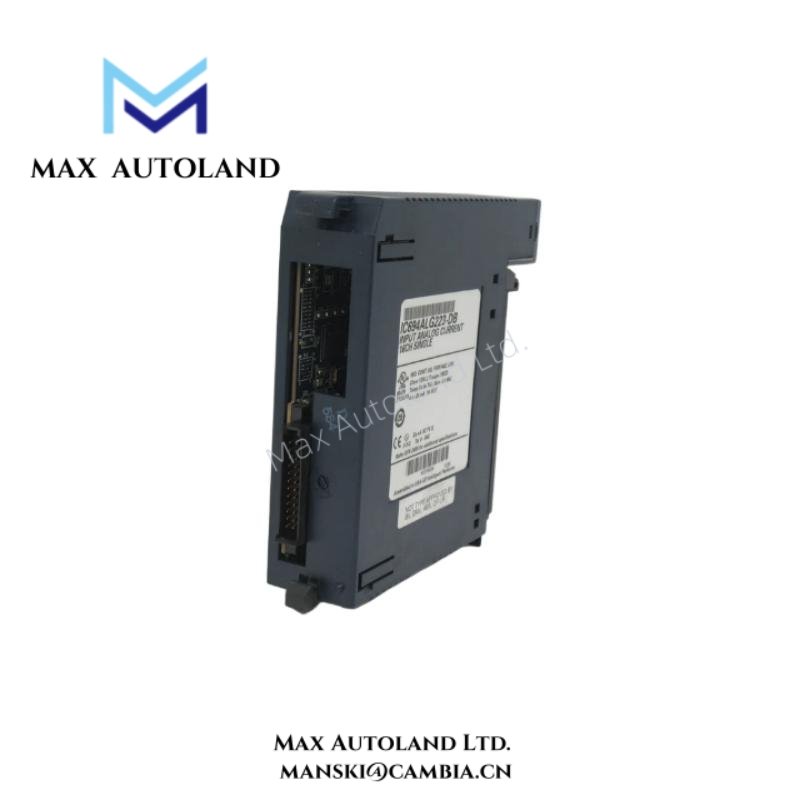

Overview
It enables engineers to acquire accurate data from multiple sensors, while also supporting critical process control applications efficiently.
Moreover, IC694ALG223 integrates seamlessly with the RX3i backplane, and therefore ensures reliable signal transmission and low-latency communication.
In addition, this module provides multiple input channels with configurable ranges, which makes it ideal for complex industrial environments.
Furthermore, its flexible design allows easy system expansion, so engineers can achieve consistent measurements, precise control, and simplified scalability.
Consequently, operators benefit from enhanced performance and predictable system behavior under demanding conditions.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Manufacturer | Brand | GE Automation |
| Model | Product Number | IC694ALG223 |
| Module Type | Function | Analog Input Module |
| System Compatibility | Controller | PACSystems RX3i PLC |
| Input Channels | Quantity | 8 differential or 16 single-ended channels |
| Input Range | Voltage | ±10 V, ±5 V, 0–10 V, 0–5 V selectable |
| Input Range | Current | 0–20 mA, 4–20 mA selectable |
| Resolution | Analog Conversion | 16-bit ADC for precise measurements |
| Sampling Rate | Max | 500 µs per channel |
| Isolation | Channel-to-Backplane | 1500 Vrms optical isolation |
| Accuracy | Typical | ±0.05% of full scale |
| Linearity | Typical | ±0.02% |
| Temperature Drift | Max | ±50 ppm/°C |
| Response Time | Typical | 1 ms per channel |
| Communication | Backplane Interface | RX3i high-speed data bus |
| Power Requirements | Voltage | +5 VDC from backplane |
| Power Requirements | Consumption | 2.5 W typical |
| Mechanical | Dimensions | 130 mm × 30 mm × 115 mm |
| Mechanical | Weight | 0.45 kg (approx. 1 lb) |
| Environmental | Operating Temperature | 0–60 °C |
| Environmental | Storage Temperature | –40–85 °C |
| Environmental | Humidity | 5–95% non-condensing |
| Certifications | Standards | UL, CE approved |
| Reliability | MTBF | >80,000 hours under rated conditions |
FAQ
A1: IC694ALG223 supports 8 differential or 16 single-ended analog input channels.
Q2: What input ranges are supported?
A2: It supports ±10 V, ±5 V, 0–10 V, 0–5 V for voltage, and 0–20 mA or 4–20 mA for current.
Q3: What is the conversion resolution of this module?
A3: It features a 16-bit ADC, providing high-precision measurements across all input channels.
Q4: What are the operating environmental conditions?
A4: Safe operation occurs from 0–60 °C with 5–95% non-condensing humidity.
Q5: What is the shipping and return policy?
A5: Stock is available, shipping occurs within 3 days–2 weeks depending on order size. Returns are supported within 30 days for quality issues.
