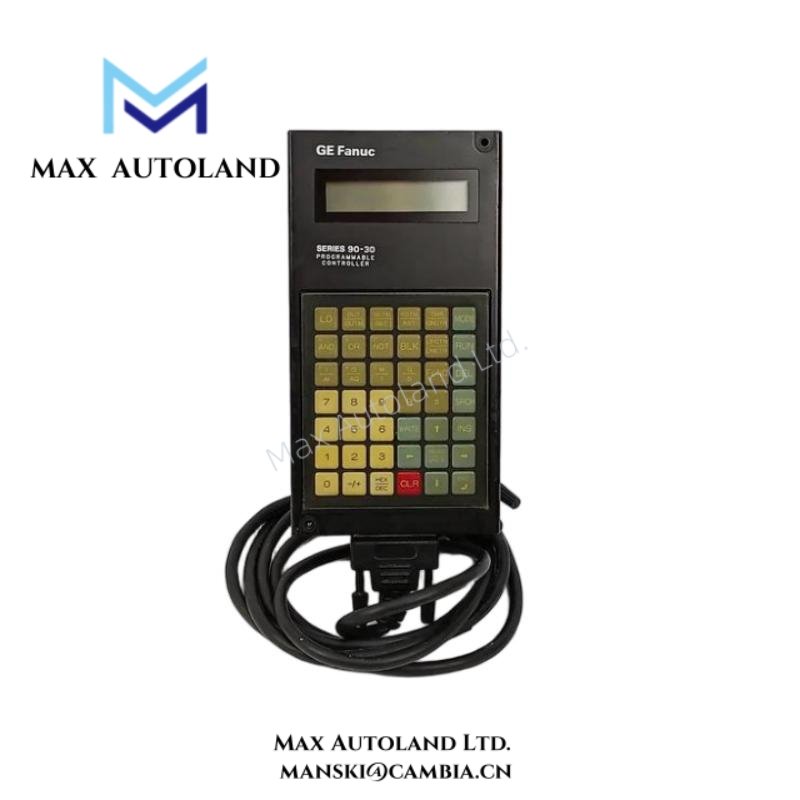

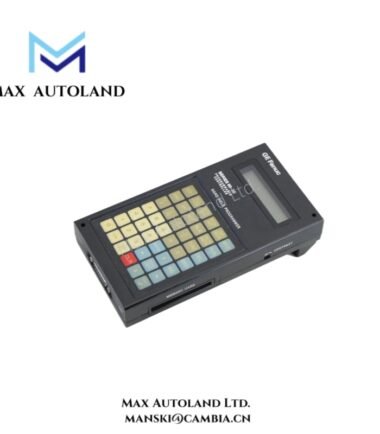

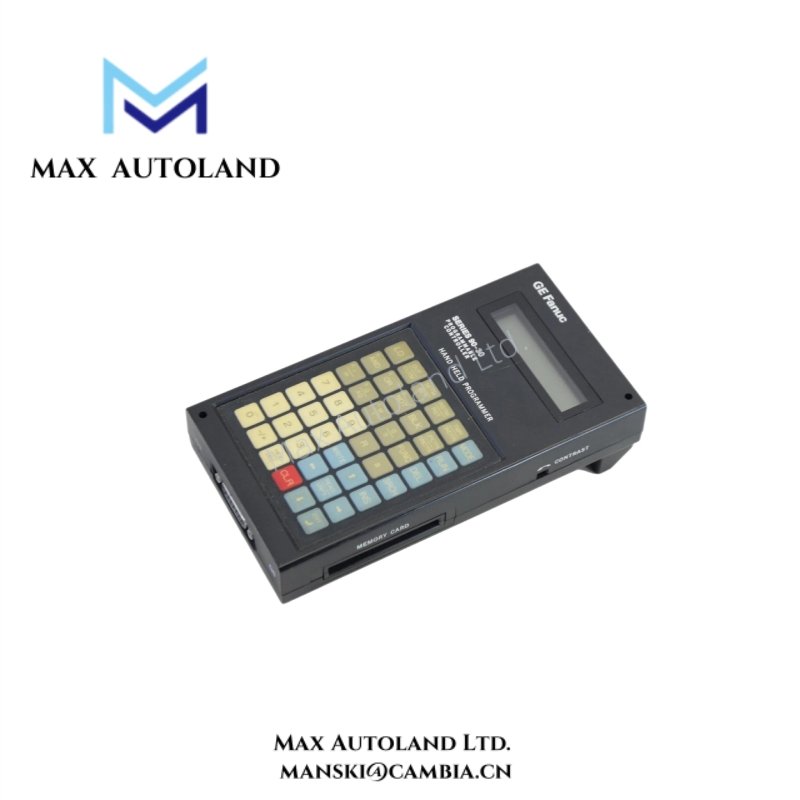

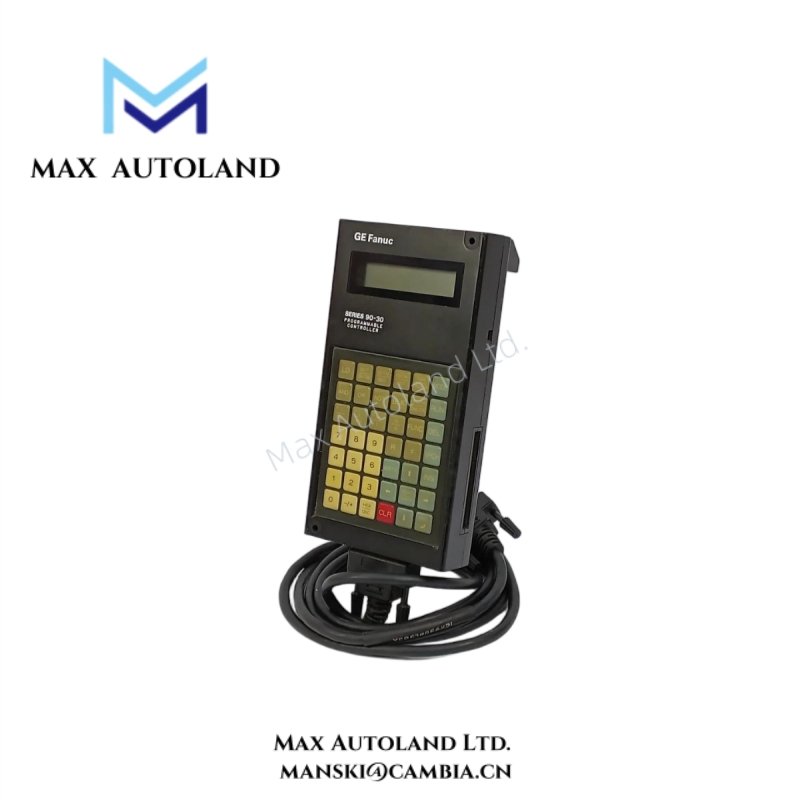

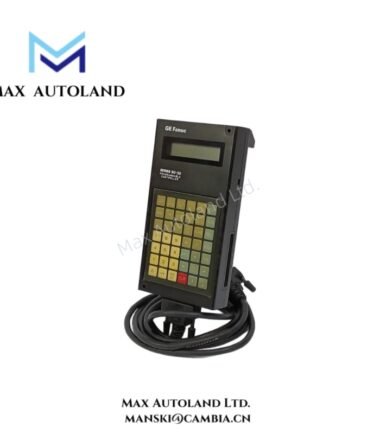

Overview
It features a compact, ergonomic design that allows engineers to program PLCs directly at the installation site.
Moreover, the device supports offline and online program editing for efficient system commissioning.
Engineers benefit from fast navigation through ladder logic, configuration data, and diagnostic menus.
Therefore, PLC deployment and maintenance tasks are simplified, reducing setup time and potential errors.The programmer is compatible with multiple Series 90-30 modules, supporting memory backup and firmware updates.
In addition, it offers reliable data transfer via serial connection to ensure accurate programming results.
Specification
| Parameter | Specification |
|---|---|
| Model Number | IC693PRG300 |
| Manufacturer | GE |
| Device Type | Hand Held Programmer for PLC |
| Compatible Series | Series 90-30 PLC Modules |
| Programming Language | Ladder Logic (LD), Configuration Data Entry |
| Display | LCD with backlight, 16 × 2 character display |
| Keypad | 32-key tactile keypad for navigation and editing |
| Memory | Supports PLC program memory read/write |
| Data Transfer | RS-232 serial connection to Series 90-30 PLCs |
| Power Supply | Powered from PLC module or external 9–12 V DC adapter |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | –20°C to +70°C (–4°F to 158°F) |
| Dimensions | 210 × 95 × 40 mm |
| Weight | Approximately 0.5 kg |
| Environmental Protection | Rugged plastic housing for industrial use |
| Certifications | UL, CE compliant |
| Application Scope | Programming, configuration, diagnostics, maintenance, firmware updates |
FAQ
A1: It is compatible with GE Series 90-30 PLC modules, including CPUs and I/O expansions.Q2: Can this device operate independently without a PC?
A2: Yes, it allows offline programming, editing, and diagnostics directly on the handheld unit.Q3: What communication interface does it use for programming?
A3: The programmer uses an RS-232 serial connection for data transfer with Series 90-30 PLCs.
Q4: Does it support program backup and restoration?
A4: Yes, it can read, write, and backup PLC programs to ensure secure configuration.
Q5: Is it suitable for harsh industrial environments?
A5: Yes, the rugged plastic housing provides protection and durability for industrial use.
