Overview
Engineers use this module to integrate distributed I/O and intelligent field devices efficiently.

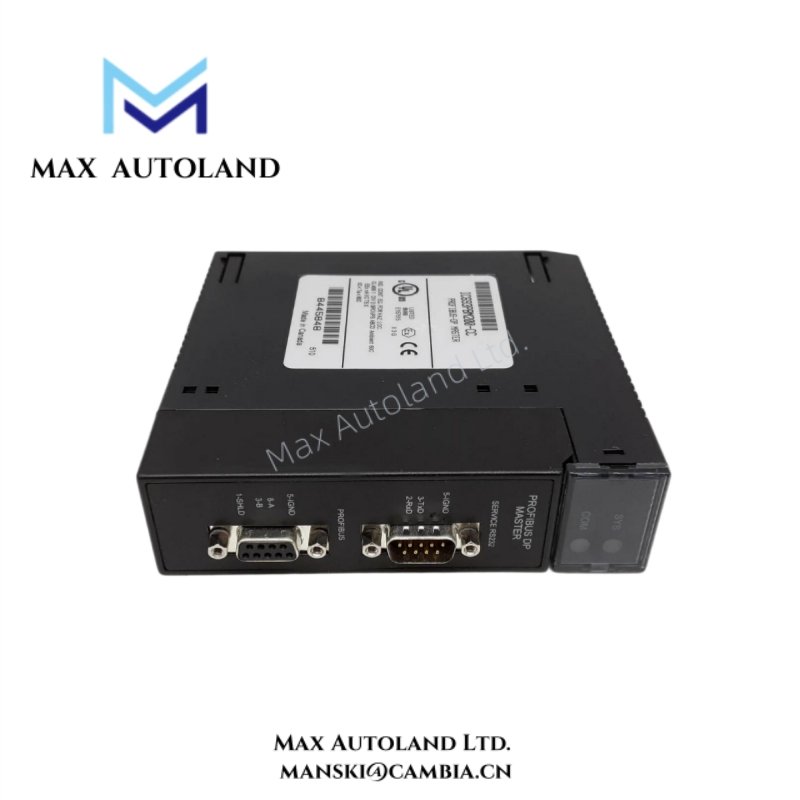

The IC693PBM200 manages cyclic data exchange between the PLC CPU and PROFIBUS DP slaves.
Therefore, it supports deterministic communication in time-critical automation applications.
This module installs directly into a Series 90-30 rack slot.
Moreover, it operates seamlessly with compatible GE CPUs and system configurations.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | GE Fanuc Automation |
| Model Number | IC693PBM200 |
| Product Type | PROFIBUS DP Master Communication Module |
| Series Compatibility | Series 90-30 PLC Platform |
| PROFIBUS Standard | DP-V0 compliant |
| Master Class | Class 1 DP Master |
| Network Protocol | PROFIBUS DP |
| Physical Interface | RS-485 |
| Connector Type | 9-pin D-sub female PROFIBUS connector |
| Supported Baud Rates | 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps |
| Maximum Network Distance | Up to 1200 m (depending on baud rate and cable type) |
| Maximum Number of Slaves | Up to 125 PROFIBUS DP slave devices (network dependent) |
| Data Exchange Mode | Cyclic I/O data exchange |
| Diagnostic Support | Extended slave diagnostics and network status reporting |
| Addressing Range | 0–125 configurable slave addresses |
| Configuration Method | Software configuration via GE programming tools |
| Backplane Power Requirement | 5 VDC supplied by Series 90-30 rack |
| Typical Current Consumption | Approx. 400–500 mA from backplane |
| Isolation | Electrically isolated communication interface |
| Status Indicators | LED indicators for Module Status, Network Status, and Activity |
| Mounting Method | Installs into standard Series 90-30 rack slot |
| Form Factor | Single-width Series 90-30 module |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | –40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | Designed for industrial control cabinet environments |
| Shock Resistance | Meets PLC mechanical durability standards |
| Approximate Dimensions (H × W × D) | 127 mm × 38 mm × 140 mm |
| Approximate Weight | 0.45–0.6 kg |
| Application Scope | Distributed I/O, drive integration, intelligent field device networking |
FAQ
Q1: Is the IC693PBM200 brand new and original?
Yes, we supply brand-new original factory modules with verified authenticity.
Q2: Do you keep IC693PBM200 in stock?
We maintain available inventory, and most orders ship directly from stock.
Q3: How quickly can you ship?
We ship within 3 days to 2 weeks depending on order size.
Q4: Which logistics carriers do you use?
We commonly use DHL and other major international courier services.
Q5: What baud rates does IC693PBM200 support?
It supports PROFIBUS DP speeds from 9.6 kbps up to 12 Mbps.
