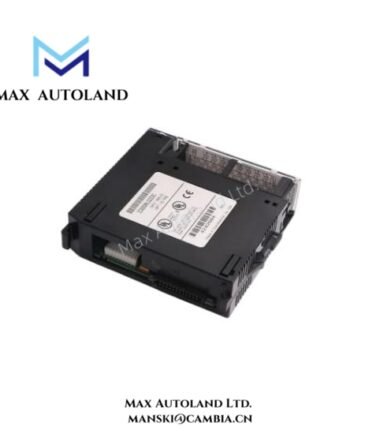

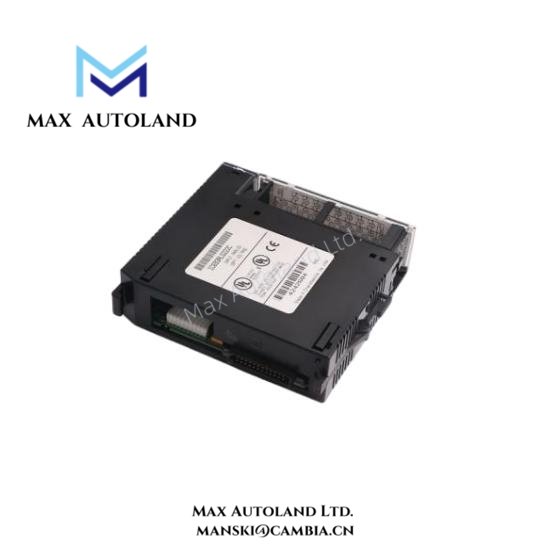

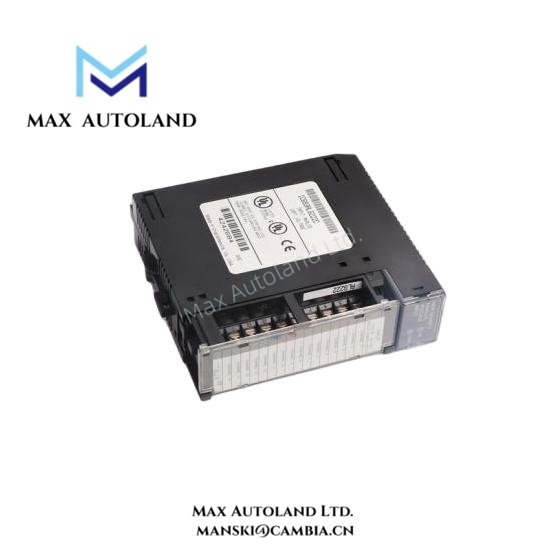

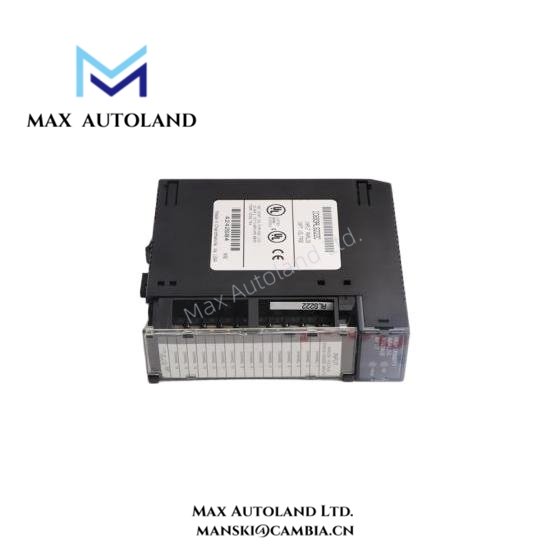

Overview
It provides sixteen independent voltage input channels for accurate monitoring of industrial analog field signals.
Moreover, engineers rely on this module when applications demand stable, repeatable, and noise-resistant voltage measurements.
This module integrates directly into Series 90-30 baseplates without requiring external signal conditioning hardware.
Therefore, installation remains efficient while maintaining reliable analog signal conversion performance.
Its high channel density supports complex systems requiring multiple voltage input monitoring points.
Specification
| Category | Parameter | Specification |
|---|---|---|
| General Information | Model Number | IC693ALG222 |
| Product Type | Analog Voltage Input Module | |
| Series Compatibility | GE Series 90-30 PLC Systems | |
| Slot Requirement | 1 Slot in Series 90-30 Baseplate | |
| Backplane Interface | Standard Series 90-30 I/O Bus | |
| Input Configuration | Number of Channels | 16 Single-Ended Analog Inputs |
| Supported Input Types | Voltage Inputs | |
| Voltage Range (Selectable) | 0 to +10 V DC | |
| Secondary Voltage Range | –10 to +10 V DC | |
| Maximum Input Voltage | ±15 V DC Absolute Maximum | |
| Input Impedance | > 100 kΩ (per channel) | |
| Input Filtering | Internal Digital Filtering | |
| Conversion & Performance | Analog Resolution | 12-Bit A/D Converter |
| Total Update Time | ~8 ms for All Channels | |
| Typical Accuracy | ±0.25 % of Full Scale | |
| Nonlinearity | < 1 LSB (Least Significant Bit) | |
| Channel Crosstalk | Negligible due to Isolation | |
| Electrical Characteristics | Backplane Power Supply | 5 V DC from Baseplate |
| Typical Power Consumption | 150–200 mA @ 5 V DC | |
| Isolation | Backplane Isolation from Field Inputs | |
| Input Protection | Overvoltage Protection to ±15 V DC | |
| Indicators & Diagnostics | Status LEDs | Module Operational and Fault Indicators |
| Channel Monitoring | Channel Activity Indication via PLC Diagnostics | |
| Environmental Conditions | Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) | |
| Relative Humidity | 5–95 %, Non-Condensing | |
| Vibration Resistance | Industrial Control Panel Rating | |
| Mechanical Characteristics | Mounting Style | Baseplate Mounted |
| Module Width | Standard Series 90-30 Width | |
| Construction | Industrial-Grade Electronics | |
| Compliance & Standards | Certifications | Designed for UL and CE Compliance (System Dependent) |
| Application Environment | Industrial Automation and Process Control |
FAQ
A1: The module accepts single-ended analog voltage signals within 0 to 10V DC and ±10V DC ranges.
Q2: How many input channels are available on this module?
A2: It provides sixteen independent analog voltage input channels within one baseplate slot.
Q3: Is the IC693ALG222 compatible with all Series 90-30 systems?
A3: Yes, it installs directly into standard GE Series 90-30 PLC baseplates.
Q4: What resolution does the analog conversion provide?
A4: The module uses 12-bit resolution for accurate and stable signal conversion.
Q5: Can this module operate reliably in industrial environments?
A5: Yes, it supports operation from 0°C to 60°C in typical industrial control panels.
