Overview

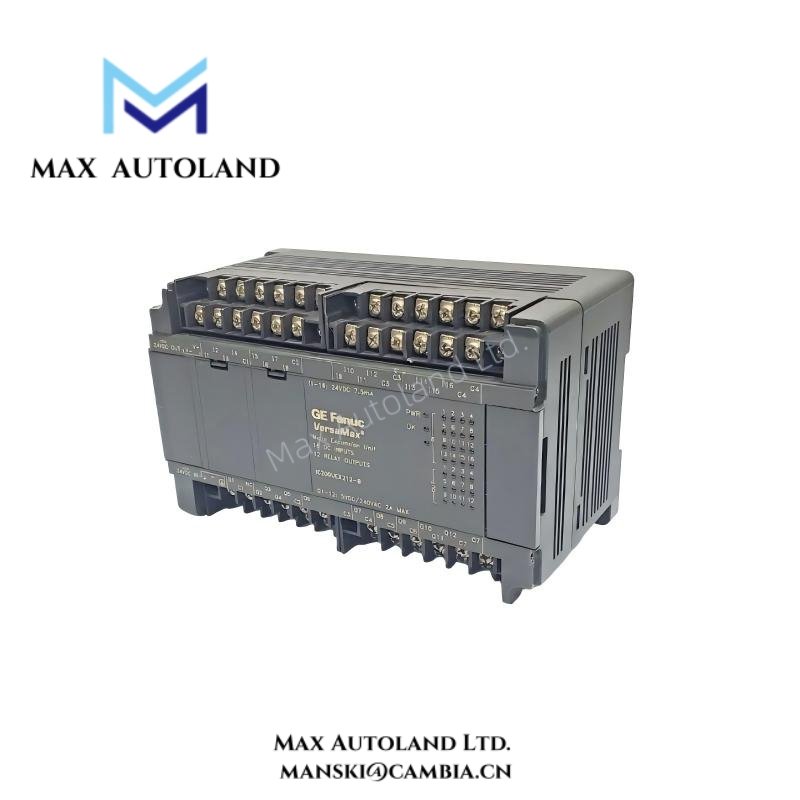

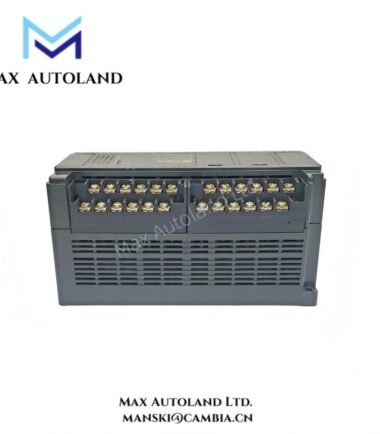

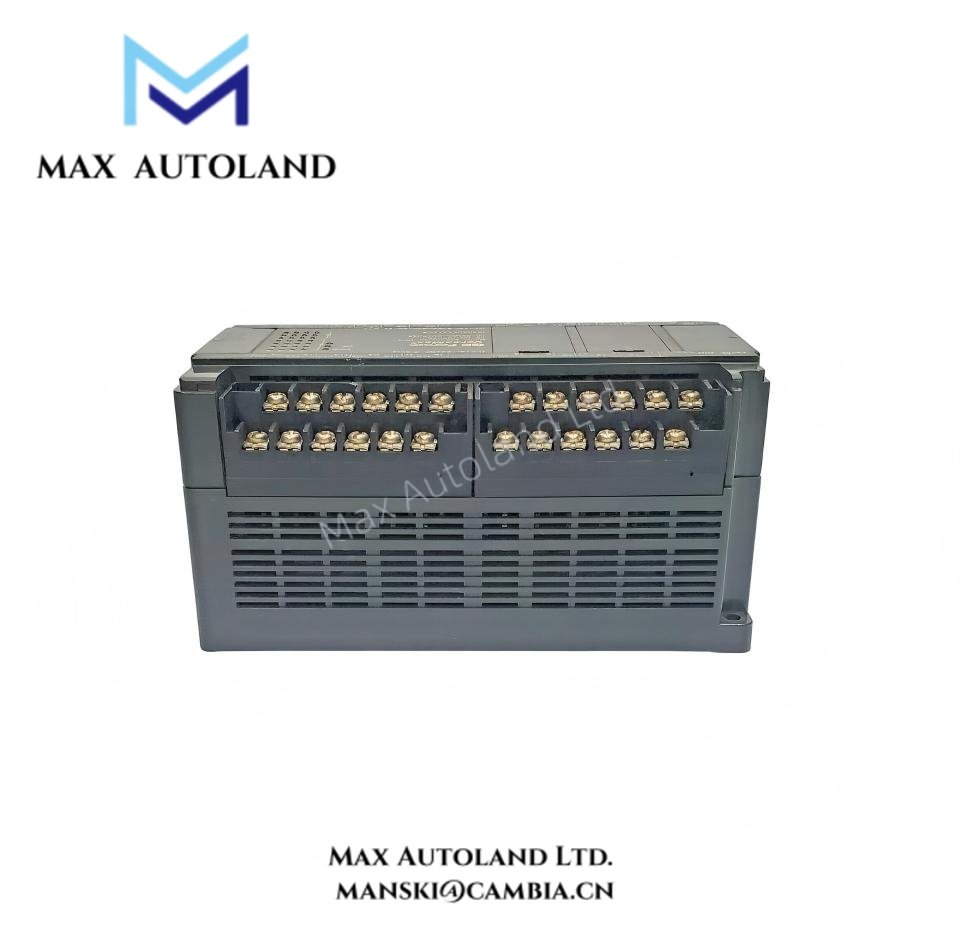

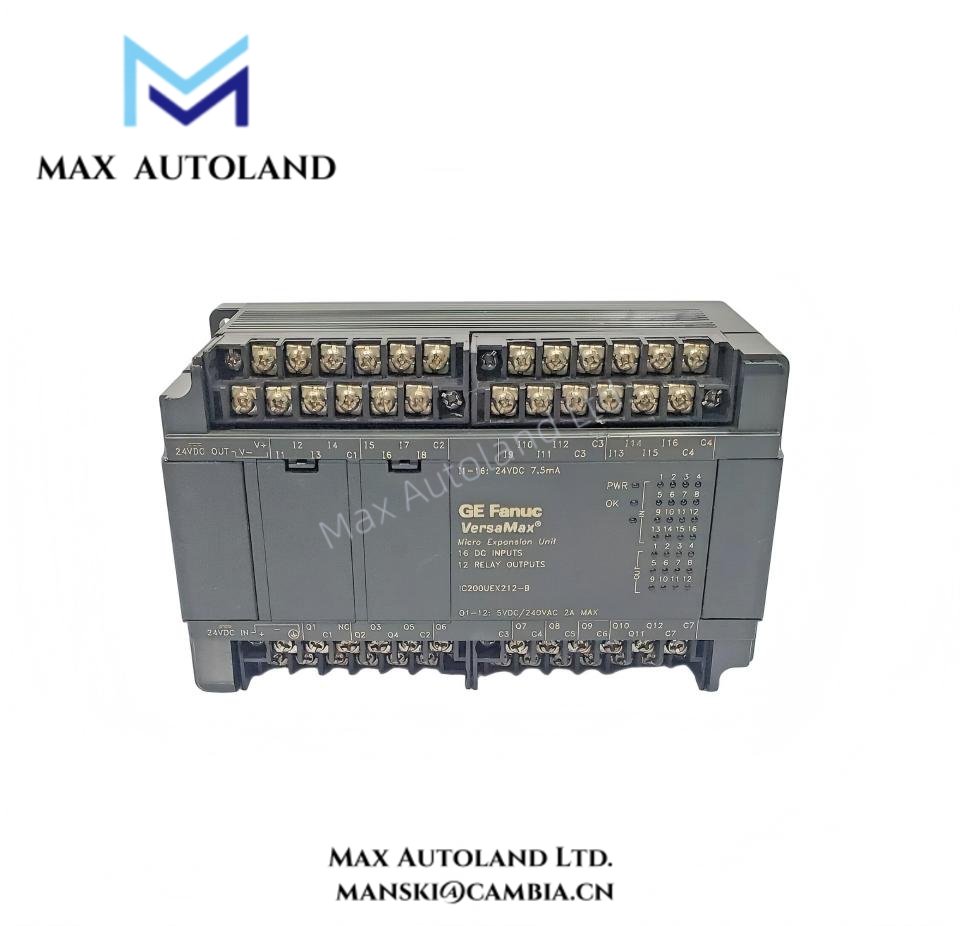

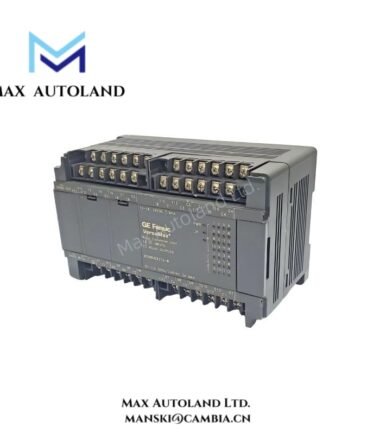

The IC200UEX212 is a powerful expansion unit designed for use with GE’s VersaMax Micro PLC.
It offers 16 I/O points for expanding system capacity in industrial automation applications.
Engineers use the IC200UEX212 to connect additional digital input and output modules to VersaMax CPUs.
This expansion module is essential for controlling more devices in manufacturing, packaging, and process industries.
Its 24 VDC operation and DIN rail mounting make installation efficient and space-saving.
The unit’s design provides high reliability with minimal wiring complexity.
Specification
| Category | Parameter | Specification |
|---|---|---|
| General Information | Manufacturer | GE Intelligent Platforms |
| Model Number | IC200UEX212 | |
| Module Type | Expansion Unit for VersaMax Micro PLC | |
| Application | I/O Expansion for small-scale automation systems | |
| I/O Configuration | Total I/O Points | 16 I/O points |
| Digital Inputs | 8 × 24 VDC, sink/source | |
| Digital Outputs | 8 × Relay (Form A) 24 VDC | |
| Relay Output Max Voltage | 30 VDC / 250 VAC | |
| Relay Output Max Current | 2 A per output (resistive load) | |
| Electrical Specifications | Power Supply Voltage | 24 VDC |
| Current Consumption | Approx. 100 mA | |
| Power Consumption | Approx. 2.4 W | |
| Input Response Time | 10 ms typical | |
| Output Response Time | 10 ms typical | |
| Backplane Communication | Integrated with VersaMax Micro PLC | |
| Mounting & Enclosure | Mounting Method | 35 mm DIN Rail |
| Dimensions (H × W × D) | 90 mm × 70 mm × 55 mm | |
| Weight | Approx. 0.35 kg | |
| Enclosure Material | Industrial-grade thermoplastic | |
| Environmental Conditions | Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 5–95% non-condensing | |
| Vibration Resistance | IEC industrial standard compliant | |
| Shock Resistance | Industrial-grade rated | |
| Compliance & Certifications | Certifications | CE, UL Listed |
| System Integration | Compatible Modules | Compatible with VersaMax Micro PLC and I/O modules |
| Expansion Capability | Supports local I/O expansion | |
| I/O Type Support | Digital Inputs and Relay Outputs | |
| Performance Features | Diagnostic LEDs | Power, Run, Fault, I/O Status indicators |
| Communication Ports | Integrated with VersaMax Micro PLC | |
| Applications | Typical Use Cases | Manufacturing, Packaging, Process Automation |
FAQ
Q1: Is the IC200UEX212 module new and original?
A1: Yes, the IC200UEX212 is brand new, factory-sealed, and genuine GE equipment.
Q2: Can I install this expansion unit on my existing VersaMax system?
A2: Yes, IC200UEX212 is designed for easy integration with VersaMax Micro PLC systems, expanding I/O capabilities.
Q3: How many digital inputs and outputs does it support?
A3: The module supports 8 digital inputs and 8 digital outputs (Form A relay).
Q4: What is the power requirement for the IC200UEX212?
A4: The IC200UEX212 operates on 24 VDC, drawing approximately 100 mA of current.
Q5: Does the unit support high-temperature environments?
A5: Yes, it operates in environments with temperatures between 0°C and 60°C, and can withstand storage temperatures from -40°C to 85°C.
