Overview

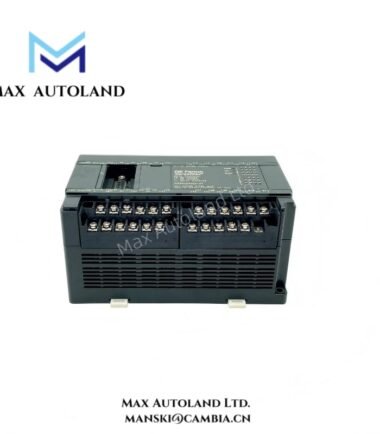

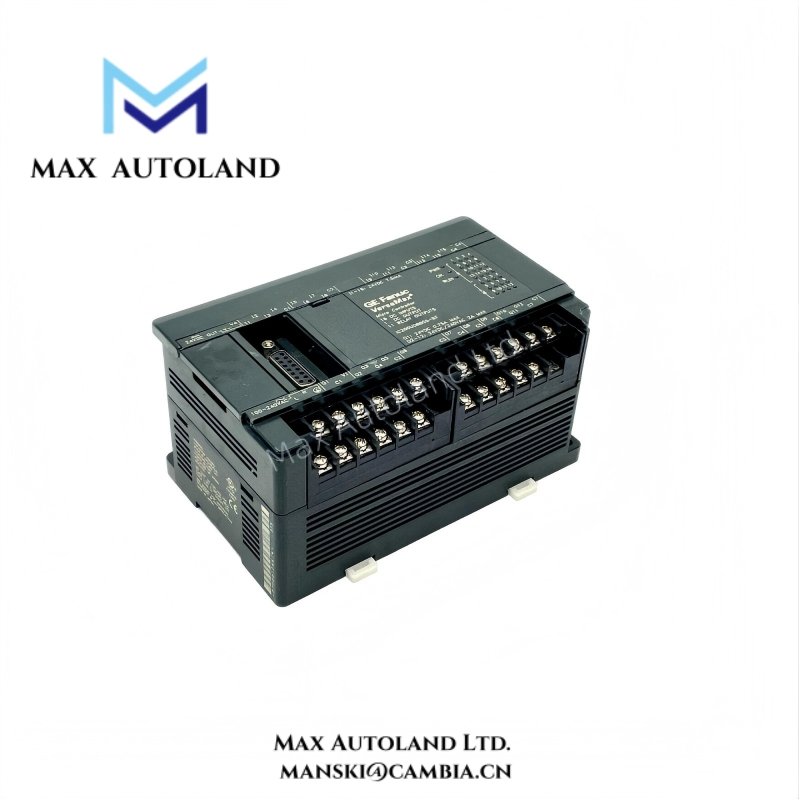

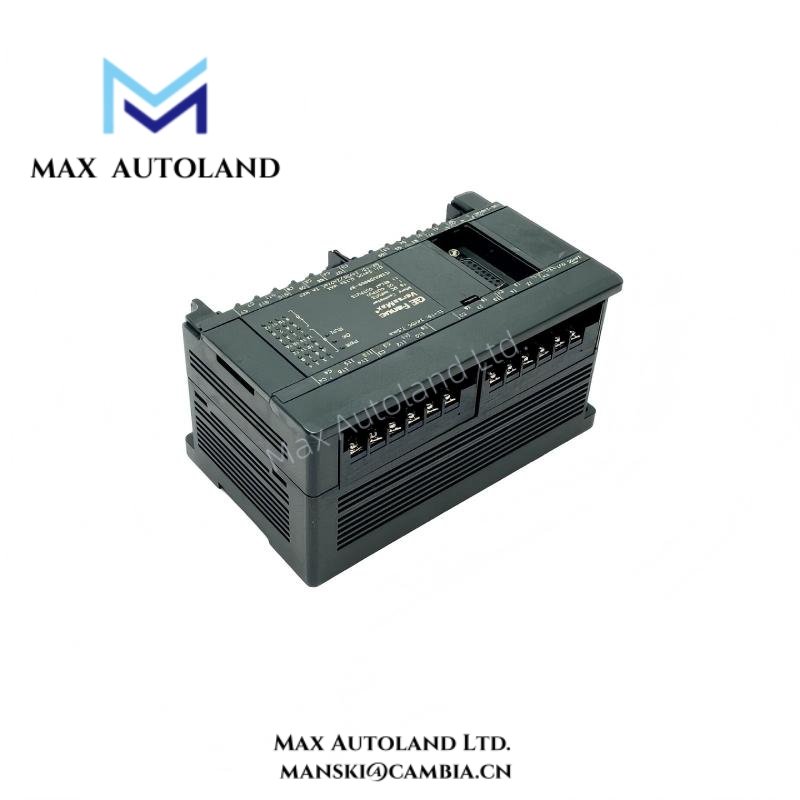

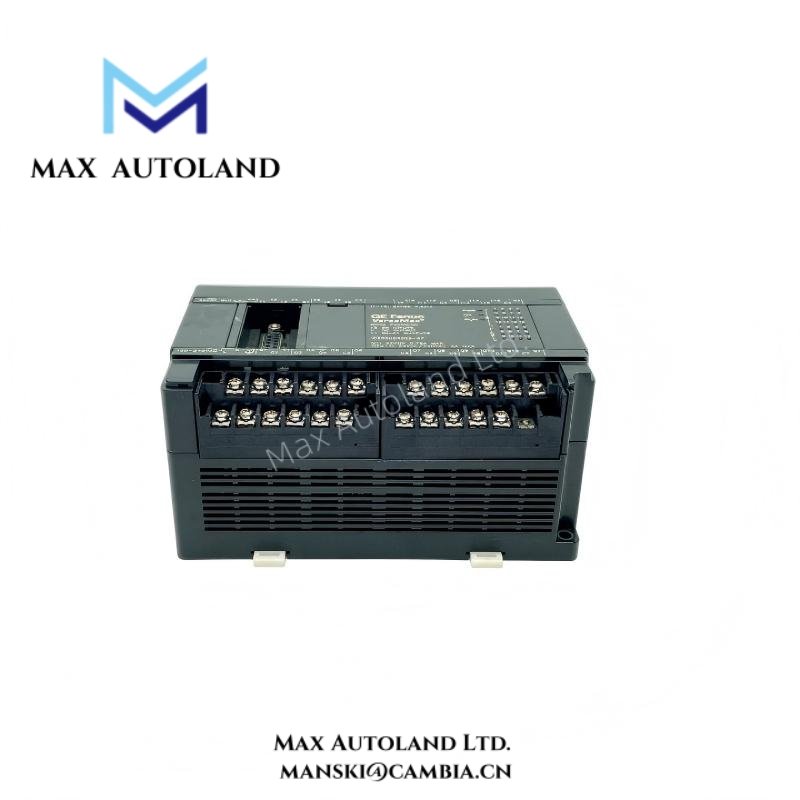

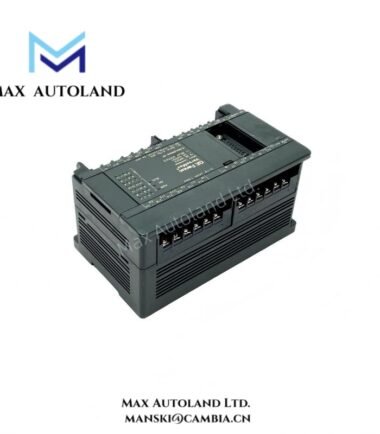

The IC200UDR005 controller delivers compact yet powerful PLC control for small and medium industrial automation systems.
GE (General Electric) designed the VersaMax Micro platform to provide reliable control with integrated inputs, outputs, and communication capabilities.
Engineers frequently select IC200UDR005 when machine builders require an integrated controller with flexible I/O capacity.
Therefore, the controller combines digital inputs, relay outputs, processing capability, and communication interfaces within one compact enclosure.
The integrated design reduces cabinet space requirements while simplifying wiring and system commissioning procedures.
Moreover, the controller enables cost-effective automation solutions for packaging machines, conveyors, and standalone equipment.
Industrial facilities depend on IC200UDR005 to maintain reliable logic control across production equipment and process machines.
Consequently, operators achieve stable machine performance with minimal hardware complexity.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Product Model | IC200UDR005 |
| Product Type | VersaMax Micro PLC Controller |
| Series | VersaMax Micro |
| Total I/O Points | 28 integrated I/O points |
| Digital Inputs | 20 inputs |
| Output Type | Relay outputs |
| Digital Outputs | 8 relay outputs |
| Processor Type | Integrated industrial PLC CPU |
| Program Memory | Approx. 12 KB user logic memory |
| Data Memory | Internal PLC data registers |
| Communication Ports | Serial programming port |
| Communication Protocol | Industrial PLC communication protocol |
| Programming Software | VersaPro / compatible PLC software |
| Power Supply Voltage | 24 VDC |
| Input Voltage Range | 20.4 – 28.8 VDC |
| Isolation | Electrical isolation between logic and field signals |
| Mounting Method | DIN rail mounting |
| Wiring Interface | Integrated screw terminal connectors |
| Indicators | LED indicators for power, run, and I/O status |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Dimensions | Approx. 90 × 120 × 70 mm |
| Weight | Approx. 0.45 kg |
| Enclosure | Industrial thermoplastic housing for electrical insulation |
FAQ
Q1: Is the IC200UDR005 controller new and original?
Yes. The IC200UDR005 controller we supply is brand new and original from the factory.
Q2: Do you keep IC200UDR005 in stock?
Yes. We maintain available inventory, so IC200UDR005 units are ready for quick shipment.
Q3: How long does shipping usually take?
We usually ship within 3 days to 2 weeks, depending on order quantity and logistics scheduling.
Q4: Which shipping companies do you normally use?
We commonly use international logistics providers such as DHL to ensure reliable global delivery.
Q5: How many inputs and outputs does IC200UDR005 include?
The IC200UDR005 controller provides 20 digital inputs and 8 relay outputs, totaling 28 integrated I/O points.
Q6: What power supply does IC200UDR005 require?
The controller operates using a 24 VDC industrial power supply.
