Overview

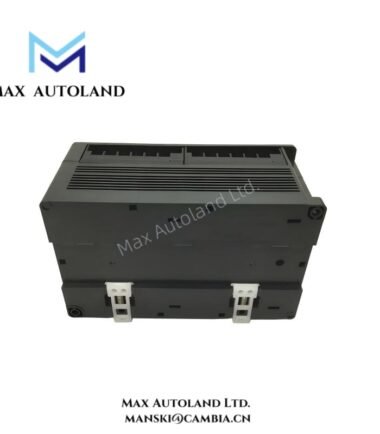

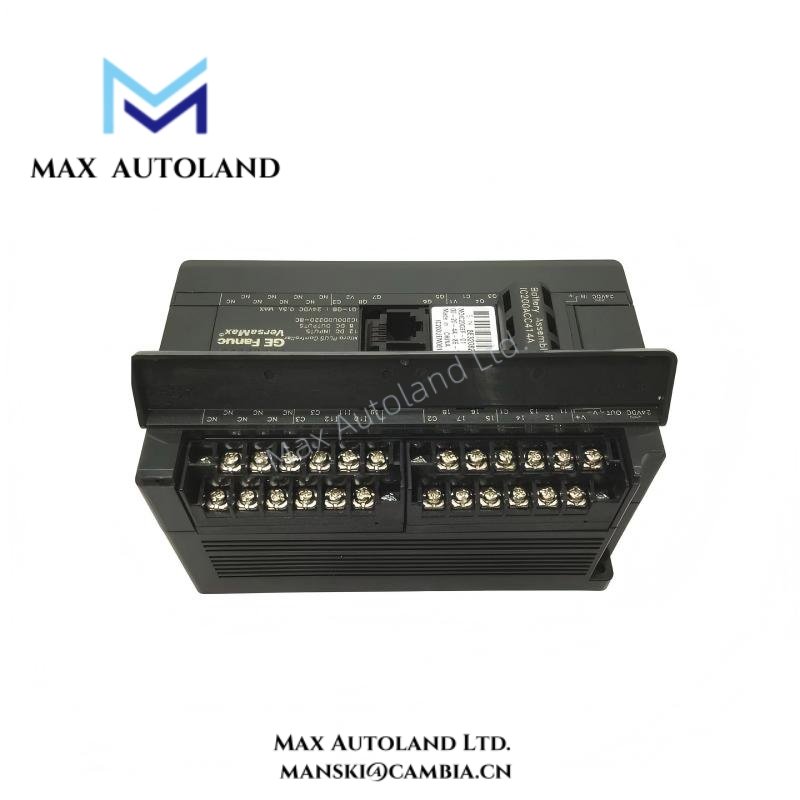

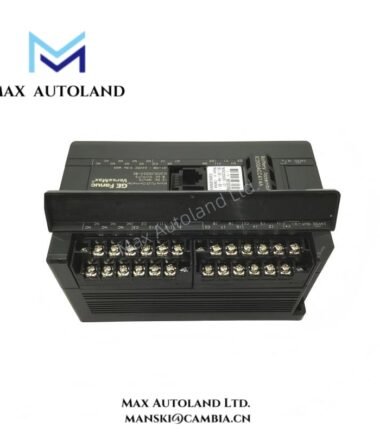

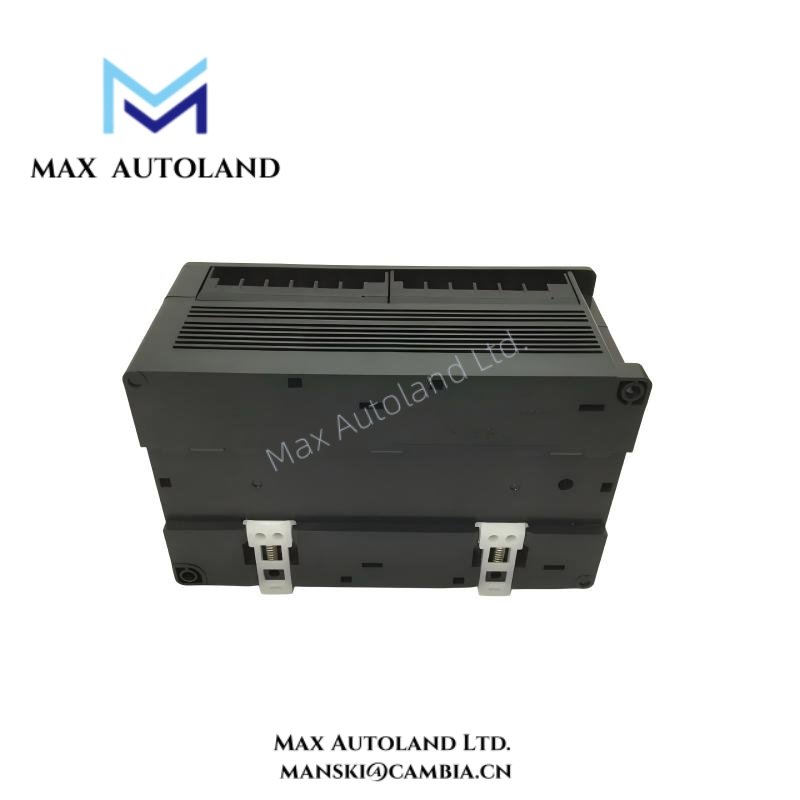

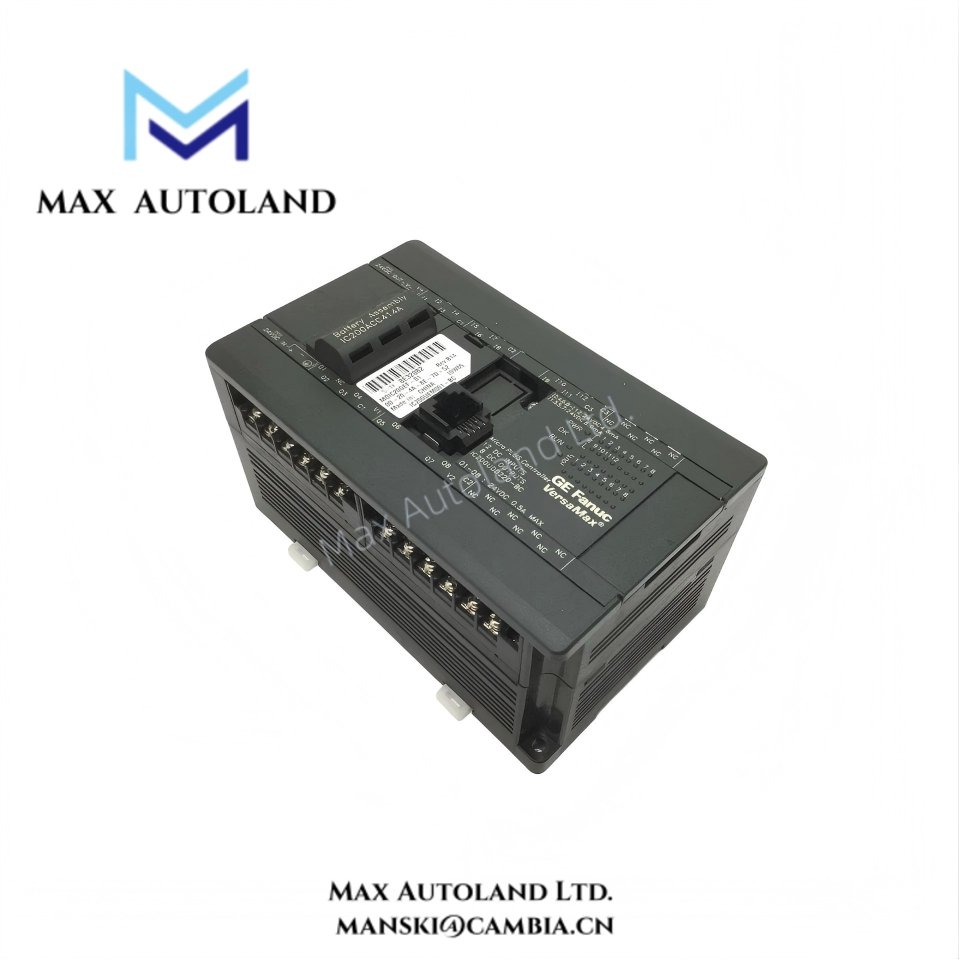

The IC200UDD220 delivers enhanced control performance for compact industrial automation systems.
As part of the VersaMax Micro PLUS family, it integrates CPU, power supply, and I/O in one housing.
Moreover, it provides 20 built-in discrete I/O points for flexible field device connectivity.
Therefore, engineers reduce panel wiring complexity while maintaining scalable automation architecture.
The IC200UDD220 operates on 24VDC input power and supports additional expansion modules.
Additionally, it includes dual serial communication ports for PLC networking and configuration tasks.
Consequently, system integrators achieve reliable control with minimal hardware footprint.
Specification
| Parameter Category | Specification Detail |
|---|---|
| Manufacturer | GE |
| Product Model | IC200UDD220 |
| Series | VersaMax Micro PLUS |
| Product Type | Integrated Micro PLUS PLC Controller |
| Built-in I/O Points | 20 total discrete I/O |
| Digital Inputs | 12 points, 24VDC nominal |
| Digital Outputs | 8 points, 24VDC transistor outputs |
| Input Voltage Range | 20.4–28.8 VDC |
| Input Current | Approx. 7 mA per input at 24VDC |
| Output Current Rating | 0.5 A per output point |
| Maximum Output Group Current | 4 A per output group |
| Processor Type | High-speed embedded industrial CPU |
| Program Memory | 28 KB user ladder logic memory |
| Data Memory | 12 KB configurable data registers |
| Non-Volatile Storage | Flash memory retains program without battery |
| Energy Storage | Internal capacitor maintains data during short power interruptions |
| Communication Ports | 2 × integrated serial ports |
| Serial Interfaces | RS-232 and RS-485 selectable |
| Supported Protocols | SNP, Modbus RTU |
| Maximum Baud Rate | Up to 115.2 kbps |
| Expansion Capability | Supports VersaMax Micro expansion I/O units |
| Backplane Communication | High-speed proprietary VersaMax bus |
| Mounting Method | DIN rail mounting |
| Dimensions | Approx. 120 mm (H) × 90 mm (W) × 70 mm (D) |
| Weight | Approx. 0.45 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Status Indicators | Power, Run, Fault, Input/Output LEDs |
| Enclosure Material | Flame-retardant industrial polymer |
| Typical Applications | OEM equipment, packaging lines, pump control, small manufacturing systems |
FAQ
The IC200UDD220 includes 20 discrete I/O points for flexible control applications.
Q2: What communication interfaces does this controller support?
It provides RS-232 and RS-485 serial communication with Modbus RTU capability.
Q3: Can I expand the controller with additional I/O modules?
Yes, it supports VersaMax Micro expansion units for scalable automation systems.
Q4: What power supply does the controller require?
The IC200UDD220 operates with a regulated 24VDC industrial power source.
Q5: Is the product original and available for shipment?
Yes, we provide brand-new original units with stock available and fast global delivery.
