Overview
It combines CPU processing, integrated I/O, and communication capability in one compact housing.
Therefore, machine builders reduce panel space while maintaining reliable control performance.
Moreover, the controller supports scalable configurations for small and mid-sized automation systems.
Engineers select this unit for applications requiring deterministic logic execution and simplified wiring.
In addition, the integrated design minimizes external modules and reduces overall system complexity.
Specification
| Parameter | Specification |
|---|---|

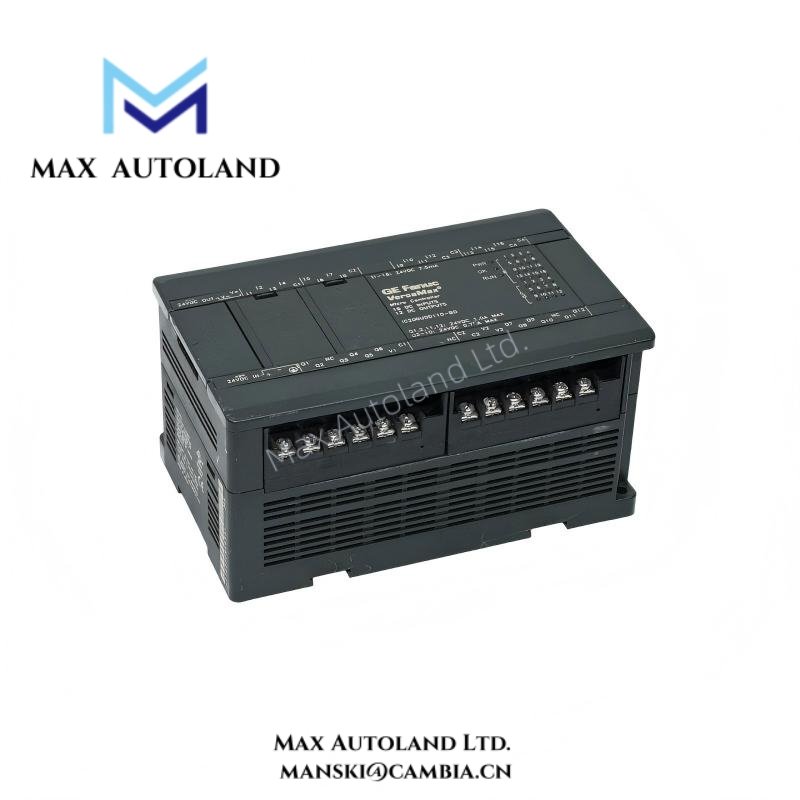

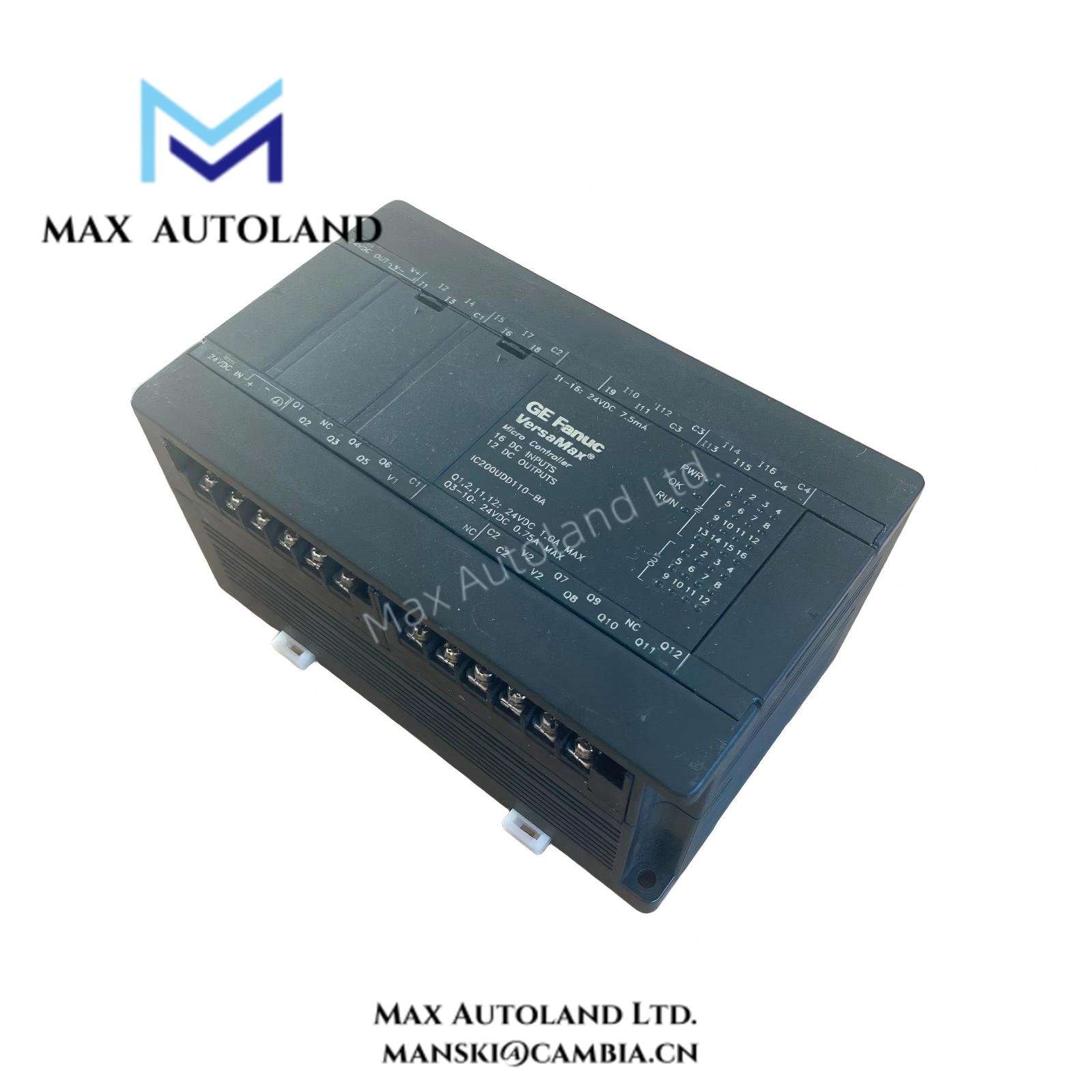

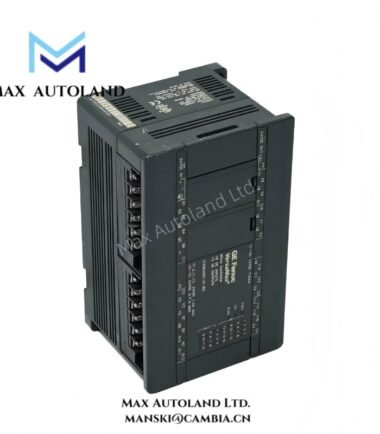

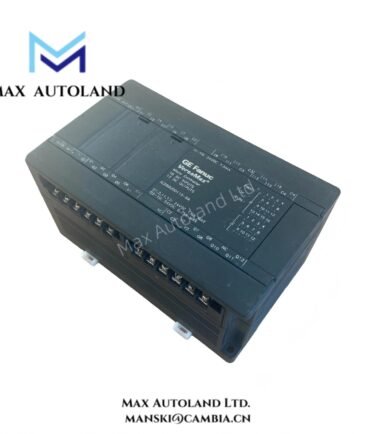

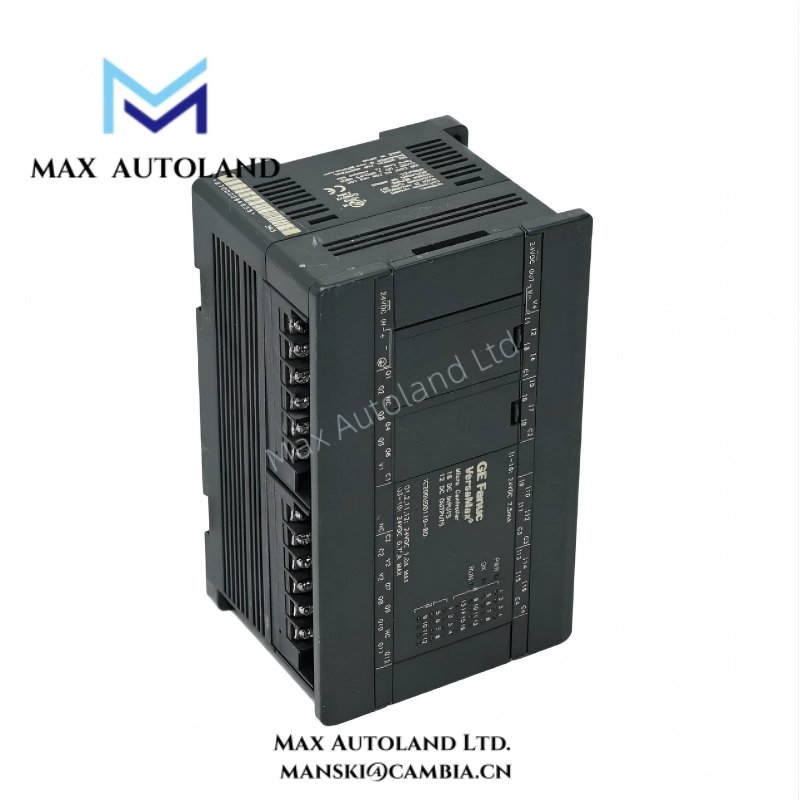

| Model Number | IC200UDD110 |
| Product Family | VersaMax Micro |
| Controller Type | Compact Micro PLC with integrated digital I/O |
| Processor | Embedded industrial microprocessor |
| Program Execution | Cyclic scan-based execution with deterministic response |
| User Program Memory | Approx. 12 KB configurable logic memory |
| Data Memory | Internal register and variable memory for application data |
| Integrated Digital Inputs | 12 points |
| Input Voltage Level | 24 VDC nominal |
| Input Voltage Range | 0–30 VDC typical industrial range |
| Input Current (per point) | Approx. 7 mA typical at 24 VDC |
| Input Filter | Configurable software filtering for noise immunity |
| Integrated Digital Outputs | 8 points |
| Output Type | Relay outputs (model dependent revision) |
| Output Voltage Rating | Up to 250 VAC or 30 VDC (relay contact rating typical) |
| Output Current Rating | Up to 2 A per point (resistive load typical) |
| Power Supply Requirement | 24 VDC nominal |
| Power Consumption | Approx. 7–10 W typical under full load |
| Communication Port | 1 × Serial port (RS-232/RS-485 configurable) |
| Supported Protocols | SNP/SNP-X and serial industrial protocols |
| Programming Software | Compatible with VersaPro or Proficy Machine Edition |
| Real-Time Clock | Integrated RTC with battery backup |
| Status Indicators | Power, Run, Fault, Serial Activity, I/O status LEDs |
| Mounting Method | DIN rail or panel mounting |
| Isolation | Field I/O to logic isolation provided |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration Resistance | Suitable for standard industrial vibration environments |
| EMC Compliance | Designed to meet industrial EMC requirements |
| Safety Certifications | Industrial control equipment compliance standards |
| Dimensions | Compact micro controller footprint for small panels |
| Weight | Lightweight integrated controller design |
FAQ
Q1: What type of applications is the IC200UDD110 best suited for?
A1: It is ideal for compact machines, packaging equipment, conveyors, and small process control systems.
Q2: Does the IC200UDD110 include integrated digital I/O?
A2: Yes, it provides 12 digital inputs and 8 digital outputs for direct field device wiring.
Q3: What power supply does this controller require?
A3: It operates on a 24 VDC industrial power supply with stable regulated input.
Q4: Can the controller communicate with HMIs or SCADA systems?
A4: Yes, it supports serial communication protocols for integration with HMIs and supervisory systems.
Q5: Is expansion possible with additional I/O modules?
A5: Yes, it supports VersaMax expansion modules for increased I/O capacity when needed.
Q6: How does the controller indicate operating status?
A6: Front-panel LEDs display power, run status, communication activity, and fault conditions.
