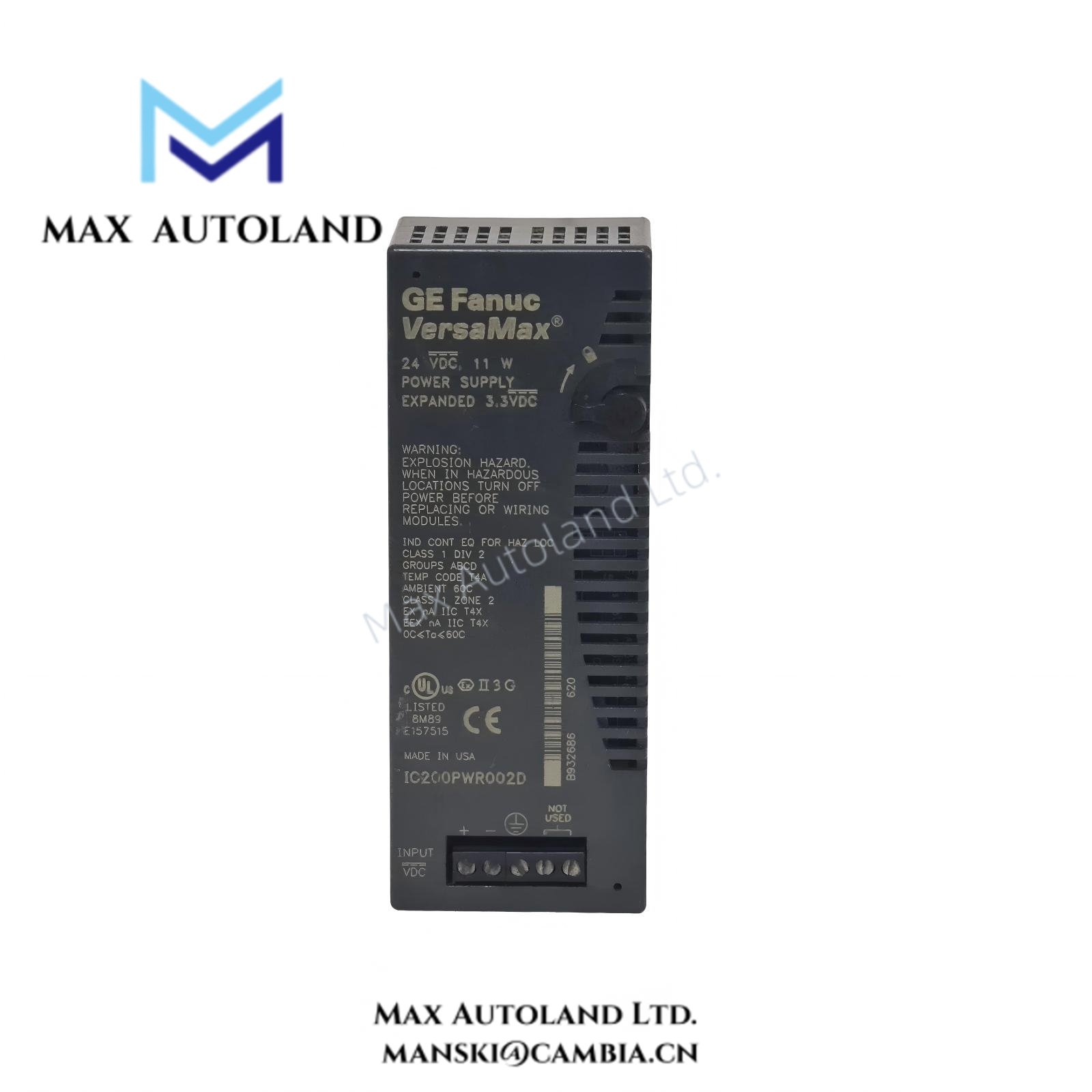

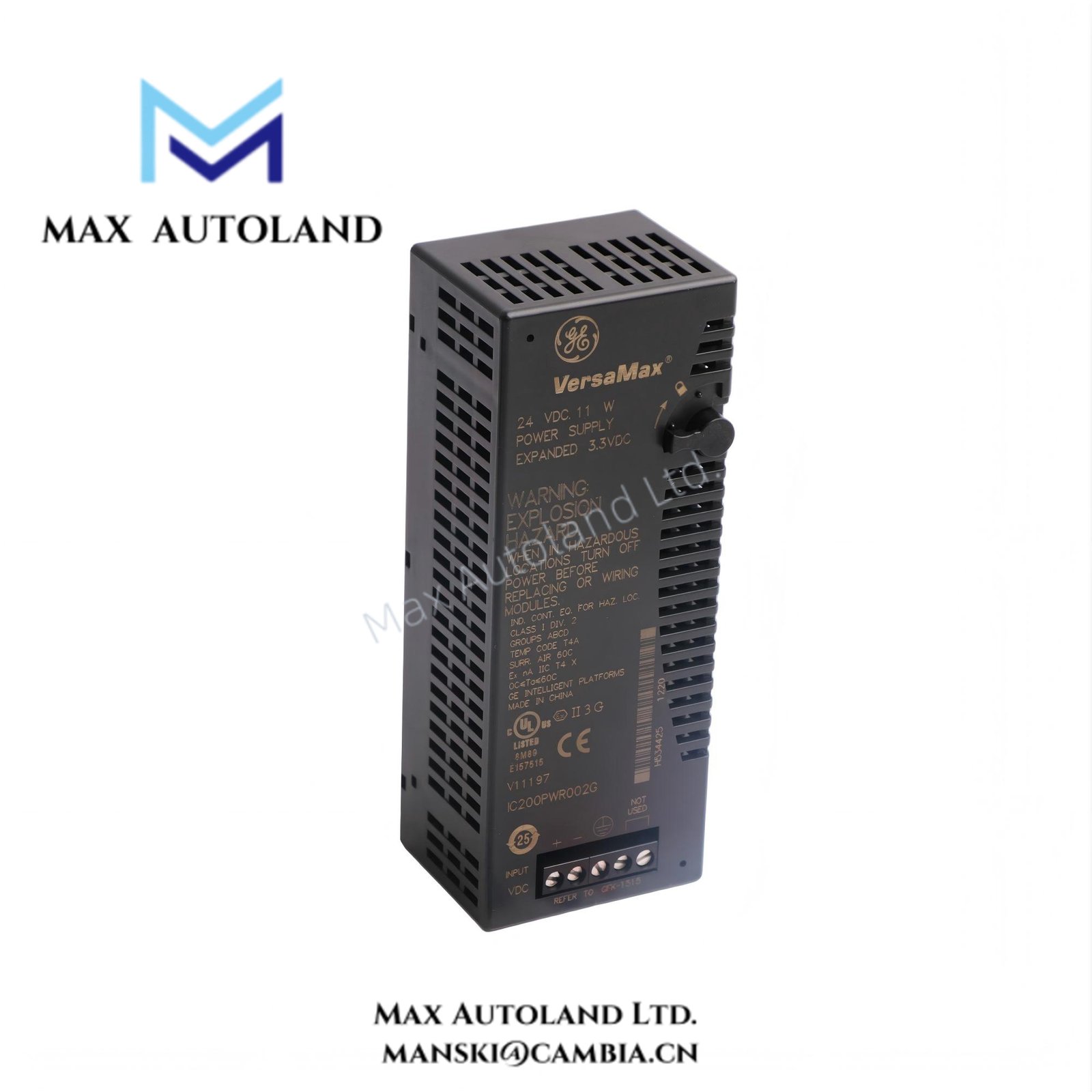

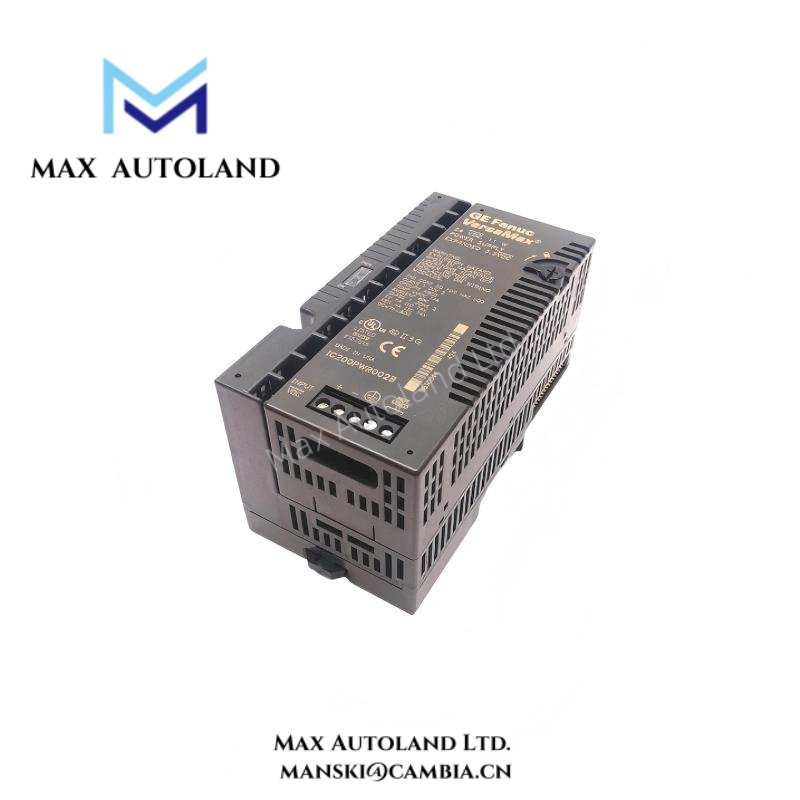

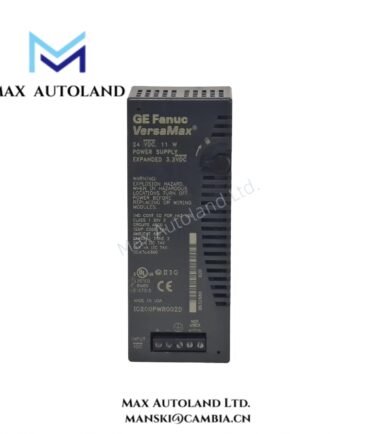

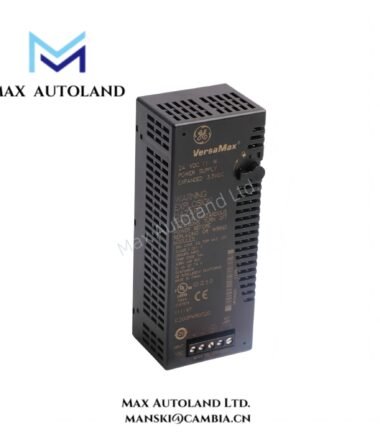

Overview
Specifically, it supports the GE VersaMax control platform in demanding industrial environments.
Engineers use this unit to extend available backplane power in larger I/O configurations.
Moreover, it maintains stable voltage regulation under varying industrial load conditions.
In addition, this power supply enhances system scalability without increasing cabinet complexity.
Therefore, automation designers expand I/O capacity while maintaining consistent electrical stability.
At the same time, its compact footprint simplifies installation in space-constrained control panels.
As a result, integrators complete panel layouts faster and reduce overall wiring effort.
Specification
| Parameter | Specification |
|---|---|
| Brand | GE Intelligent Platforms |
| Product Series | VersaMax I/O Series |
| Model Number | IC200PWR002 |
| Module Type | Expanded Power Supply Unit |
| Rated Input Voltage | 24 VDC nominal |
| Input Voltage Range | 18 to 30 VDC |
| Maximum Input Current | 1.5 A typical at full load |
| Inrush Current | 30 A maximum for 10 ms |
| Output Voltage (Internal Bus) | 5 VDC for VersaMax backplane |
| Maximum Output Current | 3.3 A for I/O modules and option modules |
| Power Capacity | Supports expanded local I/O configurations |
| Isolation | Input to logic isolated |
| Overvoltage Protection | Integrated internal protection circuitry |
| Short Circuit Protection | Electronic current limiting |
| Diagnostic Indicators | LED status indicators for power and fault conditions |
| Mounting | DIN rail mounting |
| Compatibility | VersaMax CPU and I/O carrier modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration Resistance | Industrial standard compliant |
| Shock Resistance | IEC industrial shock standards |
| Certifications | CE, UL, cUL (depending on installation region) |
| Typical Application Role | Supplies logic and backplane power for expanded I/O racks |
FAQ
Q1: What is the primary function of the IC200PWR002?
It expands available backplane power within a VersaMax PLC system.
Q2: What input voltage does this unit require?
It operates on a nominal 24 VDC input supply.
Q3: Is this a standalone power supply?
No, it supplements the primary VersaMax power supply in expanded systems.
Q4: How is it mounted in a control panel?
It installs easily on a standard DIN rail.
Q5: Which systems are compatible with this module?
It is specifically designed for the GE VersaMax modular PLC platform.
