Overview

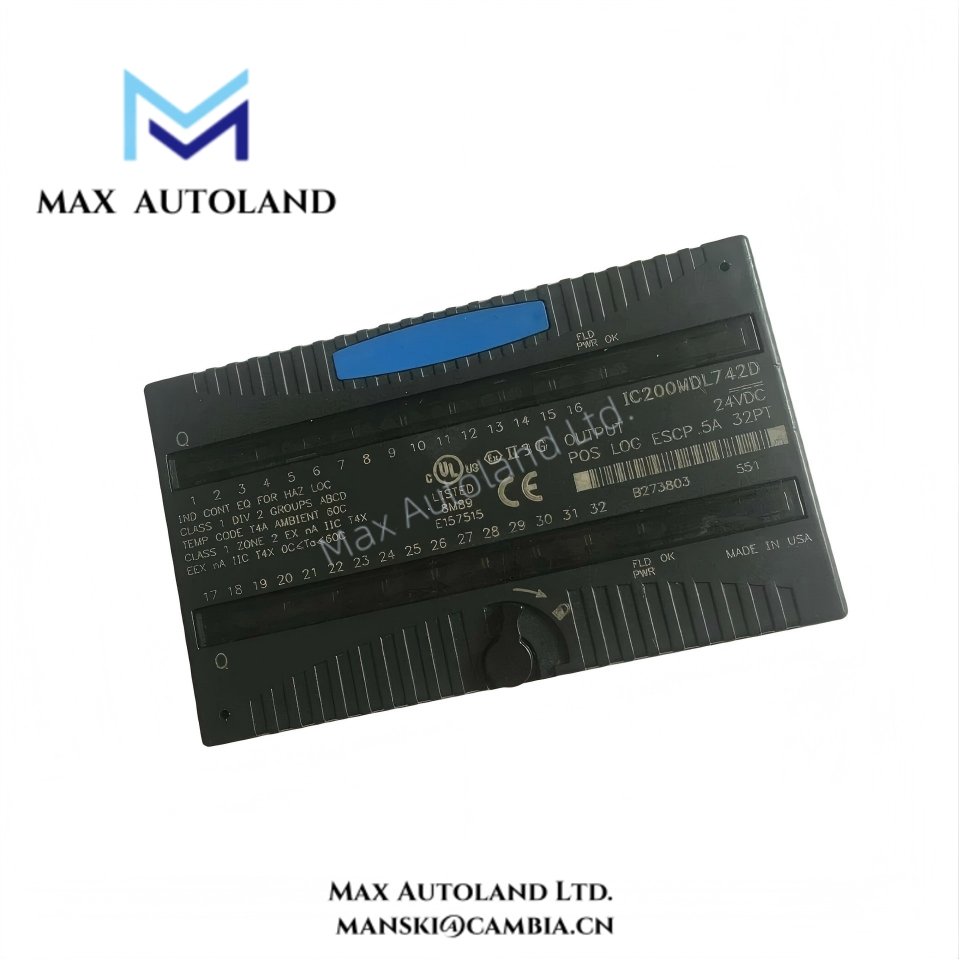

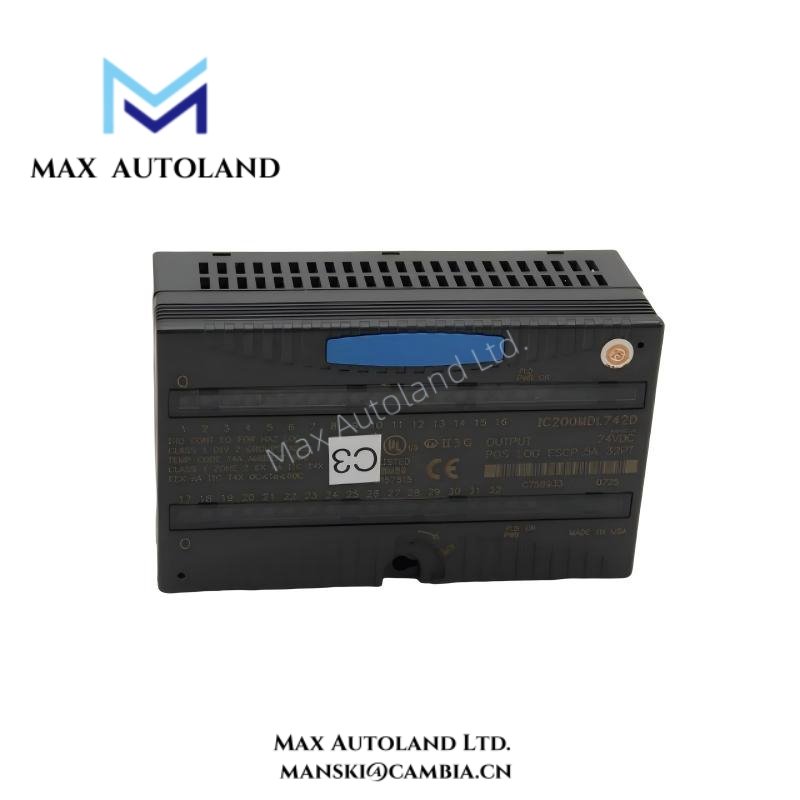

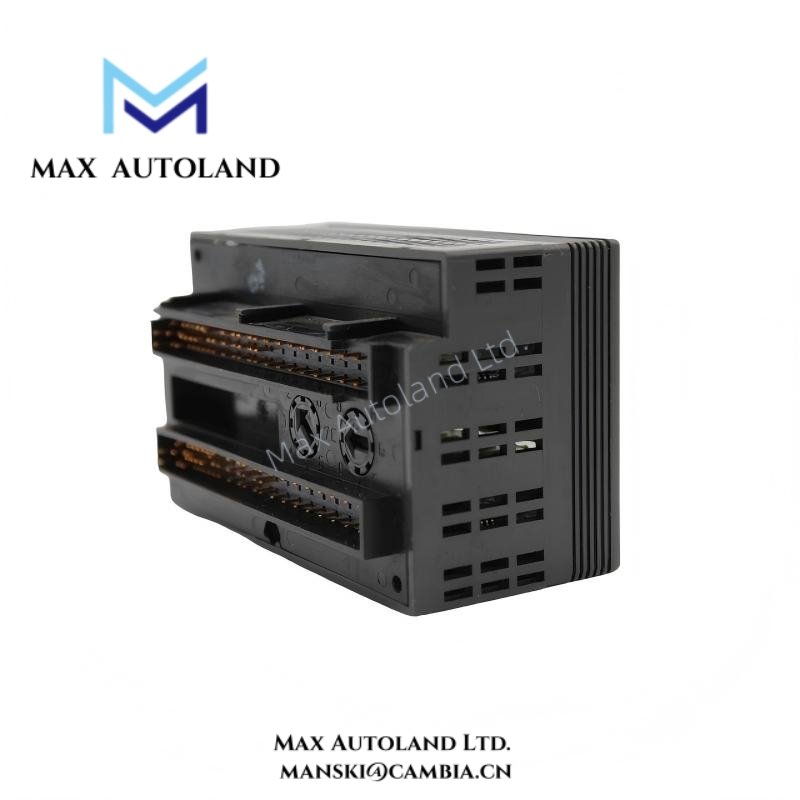

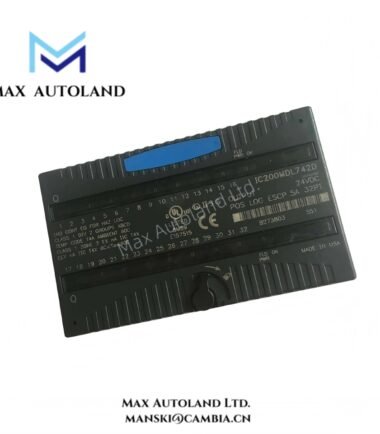

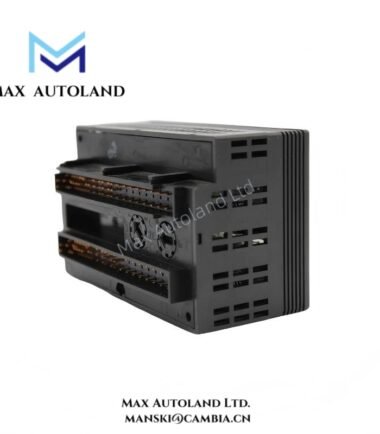

IC200MDL742 from GE provides high-speed, reliable discrete output control for industrial automation systems.
This module belongs to the VersaMax family and integrates seamlessly with VersaMax PLC backplanes.
Engineers choose IC200MDL742 for fast and accurate digital signal switching in machinery and process control.
The module’s compact DIN-rail housing reduces cabinet space while maintaining full channel density.
Front-panel LED indicators allow instant visual confirmation of each output state.
Furthermore, short-circuit protection ensures both module and load remain safe during unexpected conditions.
Specification
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Module | Model | IC200MDL742 | 16-point discrete output module |
| Manufacturer | GE | Industrial automation division | |
| Series | VersaMax | Compatible with VersaMax backplanes | |
| Outputs | Number of Points | 16 channels | Transistor output configuration |
| Output Type | Sourcing transistor | 24 VDC output, positive logic | |
| Maximum Output Current | 0.5 A per channel | Suitable for solenoids, relays, or indicators | |
| Voltage Range | 24 VDC nominal | Operating range: 20–28.8 VDC | |
| Response Time | ≤ 1 ms typical | Fast switching for industrial applications | |
| Short-Circuit Protection | Built-in per channel | Protects module and connected devices | |
| Electrical Characteristics | Supply Voltage | 5 VDC from backplane | Consumed from VersaMax carrier |
| Power Consumption | Approx. 2 W | Typical operation | |
| Isolation | 1500 VAC field to backplane | Electrical protection between field and logic | |
| Mechanical | Dimensions | 110 × 50 × 70 mm | Compact DIN-rail mounting |
| Weight | ~0.22 kg | Lightweight industrial design | |
| Mounting | VersaMax backplane DIN-rail | Quick installation | |
| Indicators | 16 green LEDs | Individual output status monitoring | |
| Environmental | Operating Temperature | 0°C – 55°C | Standard industrial environment |
| Storage Temperature | -40°C – 85°C | Safe for storage and transport | |
| Relative Humidity | 5%–95% non-condensing | Tolerates industrial humidity ranges |
FAQ
Q1: Is this module brand new and original?
Yes, IC200MDL742 is 100% factory original and brand new.
Q2: Is this product in stock?
Yes, we maintain stock for IC200MDL742 for immediate order fulfillment.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order size.
We commonly use DHL and other international logistics providers.
Q4: What is the output voltage and current rating?
IC200MDL742 outputs 24 VDC, 0.5 A per channel with transistor switching.
Q5: Does it have short-circuit protection?
Yes, each channel includes built-in short-circuit protection.
Q6: What if a quality issue occurs?
We support returns within 30 days for verified quality problems.
