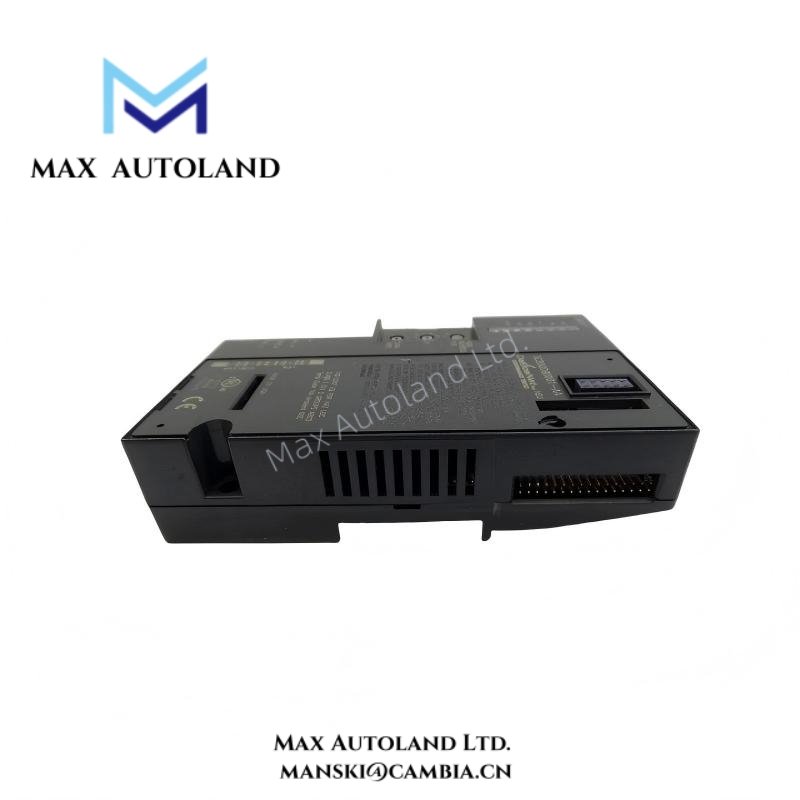

Overview
Engineers use this module when controllers must exchange real-time data with sensors, drives, and field devices across automation networks.
Developed by General Electric for the VersaMax platform, this module enables reliable field-level communication between PLC systems and intelligent DeviceNet devices.
Moreover, the unit integrates directly into the VersaMax modular I/O architecture, allowing compact network connectivity without additional gateway hardware.
Therefore, automation engineers can implement distributed control architectures while maintaining deterministic communication between controllers and field devices.
In addition, the interface simplifies system configuration and supports flexible DeviceNet network integration across manufacturing and process control environments.
Specification
| Parameter | Specification |
|---|---|
| Product Model | IC200DBI001 |
| Manufacturer | General Electric |
| Product Series | VersaMax Distributed I/O |
| Module Type | DeviceNet Network Interface Unit |
| Network Protocol | DeviceNet |
| Device Role | DeviceNet Slave |
| Network Standard | Compliant with DeviceNet industrial communication standard |
| Data Exchange Type | Cyclic I/O messaging and explicit messaging |
| Maximum Network Speed | Up to 500 kbps |
| Supported Baud Rates | 125 kbps, 250 kbps, 500 kbps |
| Node Address Range | 0–63 configurable |
| Network Connector | 5-pin DeviceNet connector |
| Backplane Interface | VersaMax modular backplane |
| Configuration Method | PLC programming software and DeviceNet configuration tools |
| Diagnostic Indicators | LED indicators for module status, network status, and communication activity |
| Power Supply | Powered through VersaMax I/O carrier |
| Power Consumption | Approximately 3.0 W |
| Module Width | Approx. 66 mm |
| Module Height | Approx. 130 mm |
| Module Depth | Approx. 73 mm |
| Approximate Weight | 0.28 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Installation Method | Installed on VersaMax modular carrier |
| Industrial Certification | Designed for industrial automation environments |
FAQ
Q1: What is the primary function of the IC200DBI001 module?
The IC200DBI001 connects VersaMax distributed I/O systems to DeviceNet networks for reliable industrial field communication.
Q2: What communication speeds does the IC200DBI001 support?
The module supports DeviceNet network speeds of 125 kbps, 250 kbps, and 500 kbps.
Q3: How many node addresses can the IC200DBI001 support on a DeviceNet network?
The module supports DeviceNet node addresses from 0 to 63, configurable through network setup tools.
Q4: Is the IC200DBI001 compatible with VersaMax modular I/O carriers?
Yes, the interface unit integrates directly with VersaMax I/O carriers within the distributed automation system architecture.
Q5: Do you supply new original IC200DBI001 modules and provide shipping services?
Yes, we provide brand-new original modules with available stock and ship orders within 3 days to 2 weeks via DHL or similar logistics.
