Overview

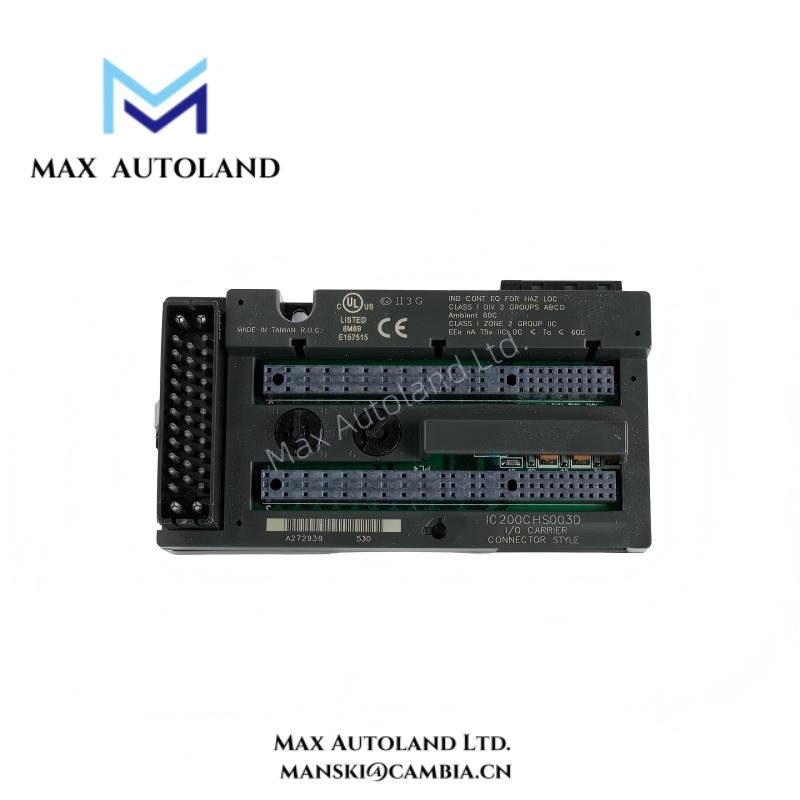

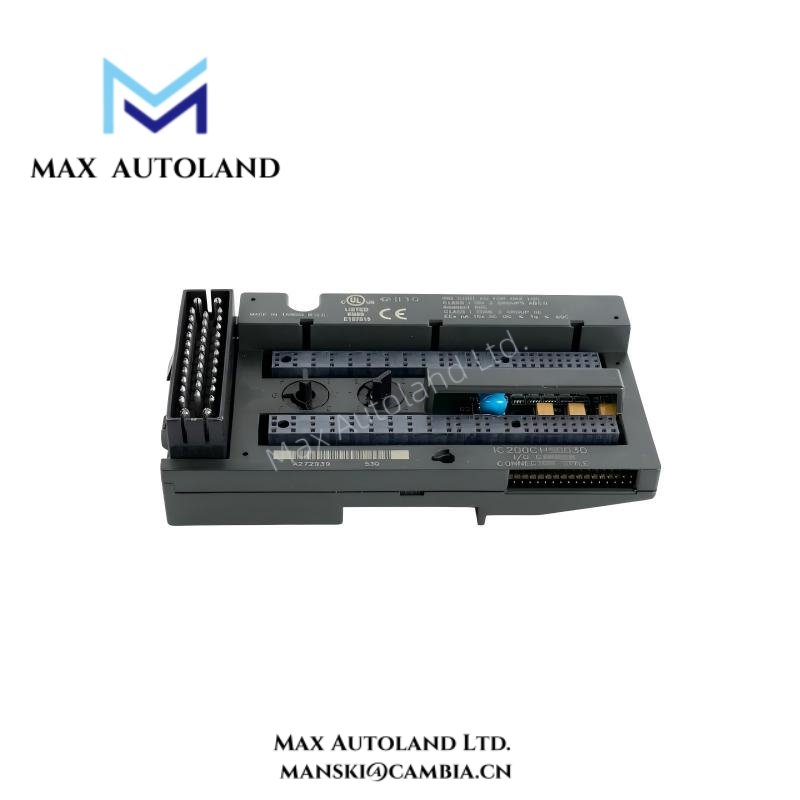

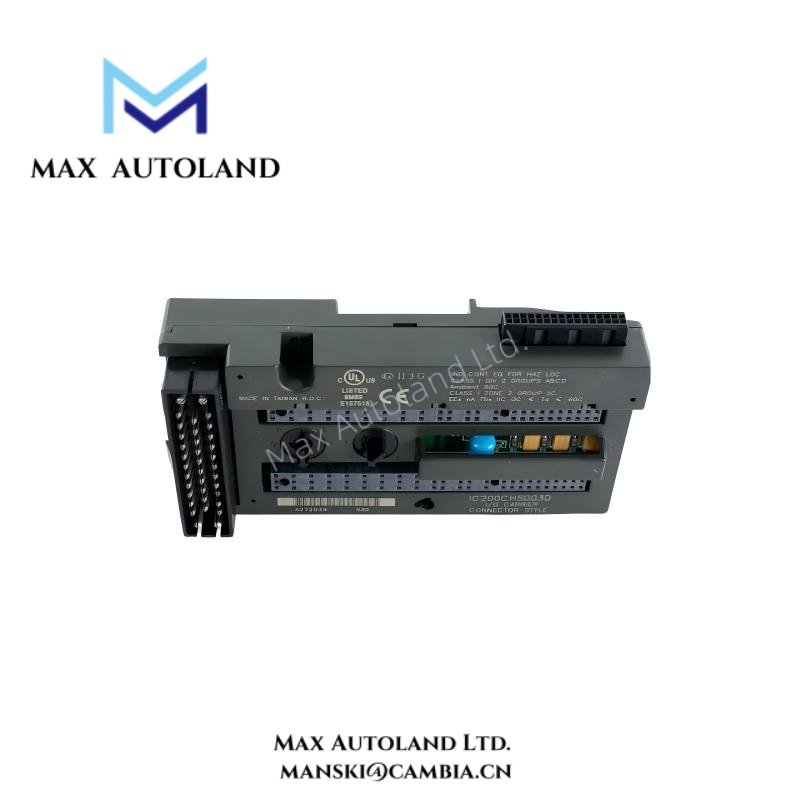

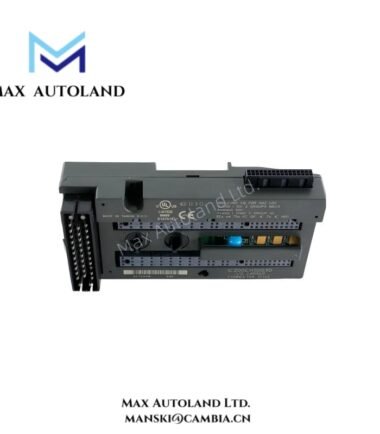

The IC200CHS003 from GE delivers a compact and reliable carrier base for VersaMax systems.
This module supports efficient installation within the GE VersaMax distributed I/O architecture.
Engineers choose IC200CHS003 for stable backplane connectivity and flexible modular expansion.
Moreover, GE designed this carrier to simplify wiring and reduce cabinet space requirements.
GE integrates the IC200CHS003 into the VersaMax platform to support CPUs and I/O modules.
As a result, users gain scalable control solutions for industrial automation environments.
The rugged mechanical structure ensures long-term performance in demanding plant conditions.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Product Series | VersaMax Modular I/O |
| Model Number | IC200CHS003 |
| Product Type | I/O Carrier Module (Passive Base Unit) |
| Slot Capacity | 3 module slots |
| Supported Modules | VersaMax CPU, NIU, I/O modules |
| Backplane Type | Integrated VersaMax proprietary backplane bus |
| Backplane Voltage | 5 VDC distributed from external power supply |
| Field Power Distribution | 24 VDC pass-through (module dependent) |
| Power Consumption | No internal consumption (passive carrier) |
| Energy Storage Components | None |
| Mounting Method | 35 mm DIN rail mounting |
| Mechanical Locking | Integrated module retention mechanism |
| Wiring Interface | Terminal base connections via installed modules |
| Grounding | Chassis grounding through DIN rail |
| Dimensions (H × W × D) | 66 mm × 138 mm × 60 mm (approximate) |
| Weight | Approximately 0.30 kg |
| Enclosure Material | Industrial thermoplastic housing |
| Protection Rating | IP20 (installed in enclosure) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC-rated for industrial environments |
| Shock Resistance | Industrial standard compliant |
| Compliance Certifications | CE, UL (series dependent) |
| Installation Environment | Control cabinets and industrial panels |
| System Expansion | Supports direct right-side module expansion |
| Application Category | Distributed I/O and control systems |
FAQ
Q1: Is the IC200CHS003 new and original?
A1: Yes, we supply brand new original factory-sealed IC200CHS003 modules.
Q2: Do you keep IC200CHS003 in stock?
A2: Yes, we have stock available for immediate order processing.
Q3: How long does shipping take?
A3: We ship within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics carriers do you use?
A4: We commonly use DHL and other international express services.
Q5: Does this carrier include a power supply module?
A5: No, IC200CHS003 functions as a passive carrier without integrated power supply.
Q6: What if I encounter quality issues?
A6: We support returns within 30 days if any quality problems occur.
