Overview

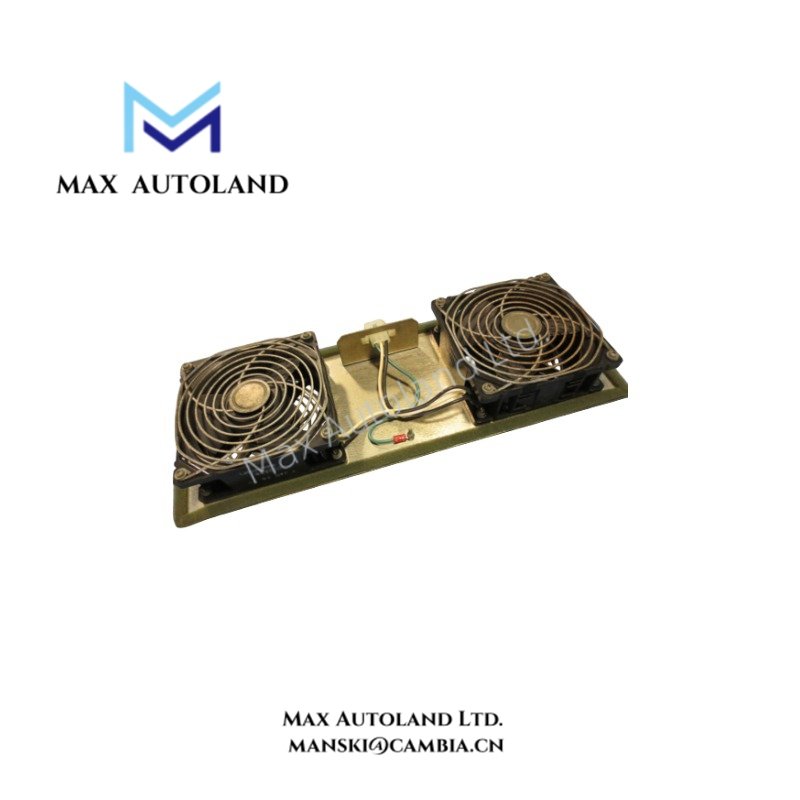

The Honeywell 51304074-100, also cataloged as the 51304074-100 Cabinet Fan Assembly, operates as a dedicated hardware component for forced-air cabinet cooling and thermal regulation within Honeywell industrial automation systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51304074-100 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approx. 1.04 to 1.81 kg |
| Dimensions | Not specified (enclosure-dependent) |
| Operating Temp | Standard industrial cabinet environment limits |
| Power Consumption | Not specified (115 VAC supply requirement) |
| Operating Voltage | 115 VAC |
| Product Type | Cabinet Fan Assembly |
Honeywell DCS Analog and Loop Protocol Interfaces
Designed for industrial process control enclosures, the Honeywell 51304074-100 integrates into system thermal management architectures where reliable enclosure ventilation prevents localized overheating of critical electronic equipment. Furthermore, the unit incorporates a dedicated fan alarm function to monitor operational status, while maintaining continuous forced-air circulation across internal control rack components. Consequently, engineers must verify that the 115 VAC supply aligns with local distribution specifications to ensure stable thermal dissipation.
Frequently Asked Questions
Q: What is the primary operating voltage of the Honeywell 51304074-100?
A: The unit operates on a 115 VAC power supply input.
Q: Does this assembly include a diagnostic alarm output?
A: Yes, the assembly incorporates a fan alarm function. However, technicians must verify the specific alarm contact configuration and wiring against the installed unit documentation.
Field Installation Guidelines
- Verify the part number 51304074-100 against project documentation prior to mechanical mounting.
- Confirm that the incoming supply matches the 115 VAC rating specified on the equipment nameplate.
- Maintain adequate mechanical clearance around the fan inlet and outlet vents to ensure unobstructed airflow.
- Inspect the alarm wiring and associated monitoring circuit to guarantee proper fault detection.
- Apply appropriate electrical isolation and electrostatic discharge (ESD) precautions during maintenance operations.
