Overview

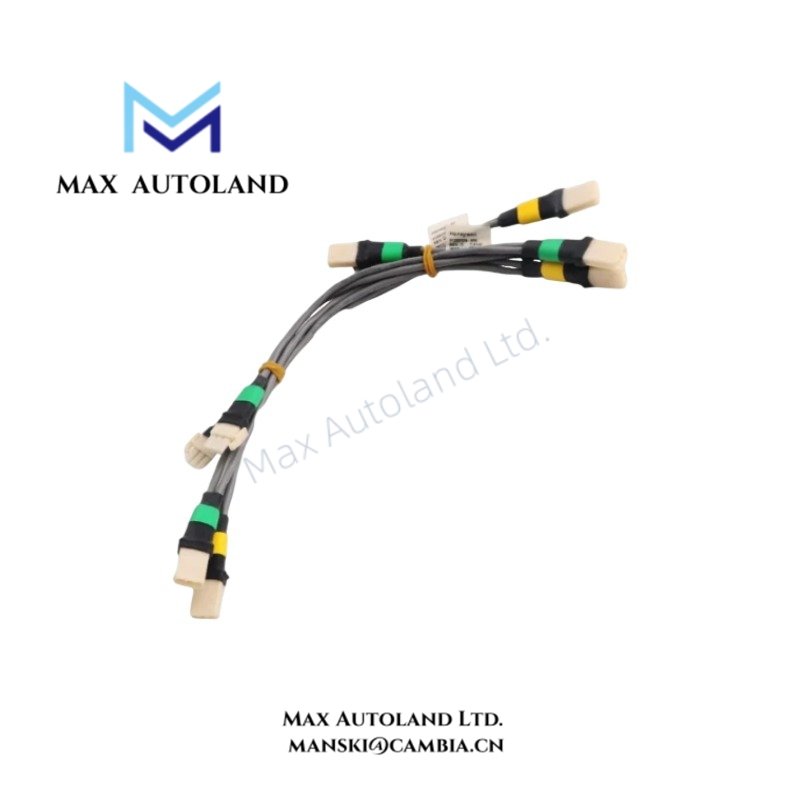

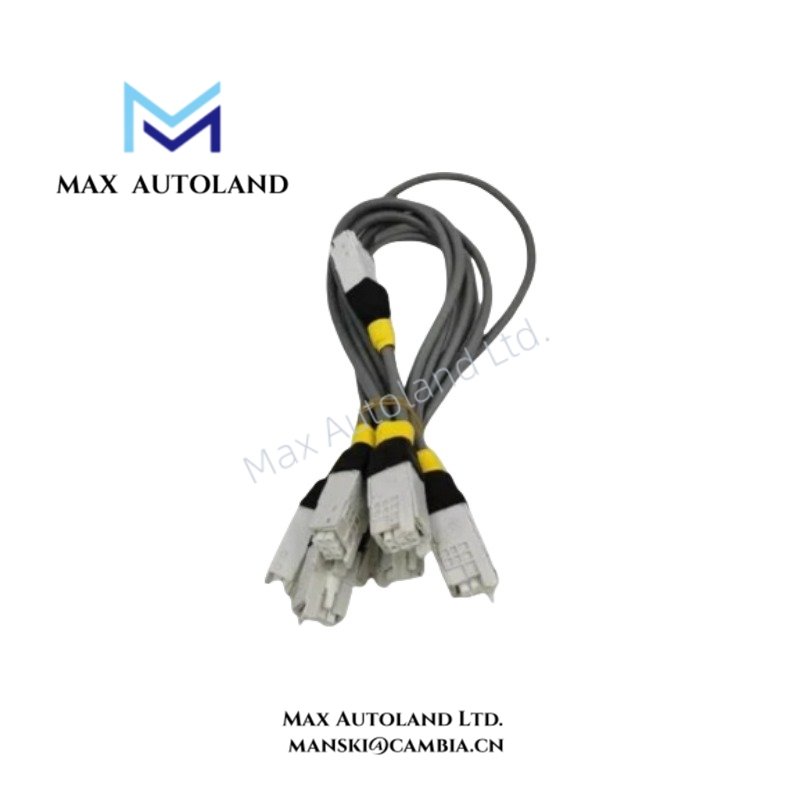

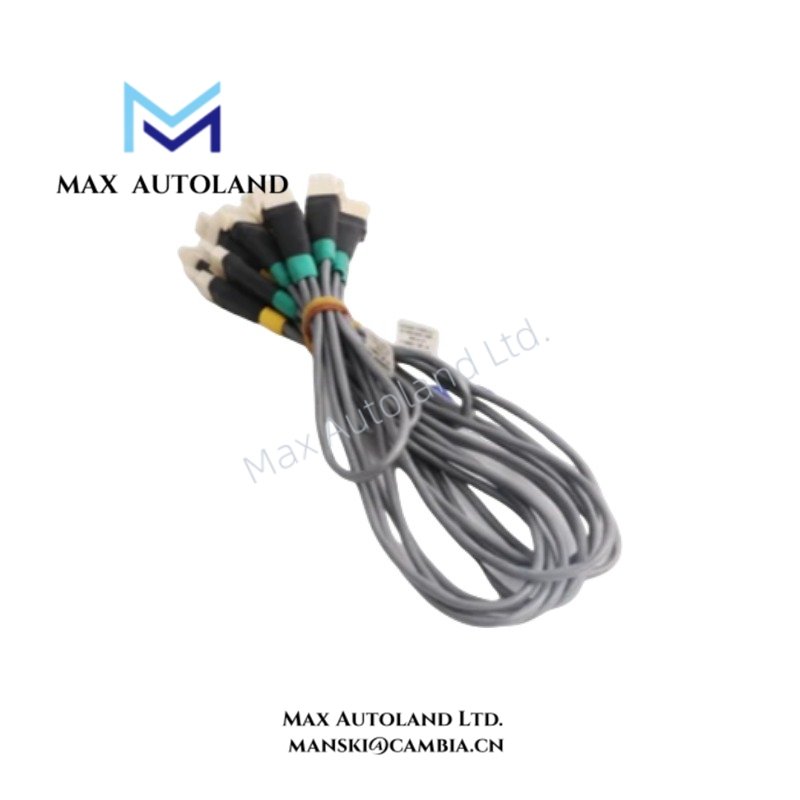

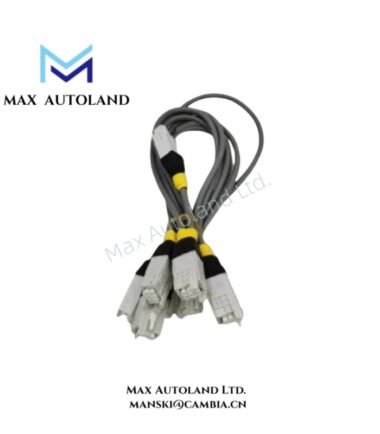

Configured for multi-drop signal transmission within distributed control system platforms, the Honeywell 51202971-502 (51202971-502 Combo I/O Link Cable Assembly) provides direct physical interconnection across compatible I/O link subsystems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202971-502 |
| Brand | Honeywell |
| Origin | USA |
| Power Consumption | Passive interconnect assembly |
| Cable Classification | 6-Drop Cable |
| Application | I/O Link connectivity |
| Condition | Brand New Original Stock |
Distributed Control System Interfacing
The cable assembly provides channel-to-channel signal routing and maintains continuous electrical continuity across multi-drop topologies. Honeywell distributed control architecture relies on structured cabling configurations to minimize signal attenuation and maintain deterministic loop response times. Proper grounding and shielding strategies must be implemented along the entire cable run to suppress electromagnetic interference (EMI) and maintain loop integrity within industrial control environments.
Frequently Asked Questions
Q: What is the primary function of the 51202971-502 cable assembly?
A: It provides a multi-drop physical connection arrangement to link multiple compatible Honeywell I/O modules through a single structured cable assembly.
Q: Can this cable support standard 4-20 mA HART loop protocol signals?
A: Yes, when deployed within compatible Honeywell I/O link subsystems, the physical wiring supports the underlying communication and power loops specified by the system architecture.
Q: Are specific termination requirements needed during installation?
A: Installers must verify correct connector engagement and ensure proper shield grounding at control cabinet entry points to prevent ground loops.
Field Installation Guidelines
Ensure that the control cabinet power is fully de-energized before routing or connecting the cable assembly. Route the cable away from high-voltage power conduits and variable frequency drive outputs to mitigate potential electromagnetic interference. Secure the cable using appropriate strain-relief brackets inside the enclosure to prevent mechanical stress on the connector pins. Verify continuity across all six drops before commissioning the I/O subsystem.
