Overview

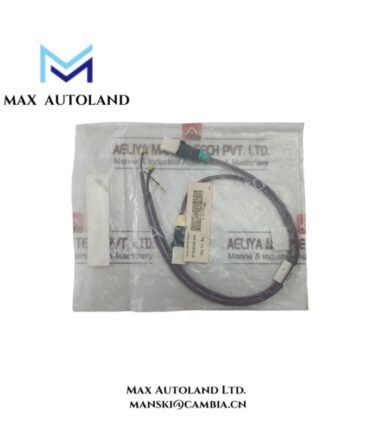

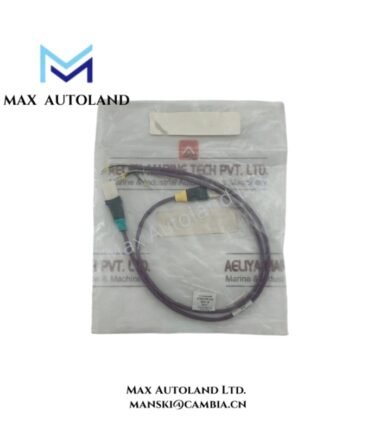

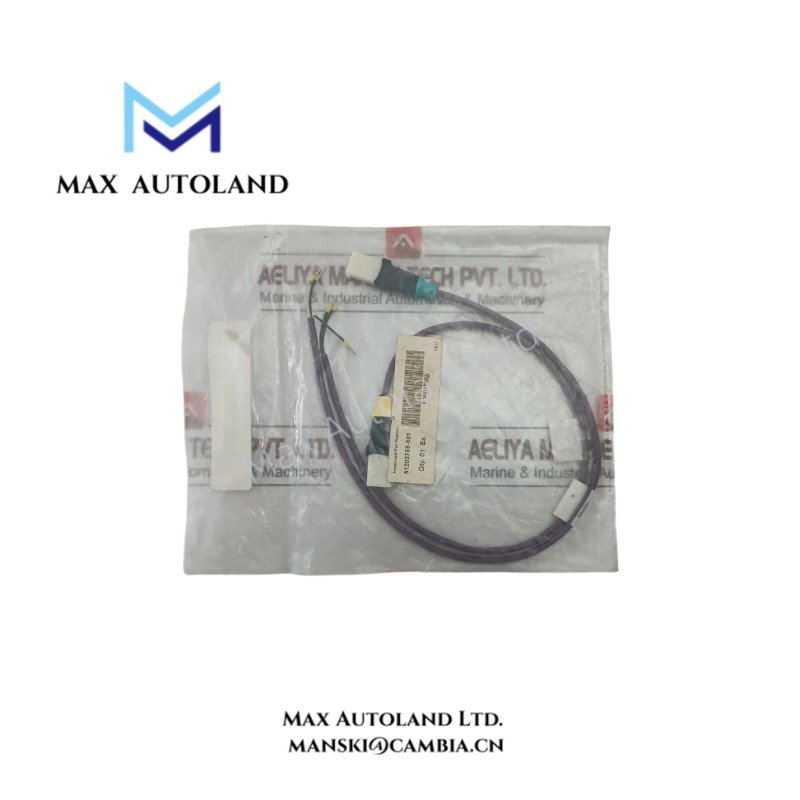

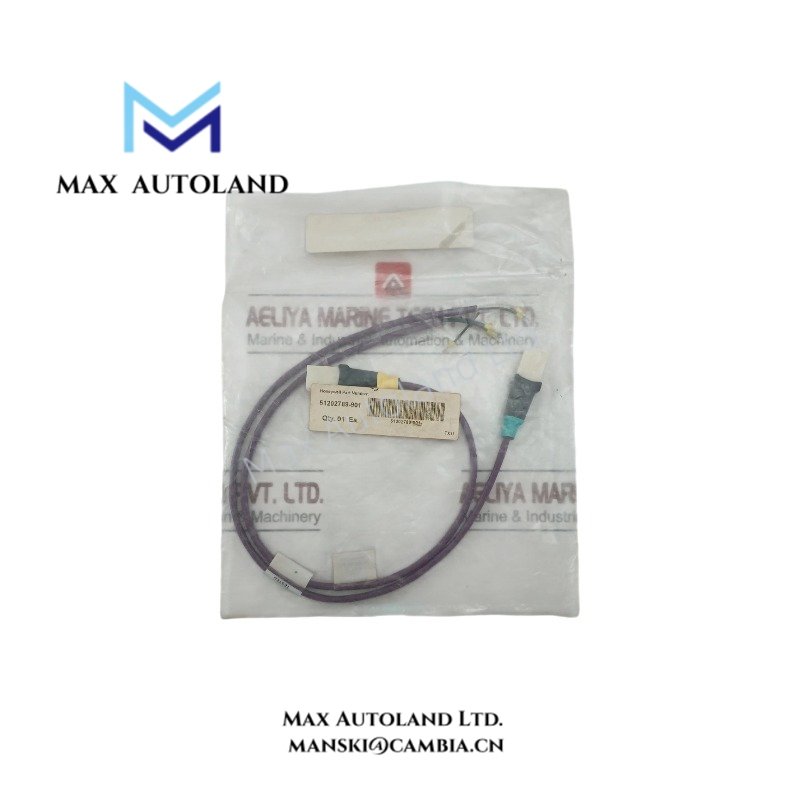

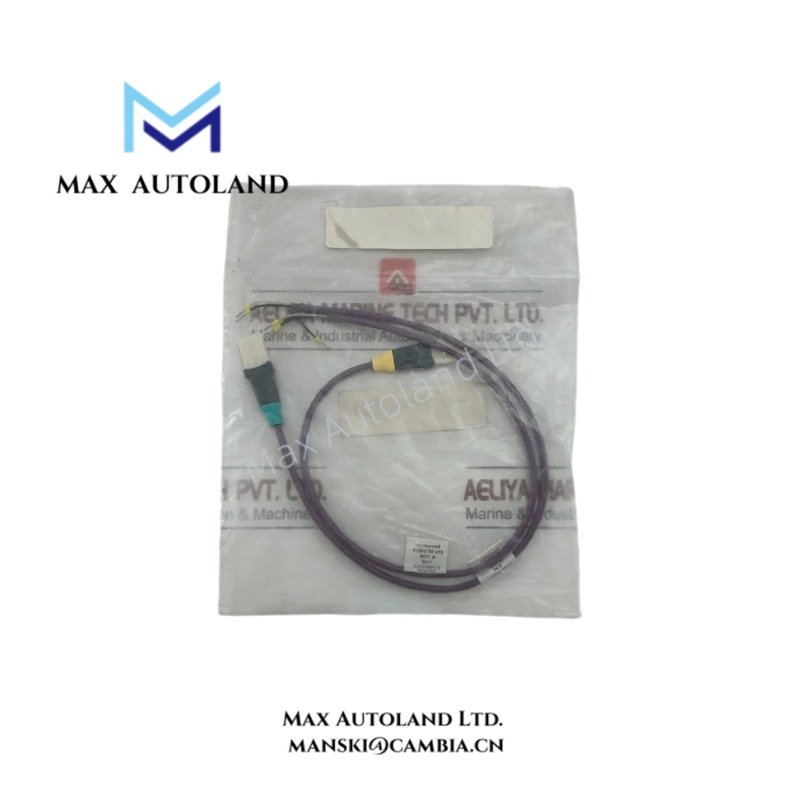

The Honeywell 51202789-901, also cataloged as the 51202789-901 I/O Link Interface Cable, operates as a dedicated hardware component for Series C I/O Link and Fiber Optic Extender communications within distributed control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202789-901 |
| Brand | Honeywell |
| Origin | Verify via manufacturer documentation |
| Weight | Approx. 0.05 – 0.2 kg |
| Dimensions | 20 inches (50.8 cm) |
| Operating Temp | Standard industrial enclosure rating |
| Power Consumption | Passive cabling component |
| Communication Interface | I/O Link |
| Operating Speed | 750 kbits/s |
| Connector Type | I/O Link connector (8 pins) |
Honeywell Series C Process Control Connectivity
Designed specifically for Honeywell Series C architecture, this interface cable supports high-integrity communication loops across distributed process control nodes. Furthermore, it manages data exchanges at a designated operating speed of 750 kbits/s, thereby ensuring synchronization between connected system components. Additionally, channel-to-channel isolation and structured shielding practices minimize signal degradation over short-run installations.
Frequently Asked Questions
Q: What is the primary communication speed supported by the 51202789-901 cable?
A: The cable supports a documented operating speed of 750 kbits/s for Series C I/O Link and Fiber Optic Extender applications.
Q: Is this cable compatible with standard Honeywell Series C I/O architectures?
A: Yes, Honeywell system documentation lists part number 51202789-901 specifically for Series C I/O Link Fiber Optic Extender interface connections.
Field Installation Guidelines
When installing the Honeywell 51202789-901 cable, technicians must ensure proper physical alignment of the 8-pin connectors to prevent pin bending or housing damage. Furthermore, route the cable away from high-voltage power conduits and variable frequency drives to prevent electromagnetic interference. Always verify continuous continuity and secure mechanical latching prior to powering on the control loop.
