Overview

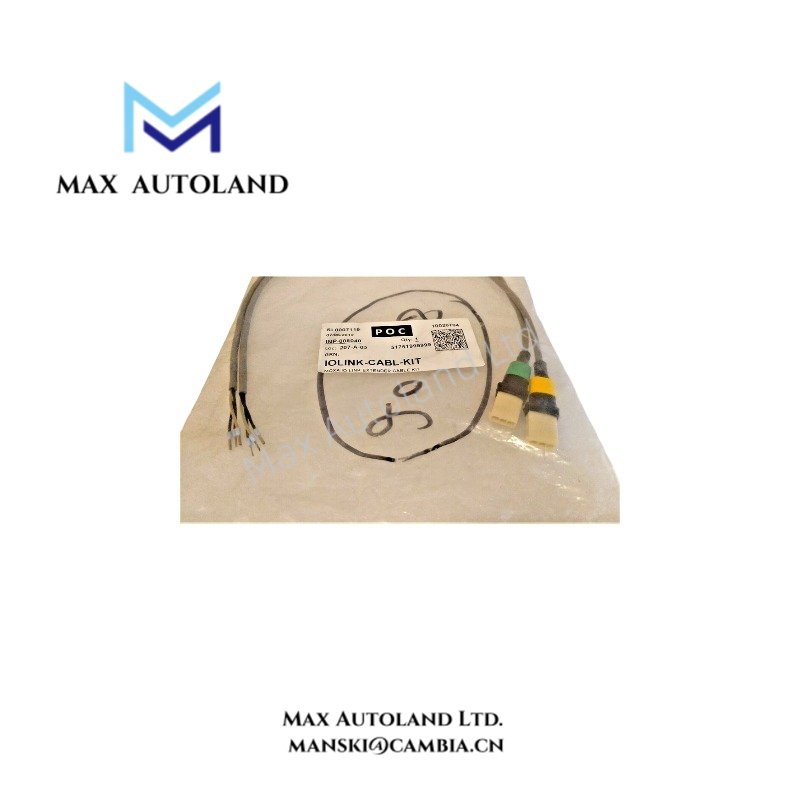

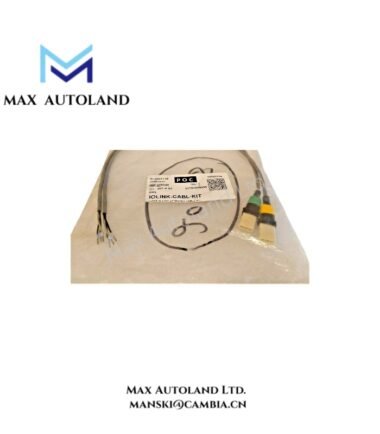

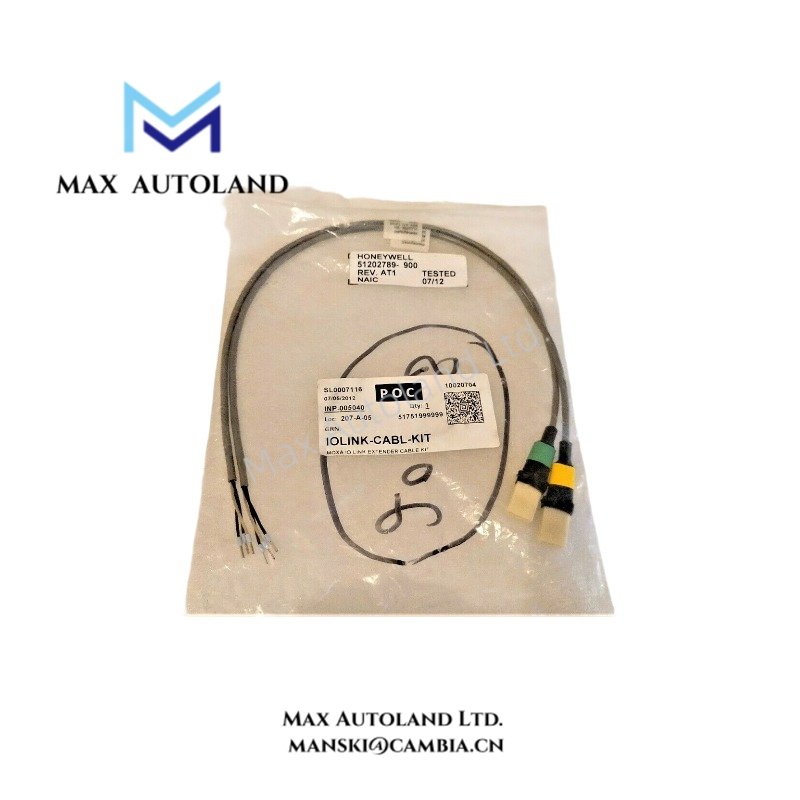

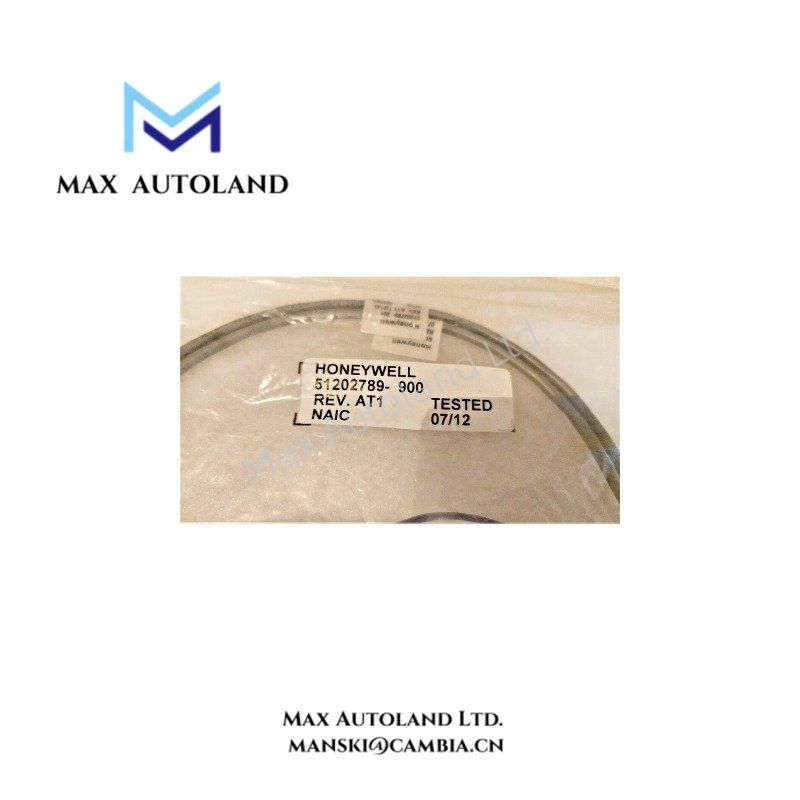

Configured for I/O Link connection extension in industrial automation control systems, the Honeywell 51202789-900 (51202789-900 I/O Link Extender Cable) provides direct physical and electrical execution. Furthermore, this shielded cable assembly enables precise equipment placement and secure signal transmission inside industrial cabinets.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202789-900 |
| Brand | Honeywell |
| Origin | Verified Industrial Source |
| Weight | Approximately 0.2 kg |
| Dimensions | Approximately 1 m length |
| Operating Temp | Standard industrial cabinet range (deg C) |
| Power Consumption | Passive pass-through cabling |
Channel-to-Channel Isolation and Signal Integrity
Designed for deployment in electrically noisy environments, this cable assembly integrates a fully shielded construction to suppress electromagnetic interference. Moreover, it maintains channel integrity across distributed I/O Link installations, preventing signal degradation over the extended physical path.
Frequently Asked Questions
Q: What is the exact primary function of model 51202789-900?
A: It provides an extended physical connection for compatible I/O Link nodes within Honeywell control system architectures.
Q: Can this cable assembly handle active protocol conversion?
A: No, it functions strictly as a passive shielded physical extension assembly rather than an active protocol converter or module.
Field Installation Guidelines
- Verify the physical pinout and connector compatibility against the target Honeywell control system hardware before final physical insertion.
- Secure the cable shield to the industrial cabinet grounding bar to maintain continuous electromagnetic interference protection.
- Prevent excessive bending radii during routing to protect the internal conductors and shielding braid from mechanical stress.
