Overview

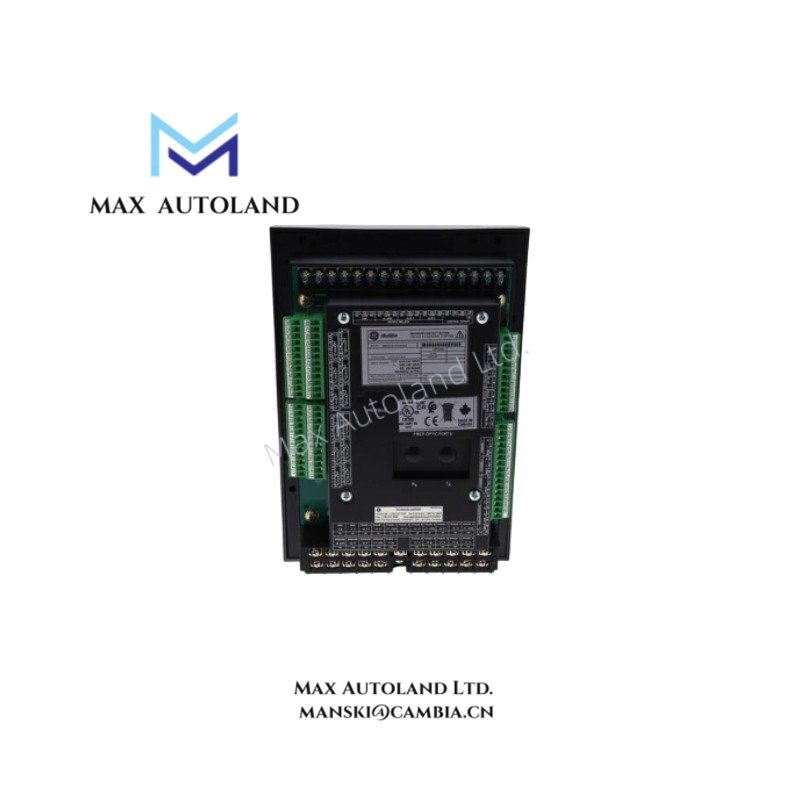

The GE Multilin F650BAEF1G0HIC, also cataloged as the F650 Feeder Protection and Bay Controller, operates as a dedicated hardware component for distribution feeder protection, circuit breaker control, and substation bay management within utility distribution networks.
Suffix Breakdown & Model Matrix
| Code Segment | Position / Feature | Configuration Details |
|---|---|---|
| F650 | Base Model | Multilin Feeder Protection and Bay Controller |
| B | Front Panel Display | Basic Display (Standard text/LCD interface) |
| A | Rear Serial Communication | Standard Redundant RS485 ports |
| E | Rear Ethernet Communication | Ethernet Option (10/100 Base TX or FX) |
| F | I/O Board Slot F | Standard configuration variant (digital I/O mix) |
| 1 | I/O Board Slot G | Type 1 I/O Configuration Board (16 Digital Inputs + 8 Digital Outputs) |
| G | I/O Board Slot H | Type G I/O Configuration Board variant |
| 0 | I/O Board Slot I | No I/O board installed in Slot I (Empty) |
| HI | Auxiliary Power Supply | High-range control voltage: 110-250 VDC / 120-230 VAC |
| C | Language / Customization | Chinese Language Interface / Regional firmware profile |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F650BAEF1G0HIC |
| Brand | GE (General Electric) |
| Base Series | Multilin F650 |
| Origin | Canada/USA |
| Operating Temp | -20 deg C to +60 deg C |
| Storage Temp | -40 deg C to +80 deg C |
| Enclosure Rating | IP52 (Front panel), IP20 (Rear chassis) |
| Mounting | 19-inch rack-mountable, 4U chassis height |
| Power Supply (DC) | 88 to 300 VDC (Nominal: 110-250 VDC) |
| Power Supply (AC) | 96 to 250 VAC (Nominal: 120-230 VAC, 50/60 Hz) |
| Protection Functions | 50P/51P, 50N/51N, 50G/51G, 67P, 67N, 59, 27, 81O, 81U, 50BF, 49 |
| Communication Protocols | IEC 61850, Modbus RTU/TCP, DNP 3.0, IEC 60870-5-103/104 |
| Front Panel Interfaces | RS232, USB (for Enervista software configuration) |
| Rear Interfaces | RJ45/Fiber Ethernet, RS485 |
Backplane Bus Communication and I/O Scaling
The F650 utilizes a high-speed backplane bus architecture for deterministic data exchange between the main processor board and distributed I/O modules. The Slot G Type 1 board provides 16 optically isolated digital inputs with wetting current specifications suitable for direct connection to circuit breaker auxiliary contacts and status transducers. The Slot H Type G board extends output capability for trip/close coil driving and alarm annunciation. FlexLogic programmable logic engine executes interlock and lockout schemes directly on the device, reducing dependency on external PLC hardware for bay-level automation sequences.
Frequently Asked Questions
Q: Can the F650BAEF1G0HIC operate on a 24 VDC control supply?
A: No. The “HI” suffix designates the high-range power supply (88-300 VDC / 96-250 VAC). For 24 VDC operation, a different power supply suffix variant is required.
Q: Is the Ethernet port on the “E” configuration suitable for direct connection to an IEC 61850 GOOSE network?
A: Yes. The “E” suffix includes the Ethernet option board supporting IEC 61850 MMS and GOOSE protocols over 10/100 Base TX or FX physical layers.
Q: Can I/O boards be swapped in the field without powering down the unit?
A: No. The F650 does not support hot-swapping of I/O boards. Power must be removed before inserting or removing boards from Slots F, G, H, or I to prevent backplane damage.
Field Installation Guidelines
Mount the unit in a standard 19-inch rack using the provided mounting brackets. Ensure rear chassis clearance of at least 6 inches for cable management and heat dissipation. For RS485 communication wiring, use shielded twisted pair cabling with the shield terminated to ground at one end only (preferably at the F650 side). Ethernet fiber connections require proper cleaning of connector ferrules prior to insertion. Verify all DC control voltage levels are within the 88-300 VDC range before applying power. Configure initial protection settings and I/O mapping via Enervista software through the front panel USB port before deploying to the live bay.
