Overview

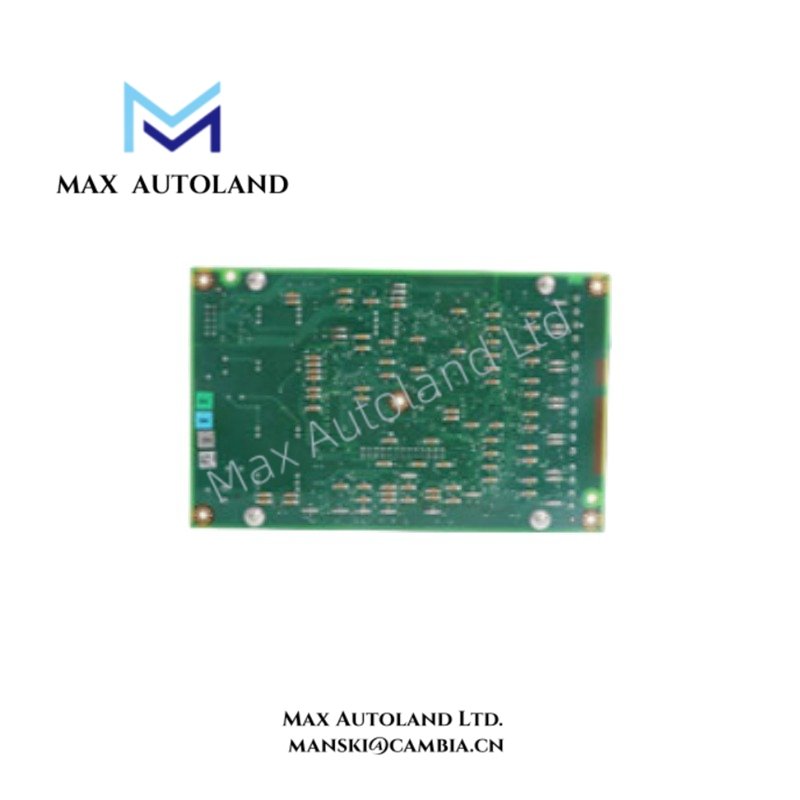

The ABB DFA010, also cataloged as the DFA 010 Digital Input Module, is described in the supplied information as a component for acquiring binary signals from field switches, sensors, and pushbuttons. However, its stated association with the Advant S800 I/O system and the listed electrical specifications have not been independently verified. Confirm the exact product designation and compatible hardware before using these details for system integration.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DFA010 |
| Brand | ABB |
| Product Type | Digital Input Module |
| Product Series | Advant S800 I/O – unverified |
| Number of Channels | 8 – unverified |
| Nominal Operating Voltage | 24 VDC – unverified |
| Signal Type | Binary on/off signals – as supplied |
| Isolation | 1500 V – unverified |
| Mounting | Compatible mounting unit and installation method require verification |
| Controller Compatibility | Requires confirmation against the official hardware documentation |
Industrial I/O Signal Characteristics
A digital input module detects discrete electrical states and makes the resulting channel states available to the control system. Before connecting field wiring, verify the input voltage range, switching thresholds, input current, polarity, and common-terminal arrangement against the manufacturer’s documentation.
The stated 24 VDC operating voltage and eight-channel configuration should be treated as provisional until the exact DFA010 hardware identity is confirmed. Do not apply the isolation rating or hot-swap capability to an installed unit without the applicable technical manual.
Frequently Asked Questions (FAQ)
Q: Can the ABB DFA010 be hot-swapped during operation?
A: Hot-swap support has not been confirmed for this model. Check the hardware manual and system configuration before removing or replacing the module under power.
Q: Does the DFA010 support eight 24 VDC digital inputs?
A: The supplied description lists eight digital input channels and a nominal 24 VDC operating voltage. Verify both specifications against the product label and official documentation before connecting field devices.
Q: Which ABB controller platforms are compatible with the DFA010?
A: Compatibility with Advant S800 I/O and System 800xA has not been verified. Confirm the module identity, termination hardware, and controller configuration before installation.
Field Installation Guidelines
- Verify identification: Compare the module label, ordering code, hardware revision, and terminal markings with the applicable ABB documentation.
- Check electrical ratings: Confirm the permitted input voltage, switching thresholds, polarity, and channel common arrangement before wiring.
- Route field wiring: Separate low-level signal cables from motor power conductors and other sources of electrical interference.
- Apply grounding practices: Follow the cabinet grounding design and the manufacturer’s shield termination instructions. Avoid creating unintended ground loops.
- Test channel operation: Apply approved test signals and confirm that the indicated input states match the controller diagnostics.
- Follow replacement procedures: Isolate power where required and observe the documented removal, installation, and commissioning procedure.
