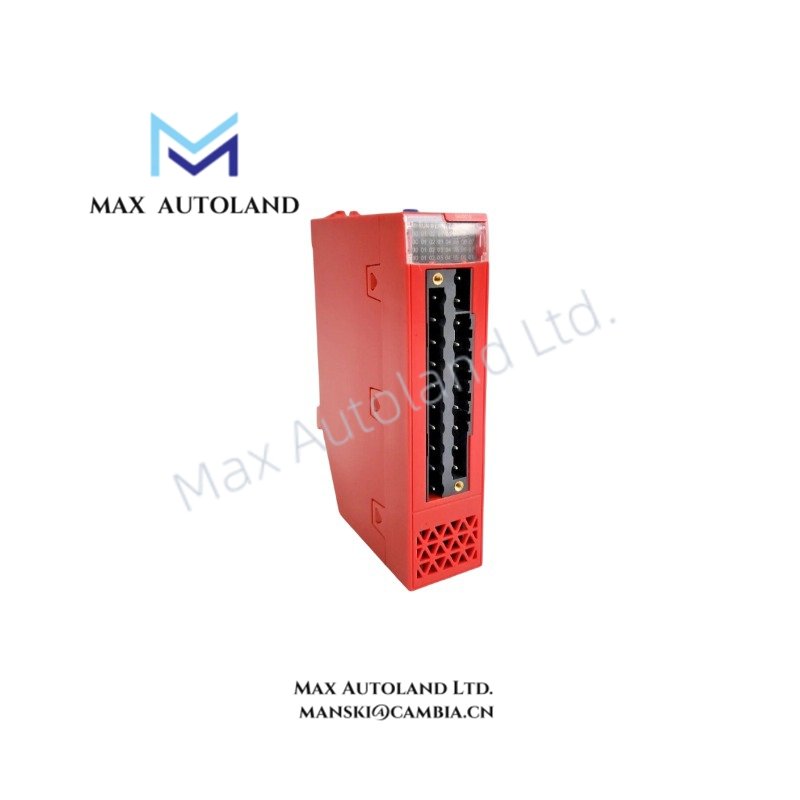

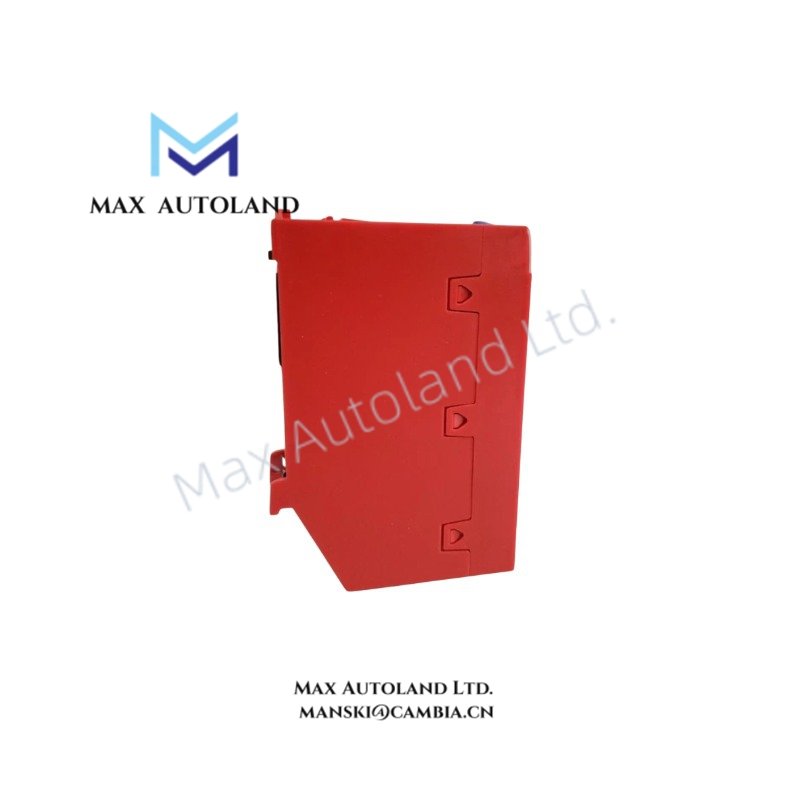

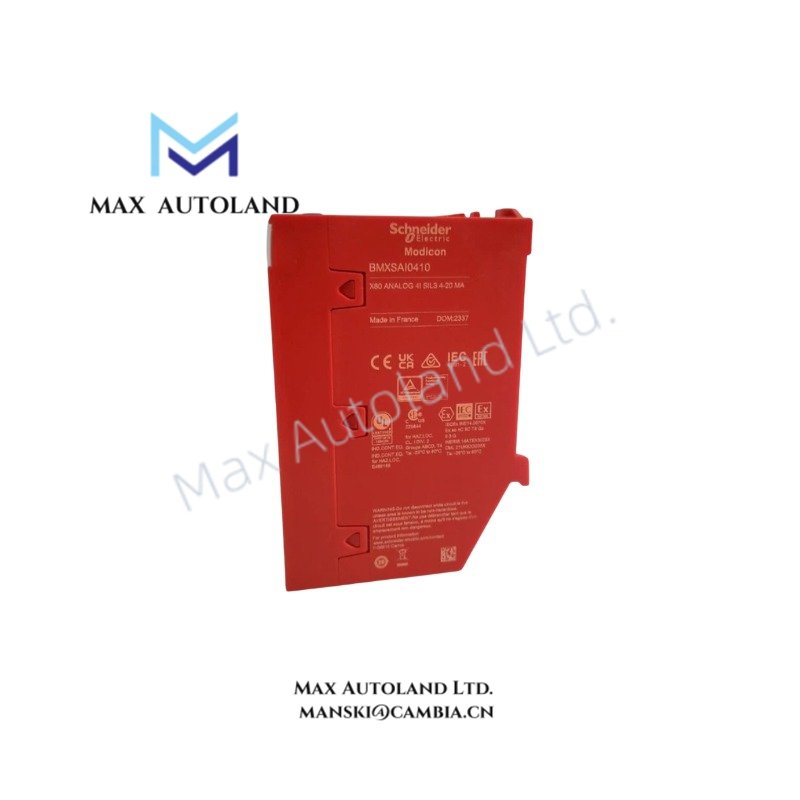

Configured for 4-20 mA signal acquisition in Modicon X80 I/O architectures, the Schneider Electric BMXSAI0410 (BMXSAI0410 analog input module) provides direct electrical conversion of four isolated current loop channels into digital values via the X80 backplane system.
Suffix Breakdown & Model Matrix
The model identifier BMXSAI0410 is treated as a single catalog number within the Modicon X80 analog input family. No officially published suffix segmentation or functional variant decoding is defined in the provided technical data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXSAI0410 |
| Brand | Schneider Electric |
| Origin | Not specified |
| Weight | 0.143 kg (net) |
| Dimensions | 5.4 cm x 17.9 cm x 25.8 cm (package) |
| Operating Temp | -25 to 60 deg C |
| Power Consumption | 3.3 VDC: 200 mA; 24 VDC: 115 mA |
| Analog Inputs | 4 channels |
| Input Type | 4-20 mA current loop |
| Resolution | 13 bits (0 to 12500 counts) |
| Conversion | 16-bit ADC processing |
| Input Impedance | 286 ohm |
| Sampling Cycle | 6 ms for 4 channels |
| Isolation | 500 VDC channel-to-channel; 1500 VDC channel-to-ground/backplane |
| Measurement Error | <= 0.3 percent of full scale (25 to 60 deg C) |
| Crosstalk Attenuation | >= 120 dB |
Schneider Electric Modicon X80 Backplane & I/O Bus Behavior
The BMXSAI0410 operates as a Modicon X80 distributed I/O node, exchanging digitized measurement frames through the backplane communication structure of the X80 rack system. Channel data is multiplexed into cyclic process images with deterministic refresh timing aligned to PLC scan cycles. The module supports high-density I/O scaling within the rack, where analog acquisition timing is synchronized to internal bus arbitration rather than external polling. Firmware-level compatibility is maintained through X80 platform flash management, enabling consistent mapping of 4-20 mA process variables into PLC application memory without external signal conditioning layers.
Frequently Asked Questions (FAQ)
Q: Does the BMXSAI0410 support hot swap during rack operation?
A: Hot swap capability depends on X80 rack configuration and system power isolation. In standard operation, module insertion/removal is expected under de-energized rack conditions to avoid backplane transient disturbance.
Q: How is channel isolation implemented between analog inputs?
A: Each channel uses isolated signal conditioning with 500 VDC channel-level separation and reinforced isolation to backplane and ground at 1500 VDC levels.
Q: What is the effect of backplane load on conversion timing?
A: Conversion timing remains fixed at 6 ms for four channels; backplane load affects data propagation latency to the PLC CPU but not ADC sampling intervals.
Field Installation Guidelines
Install the module into a compatible Modicon X80 rack slot with verified backplane seating. Maintain separation between analog signal cables and power conductors to reduce electromagnetic coupling into 4-20 mA loops. Shielded twisted pair conductors should be grounded at a single point, typically at the cabinet earth bar. Verify loop power stability before channel energization to prevent overcurrent conditions above 25 mA input tolerance. Ensure module locking mechanism is fully engaged to maintain backplane continuity and isolation integrity.
