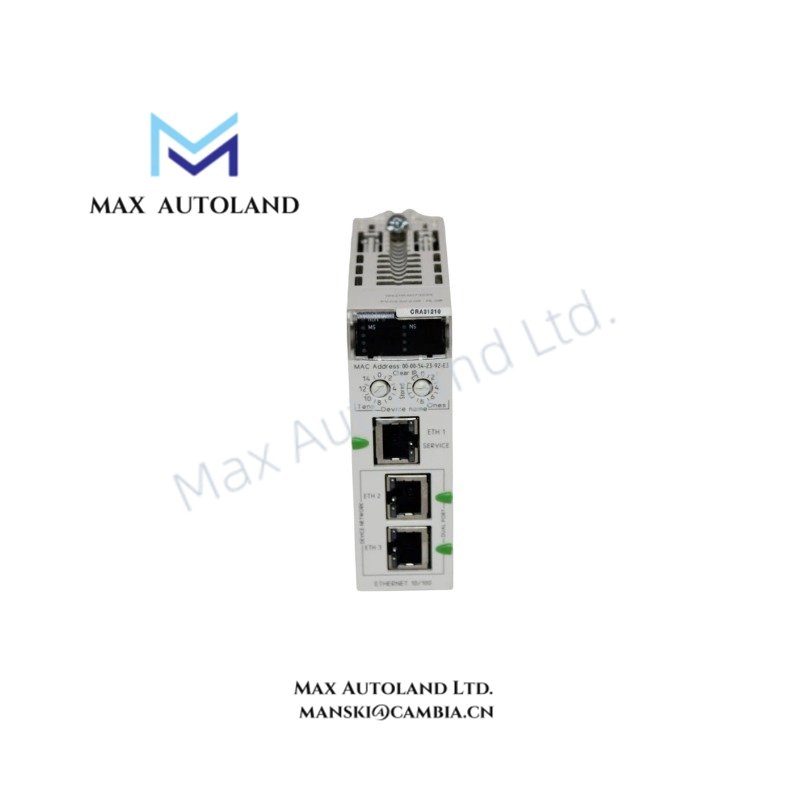

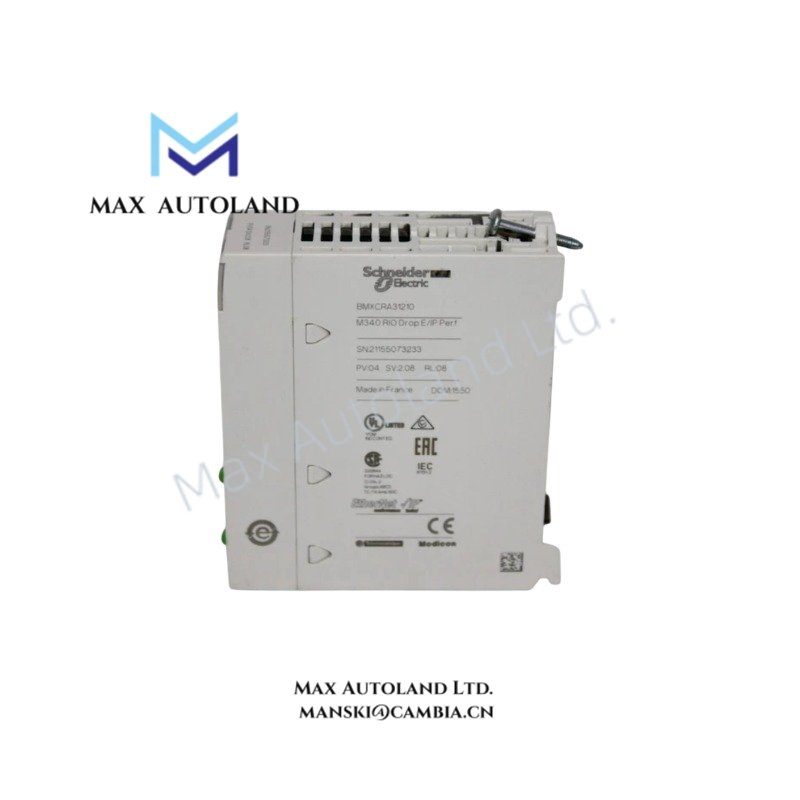

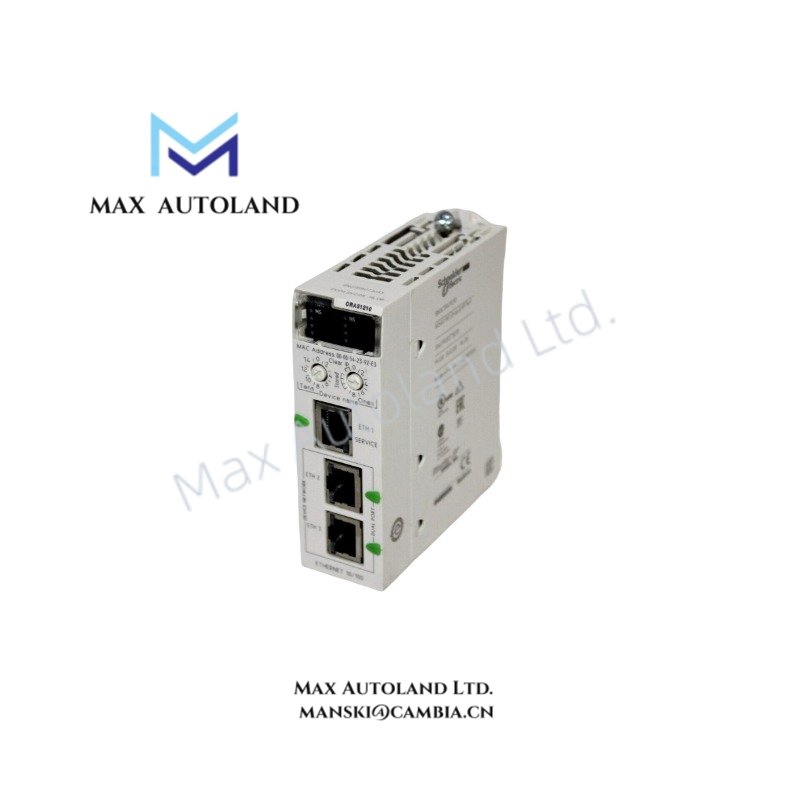

Schneider Electric BMXCRA31210 Modicon X80 RIO Drop E/IP Performance – Service port – Advanced features
Configured for remote I/O data exchange in Modicon X80 RIO network, the Schneider Electric BMXCRA31210, also cataloged as the BMXCRA31210 Ethernet RIO drop adaptor provides direct physical/electrical execution. It operates as a network interface node managing EtherNet/IP communication, backplane synchronization over Bus X, and cyclic I/O data publication between remote rack modules and the head adaptor.
Suffix Breakdown & Model Matrix
The designation BMXCRA31210 is treated as a single unified ordering reference. No officially published internal segmentation or functional suffix decomposition is defined in the provided technical dataset.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXCRA31210 |
| Brand | Schneider Electric |
| Origin | France |
| Weight | 270 g |
| Dimensions | 5.5 cm x 11 cm x 12.5 cm (package) |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Not specified |
| Communication Protocol | EtherNet/IP |
| Backplane Interface | Bus X remote backplane |
| Port Count | 3 Ethernet ports |
| Protection Degree | IP20 |
| Storage Temperature | -40 deg C to 85 deg C |
| Altitude | <= 2000 m operating |
EtherNet/IP Backplane Communication Characteristics (Schneider Electric PLC Platform)
Within Modicon X80 architectures, the BMXCRA31210 executes cyclic I/O exchange through deterministic EtherNet/IP mapping, synchronizing remote rack modules via Bus X backplane arbitration. The module handles input image collection and output image distribution to remote I/O heads while maintaining timestamped data acquisition at 10 ms resolution. Integrated diagnostic services include network status monitoring, topology loop validation (RSTP), and service-port configuration handling for IP parameter assignment. I/O scaling supports up to 1024 discrete channels and 256 analog channels depending on system configuration.
Frequently Asked Questions (FAQ)
Q: Does the BMXCRA31210 support hot insertion on the Modicon X80 backplane?
A: The module supports configuration change on the fly (CCOTF). Hot swap capability depends on rack power sequencing and backplane state consistency during insertion.
Q: What is the effect of RSTP on Ethernet topology behavior?
A: RSTP support enables loop protection in daisy-chain configurations, preventing broadcast storms while maintaining redundant path selection on the Ethernet ring.
Q: How is firmware or configuration applied to the service port?
A: The service port is used for IP parameter configuration and diagnostics access. Configuration changes are propagated through the Ethernet/IP management interface to the module runtime image.
Field Installation Guidelines
The module shall be installed in a Modicon X80 rack ensuring Bus X backplane continuity. Shielded Ethernet cabling is required for service and device ports, with proper grounding at the cabinet entry point. Maintain separation between power wiring and communication lines to reduce electromagnetic coupling. The IP20 enclosure rating requires installation inside a protective electrical cabinet. Ensure rack power is isolated before inserting or removing the module unless CCOTF conditions are explicitly supported by system configuration.
