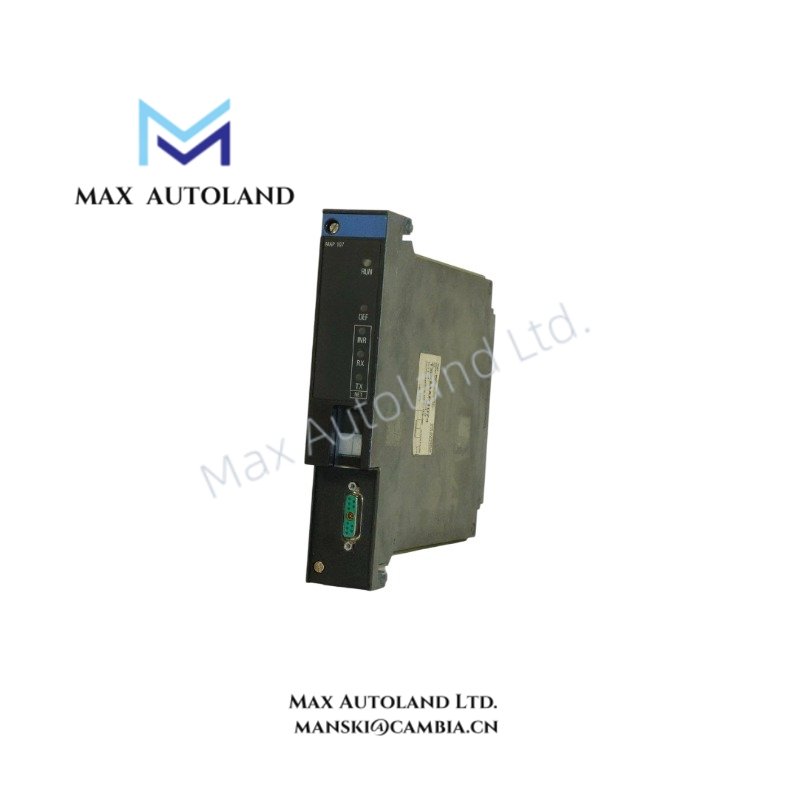

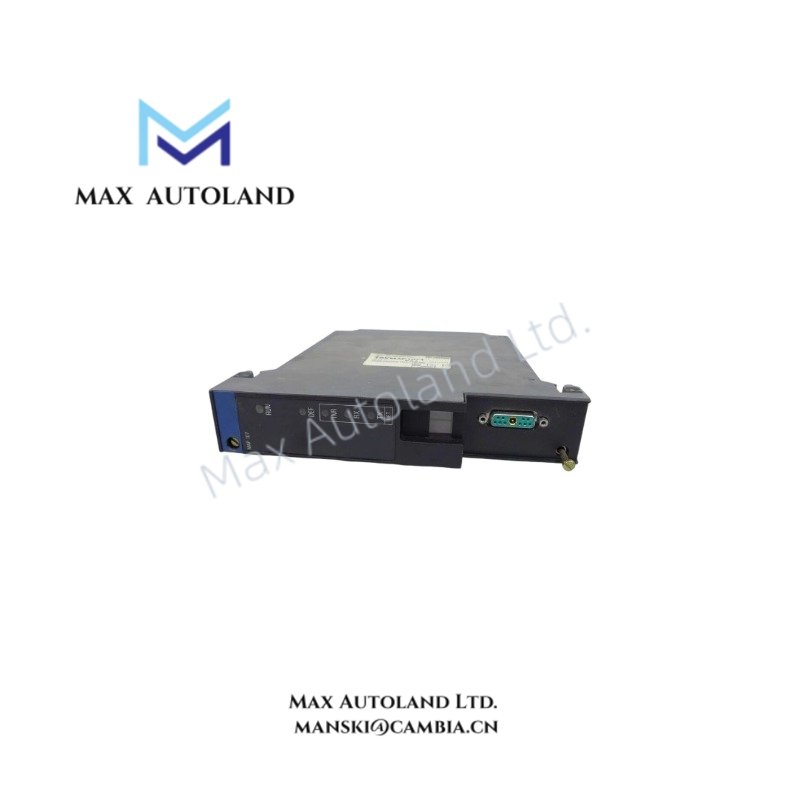

The Schneider Electric TSXMAP1074, also cataloged as the TSXMAP Mapway Communication Module, operates as a dedicated hardware component for deterministic data exchange within TSX Series 7 modular PLC networks. It processes MAPWAY, Modbus RTU, and Modbus ASCII protocols directly on the backplane bus.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model Brand | Schneider Electric |
| Origin | France |
| Weight | 1.16 kg |
| Dimensions | Standard TSX Module Format |
| Operating Temp | -20 degC to 60 degC |
| Power Consumption | 24 VDC |
Backplane Bus Communication Velocity Licences
The TSXMAP1074 utilizes the proprietary Schneider Electric backplane bus architecture to manage protocol conversion latencies between MAPWAY and standard Modbus networks. Firmware flash compatibility is restricted to TSX Series 7 processor firmware versions released prior to 2015. Network role configuration (Master/Slave) is executed via physical DIP switch settings on the module faceplate, requiring a full rack power cycle to validate state changes.
Frequently Asked Questions
Q: Does the TSXMAP1074 support hot-swap insertion into a powered TSX rack?
A: No. The module must be installed or removed only when the 24 VDC supply to the PLC rack is disconnected to prevent backplane bus contention and potential damage to the communication transceivers.
Q: What is the maximum cable length supported for Modbus RTU on this module?
A: For RS485 Modbus RTU, the maximum segment length is limited to 1200 meters with a characteristic impedance of 120 ohms and proper termination resistors installed at both ends of the bus.
Q: Is specific software configuration required for MAPWAY protocol operation?
A: Yes. Configuration requires the use of PL7 Pro software to map the module’s I/O table to the main processor’s memory words. Incorrect mapping results in communication timeouts.
Field Installation Guidelines
Mount the module onto a standard 35 mm DIN rail using the integrated locking clips. Ensure the rail is properly grounded to the cabinet chassis. Ethernet cabling must utilize shielded twisted pair (STP) cables with the shield drain wire connected to the module’s ground terminal. Torque connection screws to 0.5 Nm. Verify that the module’s IP20 rating is maintained by installing appropriate end brackets and covers to prevent contact with live circuits.
