Overview

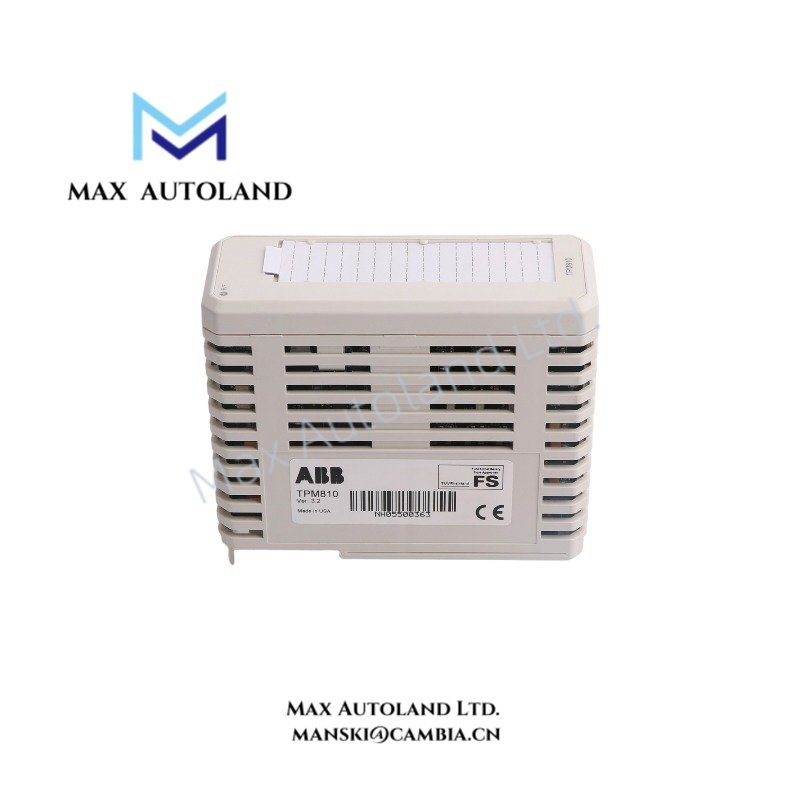

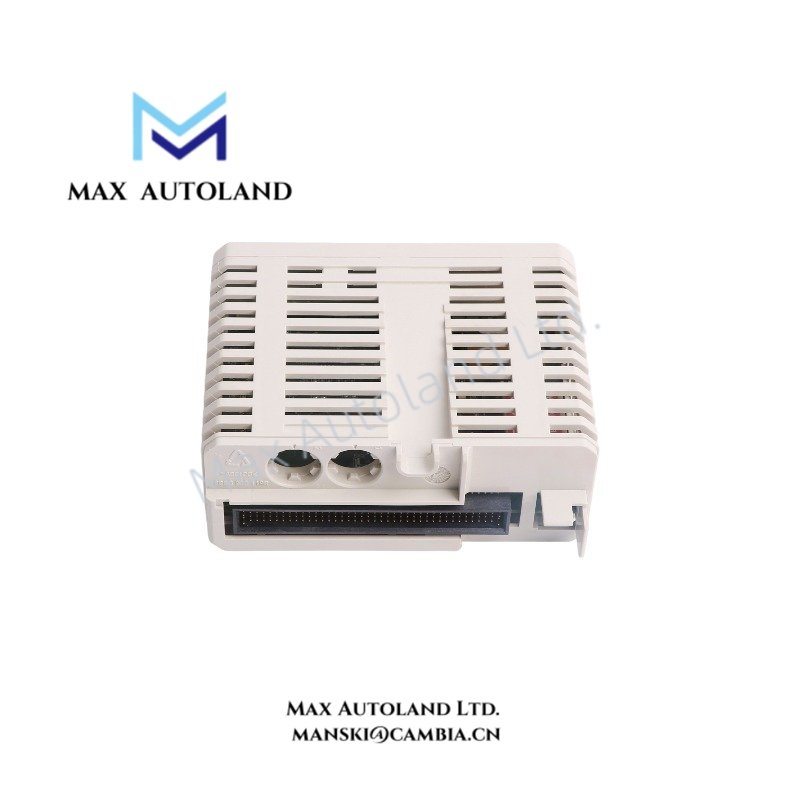

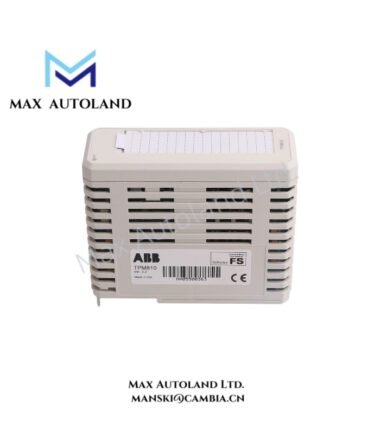

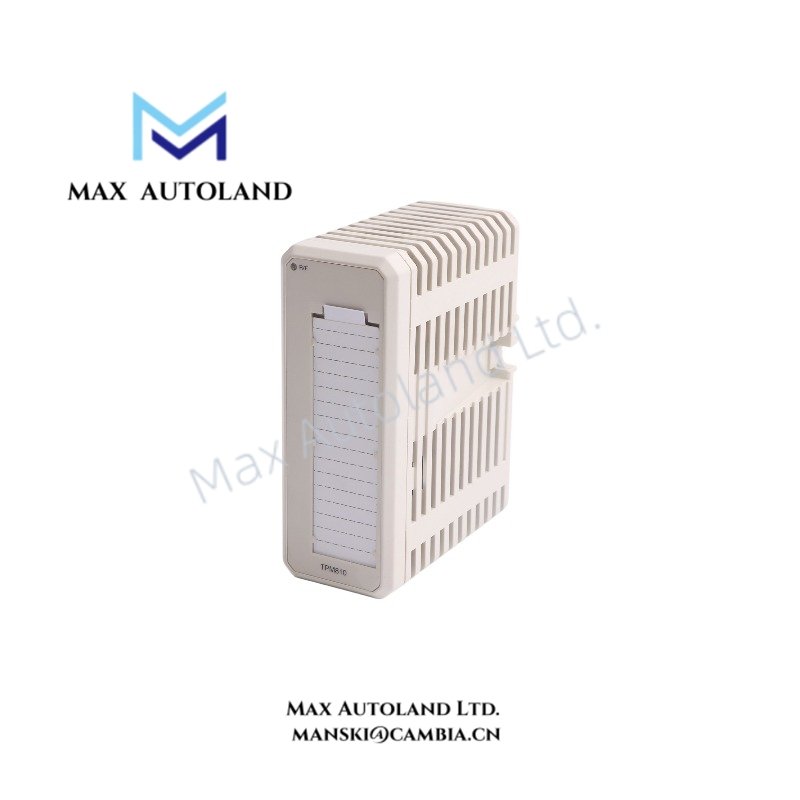

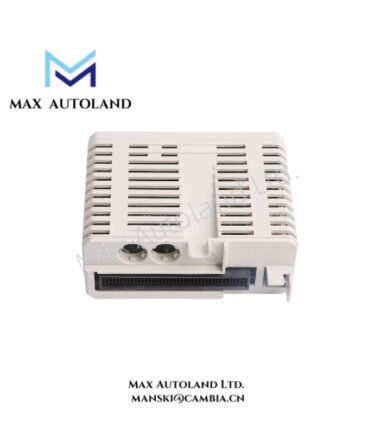

The ABB TPM810, also cataloged as the TPM810 Turbine Protection Module, operates as a dedicated hardware component for turbine monitoring and protection signal processing within ABB industrial control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TPM810 |
| Brand | ABB |
| Product Type | Turbine Protection Module |
| Weight | 0.16 kg |
| Dimensions | 4.5 x 10.6 x 12 cm (estimated shipping size) |
| Module Function | Turbine protection signal monitoring and processing |
| System Compatibility | ABB industrial automation and control architectures |
| Mounting Method | Rack or module carrier installation |
| Signal Processing | Dedicated protection and interface processing functions |
| Diagnostic Function | Module status monitoring through system diagnostics |
Backplane Bus Communication and Industrial Control Integration
The ABB TPM810 operates as an industrial control module within ABB automation architectures. It exchanges control information through the system backplane interface and supports coordinated operation with connected controller units.
Furthermore, the module design follows ABB modular hardware concepts, allowing integration with compatible control racks and field interface components. The TPM810 processes protection-related signals and transfers diagnostic information to higher-level control applications.
The module supports firmware-managed operation within ABB controller environments. Therefore, system engineering teams can maintain consistent configuration management across installed automation hardware.
Frequently Asked Questions
Q: What is the primary function of the ABB TPM810 module?
A: The ABB TPM810 functions as a turbine protection module that processes monitoring signals and supports protection-related control tasks within ABB automation systems.
Q: Does the available specification confirm TPM810 redundant operation capability?
A: The provided data does not confirm redundancy configuration details. Engineers should verify redundancy support according to the specific ABB system architecture and controller configuration.
Q: What installation considerations apply to the TPM810 module?
A: The module should be installed according to ABB rack installation requirements, including correct module seating, grounding practice, and controlled cable routing.
Field Installation Guidelines
Install the ABB TPM810 in the designated ABB module carrier or rack position according to the system hardware configuration manual.
Ensure that the module connector is fully engaged before system commissioning. Additionally, maintain proper cabinet grounding and separate signal wiring from high-voltage power cables to reduce electromagnetic interference.
Use shielded signal cables where required by the turbine protection application. Connect cable shields according to the plant grounding standard and avoid unnecessary grounding loops.
Before replacing or removing the module, confirm the system maintenance procedure and verify whether the installed configuration permits online module exchange.
