Overview

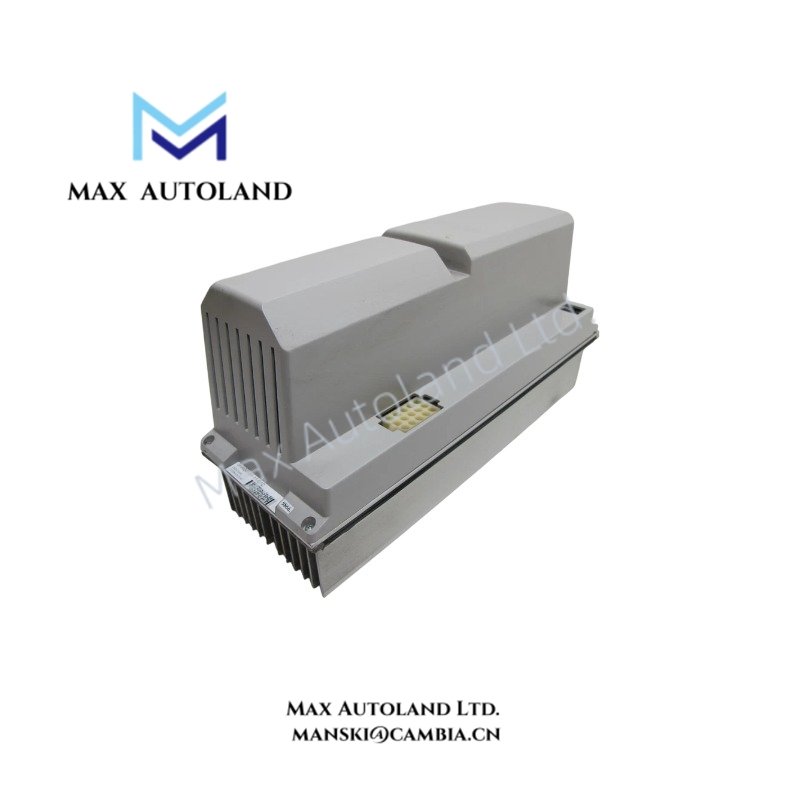

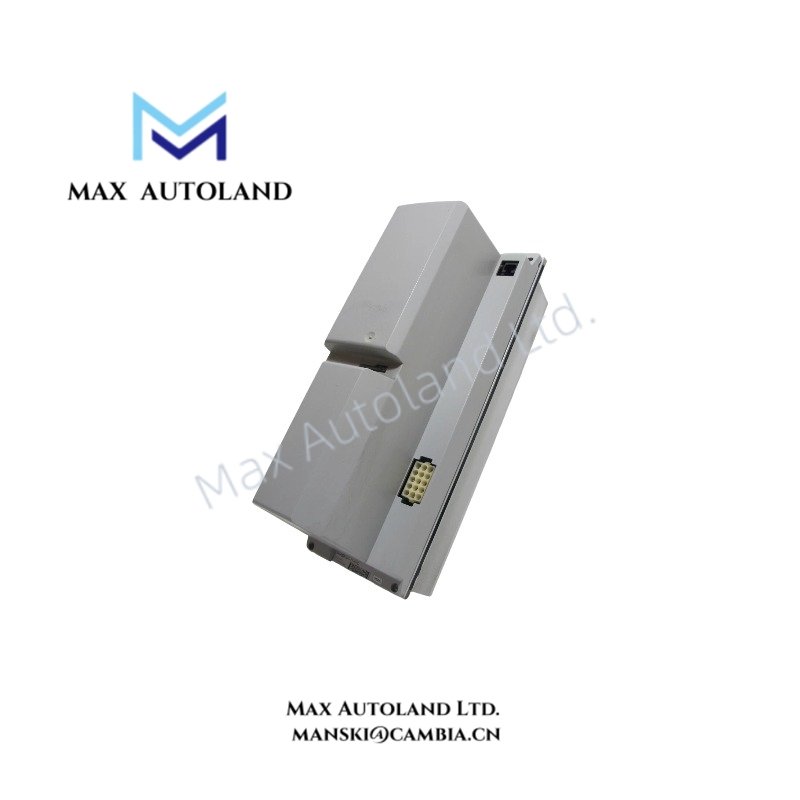

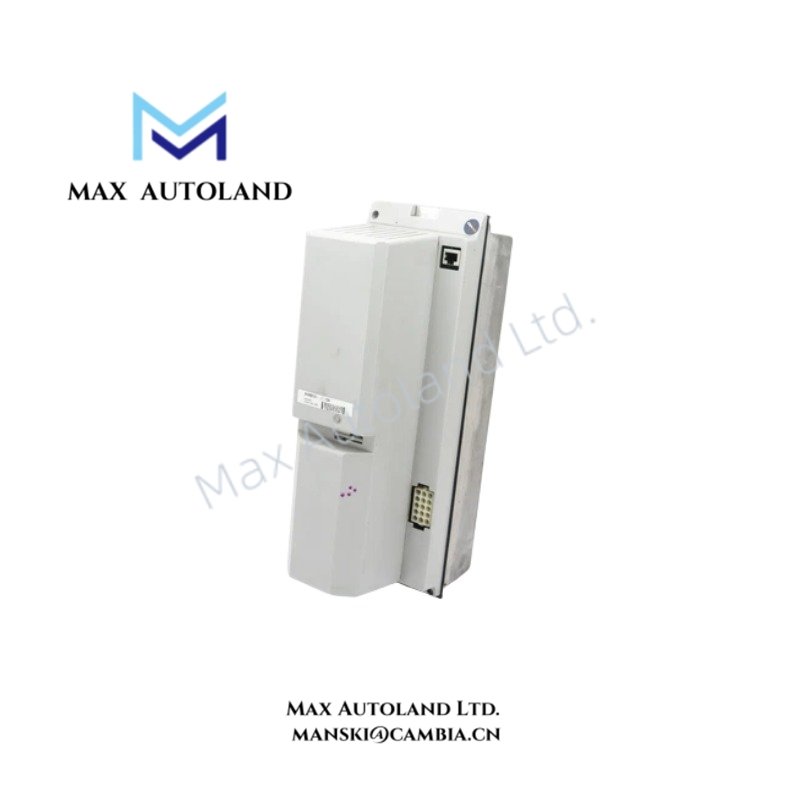

Configured for axis motor current regulation and motion control execution in ABB S4C and S4C+ robot controller platforms, the ABB DSQC346E (DSQC346 Servo Drive) provides direct electrical power conversion and feedback-based servo control for robot axis operation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC346E |
| Brand | ABB |
| Product Type | Servo Drive |
| Origin | Sweden |
| Weight | 0.4 kg |
| Dimensions | 18.6 x 6.1 x 6 cm |
| Operating Temp | 0 deg C to +55 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | 5-95% RH, non-condensing |
| Input Voltage | 3-phase 200-480 V AC, +/-10% |
| Input Frequency | 50/60 Hz, +/-5% |
| Power Range | 2.3 kW to 7.5 kW |
| Output Current | 6 A to 18 A RMS |
| Control Method | Field-Oriented Control |
| Control Bandwidth | 1.5 kHz |
| Speed Range | 0-6000 RPM |
| Positioning Accuracy | +/-1 encoder count |
| Application System | ABB S4C and S4C+ Robot Controller Systems |
| Tariff Code | 8537101190 |
| Estimated Shipping Size | 18.6 x 6.1 x 6 cm |
| Power Consumption | Dependent on connected motor load and axis operating conditions |
Industrial Drive Control and Firmware Compatibility
The ABB DSQC346E servo drive applies field-oriented control technology to regulate motor torque, speed, and position feedback. Therefore, it processes encoder feedback signals and maintains closed-loop axis control within ABB robotic motion systems.
In addition, ABB drive architecture uses controller communication and firmware compatibility management to coordinate axis modules, parameter settings, and motion commands. The DSQC346E supports precise servo regulation through integrated current control loops and feedback processing.
The drive module operates with ABB industrial motion platforms where deterministic control timing and synchronized axis movement are required. Furthermore, the servo interface supports position control accuracy within +/-1 encoder count under specified operating conditions.
Frequently Asked Questions
Q: What motor control method does the ABB DSQC346E use?
A: The DSQC346E uses Field-Oriented Control to regulate motor torque, speed, and position through closed-loop servo feedback.
Q: What input power range does the DSQC346E support?
A: The module accepts 3-phase 200-480 V AC input and supports motor power ranges from 2.3 kW to 7.5 kW.
Q: Which controller systems are compatible with the DSQC346E?
A: The DSQC346E is designed for ABB S4C and S4C+ robot controller systems with compatible servo drive configurations.
Field Installation Guidelines
Install the ABB DSQC346E inside the specified ABB robot controller cabinet using the original mounting position and approved connection interfaces.
Verify that the incoming 3-phase AC supply matches the specified voltage and frequency range before energizing the drive module. Use appropriate grounding methods to reduce electrical noise and protect encoder feedback circuits.
Route motor power cables separately from low-level feedback wiring. Maintain proper shielding practices for encoder cables, and connect cable shields according to ABB cabinet grounding requirements.
Before operation, check motor connections, encoder feedback signals, drive parameters, and controller communication status. Confirm that the servo axis responds correctly during commissioning tests.
