Overview

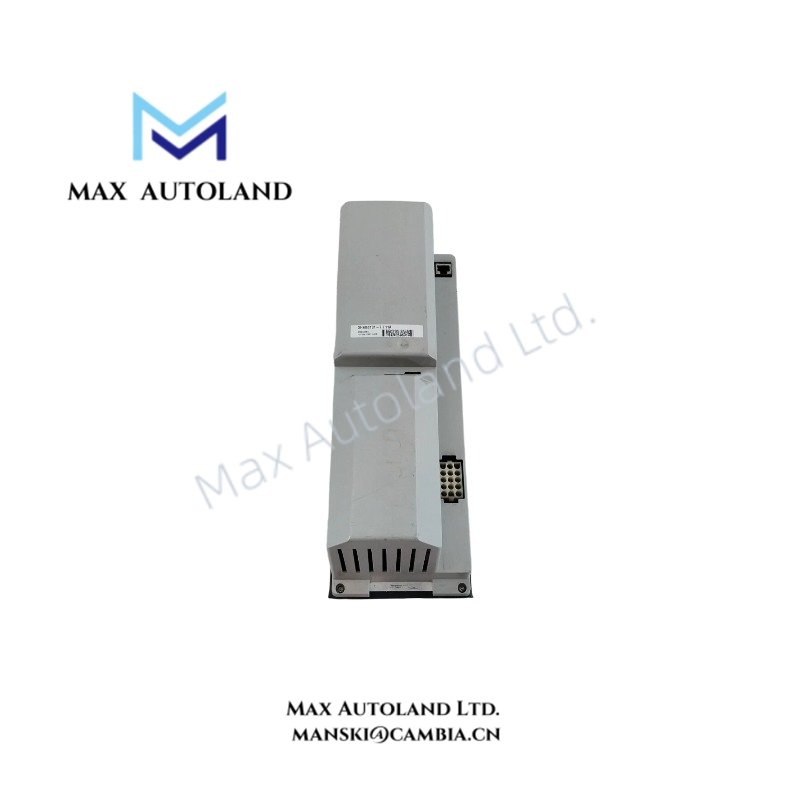

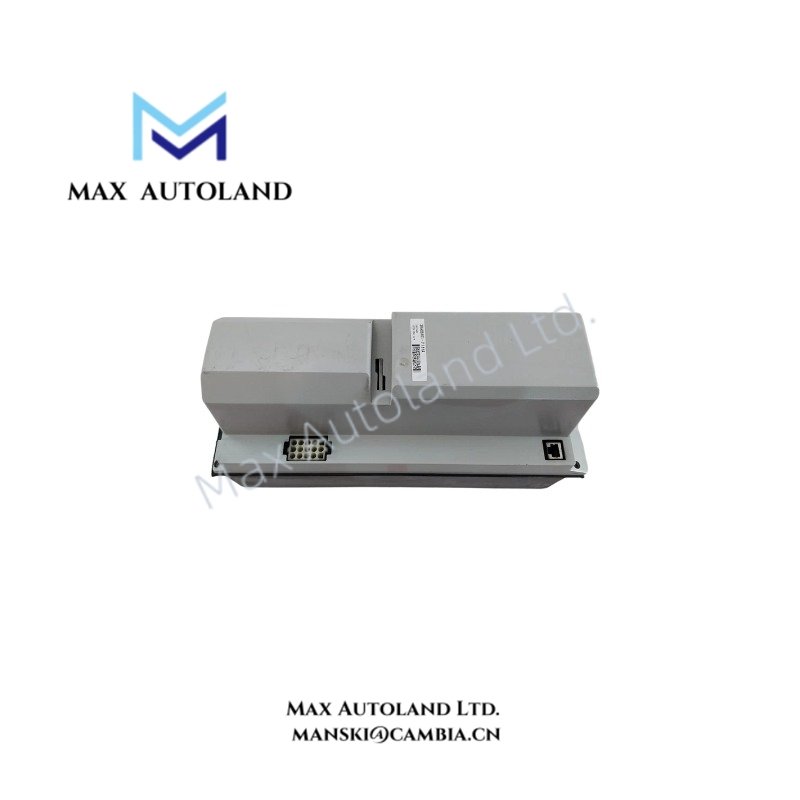

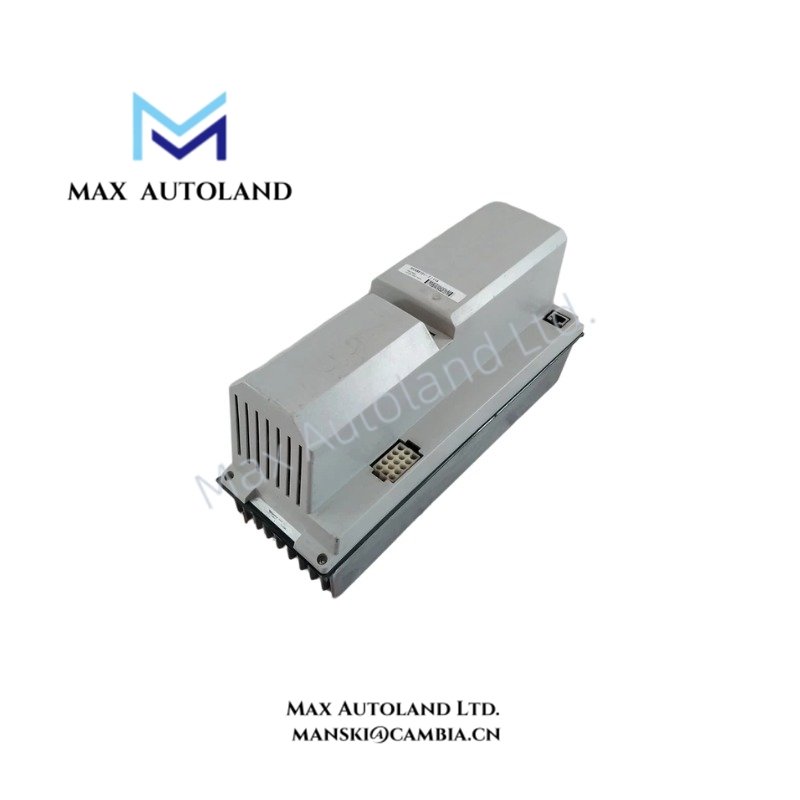

Configured for servo motor current regulation in ABB S4C and S4C+ robot controller systems, the ABB DSQC346C (DSQC346C Servo Drive Unit) provides direct electrical execution for axis power control and motion feedback response. The module controls motor power conversion for robotic axes through regulated drive output signals.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC346C |
| Brand | ABB |
| Part Number | 3HAB8101-7 |
| Product Type | Servo Drive Units |
| System Compatibility | ABB S4C and S4C+ Robot Controllers |
| Application | Robot axis servo motor control and power amplification |
| Component Function | Rectifier and servo drive unit for robotic motion control |
| Input Voltage | 3-phase 200-480 VAC (±10%) |
| Frequency | 50/60 Hz (±5%) |
| Power Range | 3.0 kW |
| Peak Current | 18 A |
| Output Current | 6 A RMS |
| Switching Frequency | 8 kHz (PWM) |
| Cooling Method | Forced air cooling with integrated heatsink assembly |
| Enclosure Rating | IP20 |
| Origin | Sweden |
| Weight | Approx. 5.5 kg to 6.5 kg |
| Dimensions | ABB S4C/S4C+ modular drive cabinet profile |
| Operating Temp | Industrial cabinet operating environment |
| Power Consumption | Determined by connected servo motor load and drive operation |
ABB Industrial Drive Control and Communication Features
The ABB DSQC346C operates within ABB robotic controller architectures and manages the electrical conversion required for servo axis movement. It receives motion commands from the controller system and regulates output current to connected servo motors.
Furthermore, the drive unit supports PWM-based motor control with an 8 kHz switching frequency. This control method enables precise current regulation for acceleration, deceleration, and positioning sequences in robotic applications.
The DSQC346C integrates protective functions for electrical operation, including monitoring of overcurrent, overvoltage, undervoltage, and thermal conditions. In addition, the module supports ABB controller firmware compatibility requirements within the S4C and S4C+ hardware platform.
Frequently Asked Questions
Q: Is the ABB DSQC346C a standalone robot controller module?
A: No. The DSQC346C functions as a servo drive unit inside ABB S4C and S4C+ robot controller systems. It requires integration with the controller cabinet and compatible servo motors.
Q: What motor control function does the DSQC346C perform?
A: The module regulates electrical power output to robot axis servo motors by controlling current through PWM drive technology.
Q: Does the DSQC346C support field replacement?
A: The module is designed as a replaceable cabinet-mounted drive component. Technicians must verify controller compatibility, wiring configuration, and electrical isolation before replacement.
Field Installation Guidelines
Install the ABB DSQC346C inside the designated S4C or S4C+ controller cabinet position according to ABB cabinet layout requirements.
Verify all power connections before energizing the module. Check phase wiring, grounding connections, and motor cable routing to prevent electrical interference.
Maintain proper airflow around the drive assembly because the module uses forced air cooling. Avoid blocking ventilation paths or placing heat-generating components near the drive unit.
Separate motor power cables from low-level signal wiring where possible. Use appropriate cable shielding and connect shield layers according to industrial grounding practices.
Before commissioning, inspect connector seating, verify axis configuration parameters, and confirm that the robot controller recognizes the installed drive unit.
