Overview

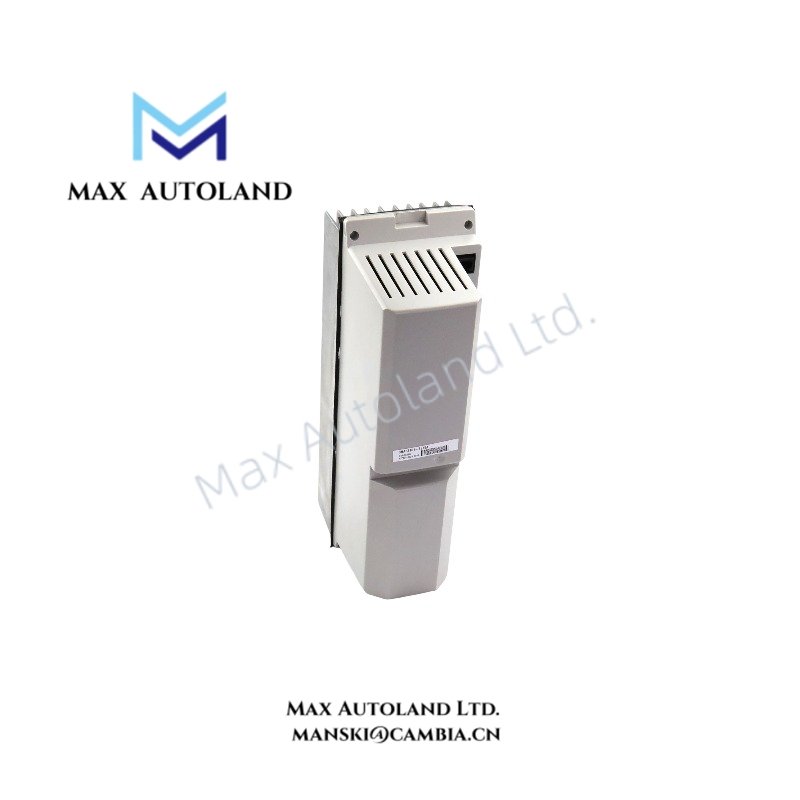

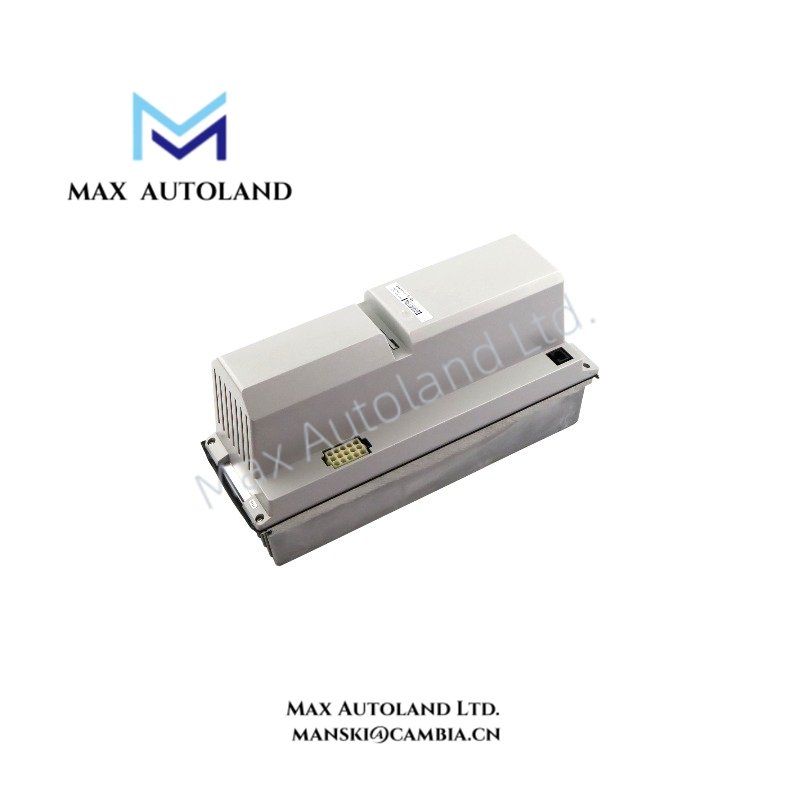

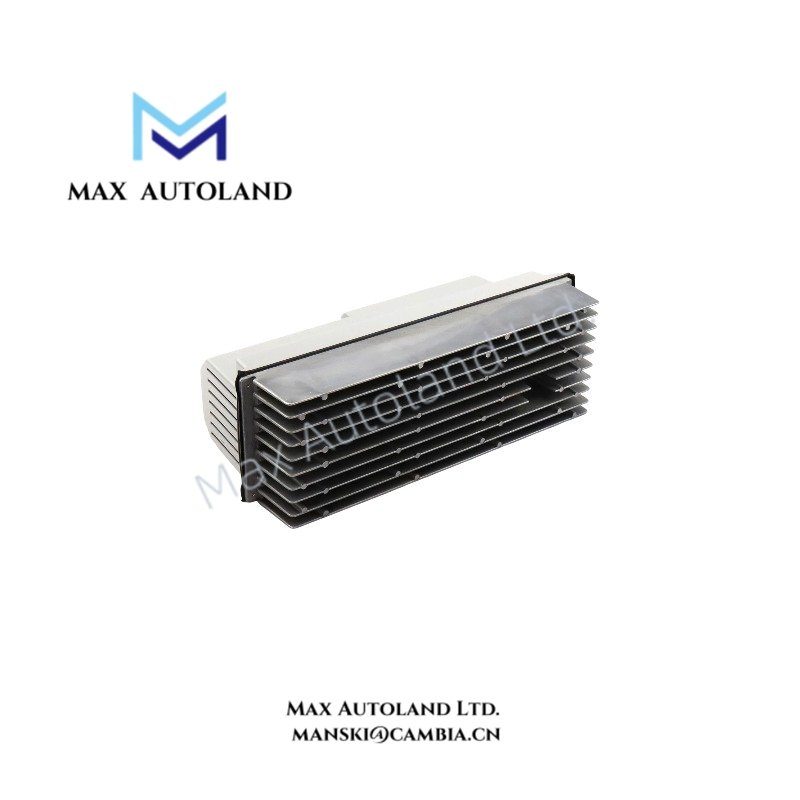

Configured for servo power regulation in ABB S4, S4C, and S4C+ robot controller platforms, the ABB DSQC346G 3HAB8108-8 (DSQC346G Drive Unit GT) provides direct electrical execution for robotic axis motor control by converting controller commands into regulated motor currents.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC346G |
| Brand | ABB |
| Part Number | 3HAB8108-8 |
| Product Type | Drive Unit GT / Servo Drive Power Module |
| Application | ABB S4 / S4C / S4C+ Robot Controller Systems |
| Origin | Sweden |
| Weight | Approx. 0.75 kg |
| Dimensions | Approx. 13.2 cm x 5.3 cm x 6.5 cm |
| Power Consumption | Determined by robot axis load and controller power configuration |
| Cooling Method | Passive or forced-air cooling through controller cabinet airflow |
| Control Function | Servo motor speed, torque, and position regulation |
| Electrical Function | Converts motion commands into controlled axis motor current output |
Industrial Drive Control and Firmware Compatibility
The ABB DSQC346G operates as an axis drive power module inside ABB robot controller cabinets. It receives motion commands from the controller CPU and regulates electrical output for connected servo motors. Therefore, the module maintains coordinated axis movement through current control and feedback processing.
The DSQC346G supports ABB controller hardware architectures that require compatible firmware recognition. In addition, firmware flash compatibility must be verified when replacing an existing drive unit because controller revisions may define supported hardware configurations.
For ABB industrial drive systems, backplane bus communication velocity and controller interface timing affect command transmission between the CPU system and the drive module. Furthermore, correct module addressing and firmware matching maintain stable communication within the robot control cabinet.
Frequently Asked Questions
Q: What is the main function of the ABB DSQC346G module?
A: The DSQC346G functions as a Drive Unit GT power module. It regulates electrical power delivered to robot servo axes according to motion commands from the ABB controller.
Q: Can the DSQC346G replace other DSQC346 series drive units directly?
A: Replacement compatibility depends on controller type, firmware revision, and hardware configuration. The installed controller documentation should be checked before replacement.
Q: Does the DSQC346G require special installation conditions?
A: The module requires correct cabinet mounting, proper power isolation, and compatible cooling airflow. Installation must follow ABB robot controller maintenance procedures.
Field Installation Guidelines
- Disconnect the main power supply before removing or installing the DSQC346G module.
- Allow internal DC-link capacitors to discharge before handling the drive unit.
- Verify connector alignment before inserting the module into the controller chassis.
- Maintain proper cabinet airflow to prevent thermal stress during operation.
- Inspect power terminals and signal connectors for contamination, oxidation, or mechanical damage.
- Route motor power cables separately from sensitive feedback and communication wiring to reduce electrical interference.
- Confirm controller firmware compatibility before commissioning the replacement module.
- Perform axis calibration and motion verification after installation according to ABB robot maintenance procedures.
