Overview

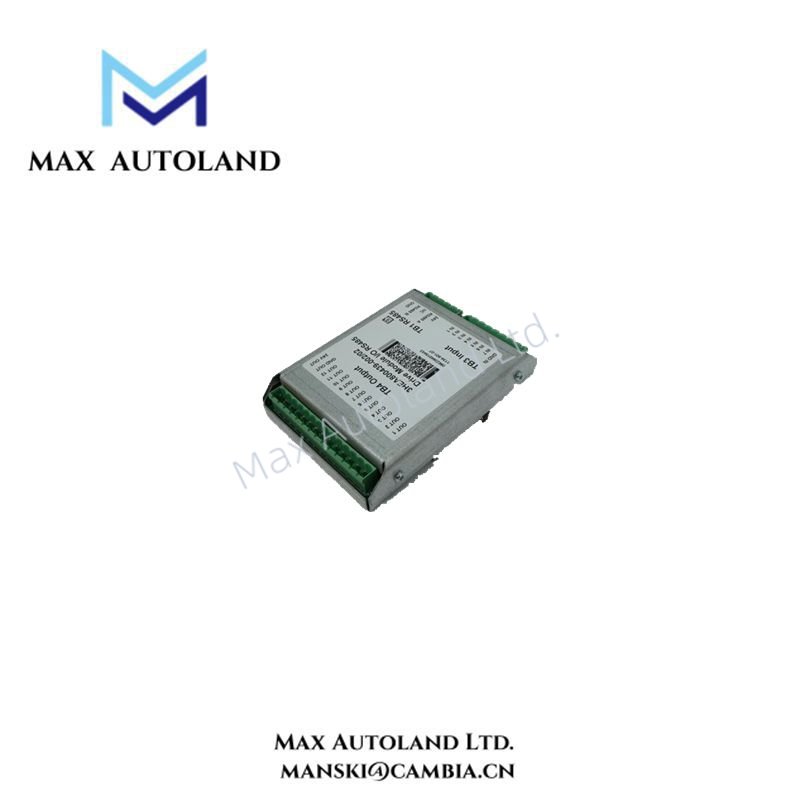

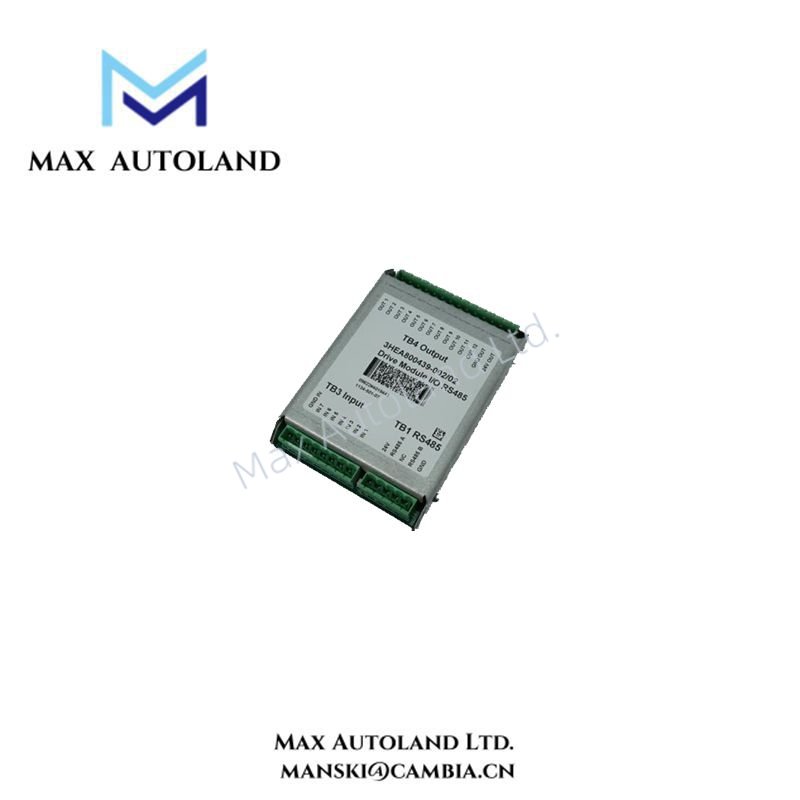

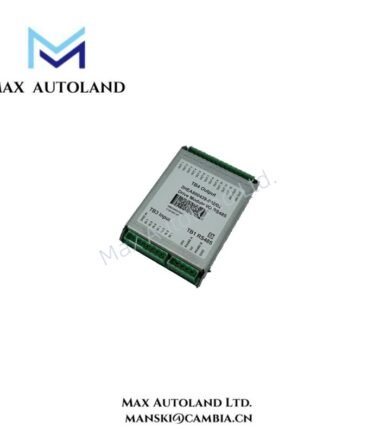

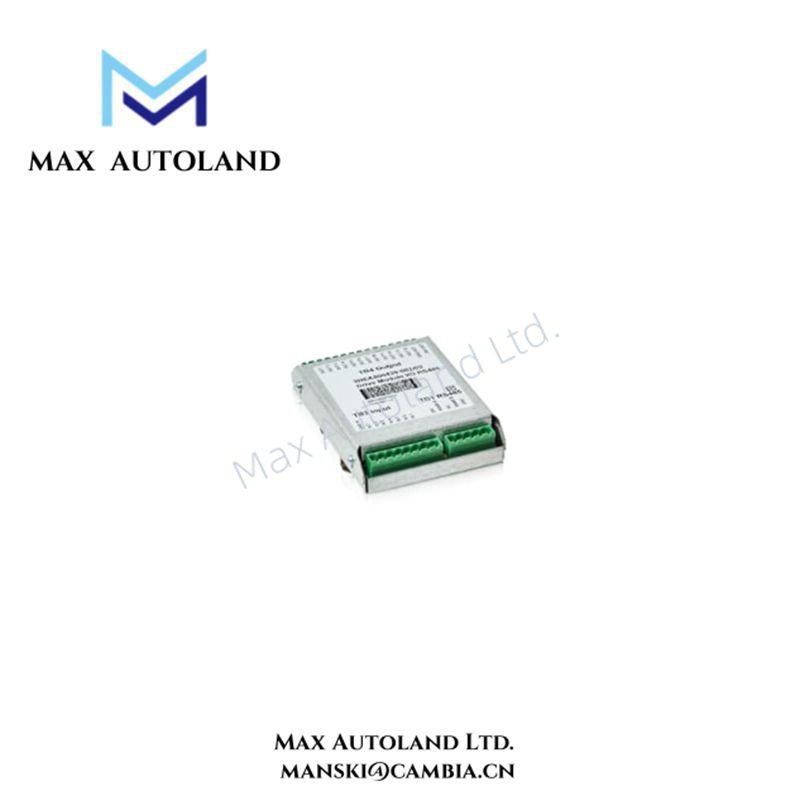

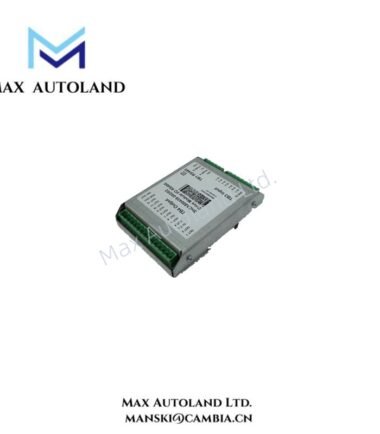

The ABB DSQC651 3HEA800439-002 module expands I/O capabilities for ABB DSQC robotic systems. It handles both digital and analog inputs/outputs, enabling enhanced drive control, signal monitoring, and inter-module communication. Engineers use it to integrate varying sensors and actuators without adding extra control boards.
Specification
| Parameter | Specification |
|---|---|
| Model | DSQC651 3HEA800439-002 |
| Manufacturer | ABB |
| Module Type | I/O Drive Module |
| Digital Inputs | 8 opto-isolated, 24 VDC |
| Digital Outputs | 8 opto-isolated |
| Analog Outputs | 2 outputs, 12-bit resolution, 0-10 VDC or 4-20 mA |
| Isolation | Galvanic isolation between analog outputs and controller electronics |
| Operating Voltage | 24 VDC |
| Weight | Approx. 0.27 kg |
| Dimensions (L × W × H) | Approx. 135 × 85 × 33 mm |
| Application | ABB DSQC Robots – drive, actuator, and sensor I/O |
FAQ
Q1: Is the ABB DSQC651 3HEA800439-002 module brand new and original?
A1: Yes, we supply only original ABB modules, delivered new from factory.
Q2: What is the typical delivery lead time?
A2: We ship between 3 days to 2 weeks depending on stock and order size.
Q3: Which couriers do you use for shipping?
A3: We commonly use DHL, FedEx, or UPS for safe and timely delivery.
Q4: What’s the voltage requirement?
A4: This module operates at 24 VDC for both digital inputs/outputs and analog parts.
Q5: What protection does this module include?
A5: It features opto-isolation on digital I/O and galvanic isolation on analog outputs to protect controller electronics.
