Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB RET615 |
| Brand | ABB |
| Series | Relion 615 Series |
| Product Type | Transformer Protection and Control IED |
| Application | Two-winding transformers, unit transformers, generator-transformer blocks |
| Protection Functions | Transformer differential protection, REF protection, overcurrent, voltage, frequency, thermal overload |
| Enclosure Design | Draw-out plug-in case |
| Front Panel Protection | IP54 |
| Power Supply | 24…60 VDC or 48…250 VDC / 100…240 VAC |
| Binary Inputs | Configurable, up to 14 BI depending on hardware configuration |
| Binary Outputs | Configurable, up to 13 BO depending on hardware configuration |
| Analog Inputs | Up to 10 CT/VT current and voltage inputs |
| Communication Protocols | IEC 61850 Ed. 1 and Ed. 2, Modbus RTU/TCP, DNP3, IEC 60870-5-103 |
| Ethernet Redundancy | PRP and HSR support |
| Time Synchronization | IEEE 1588 v2 PTP, SNTP, IRIG-B |

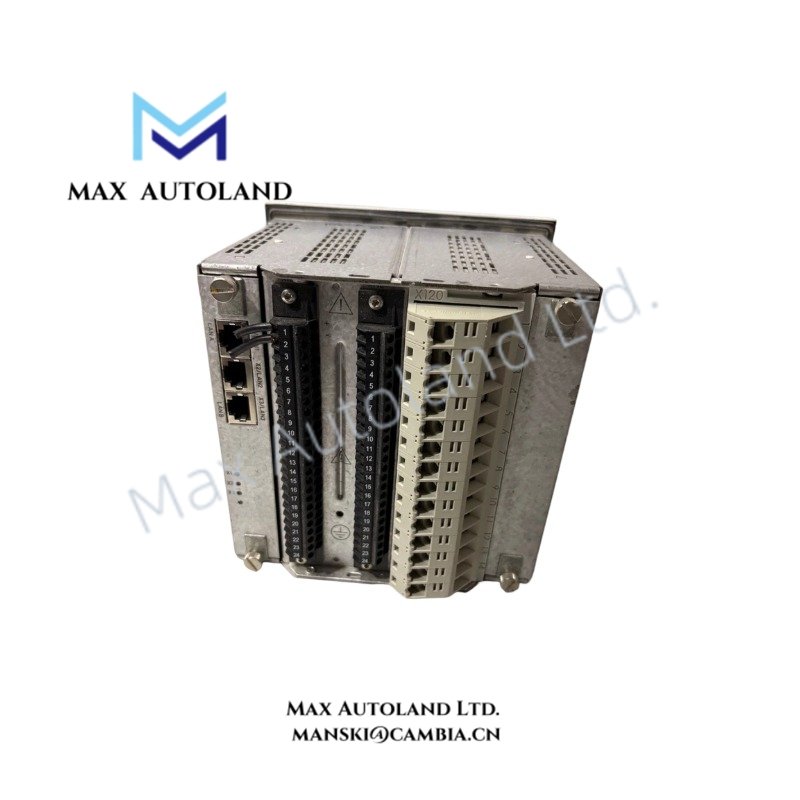

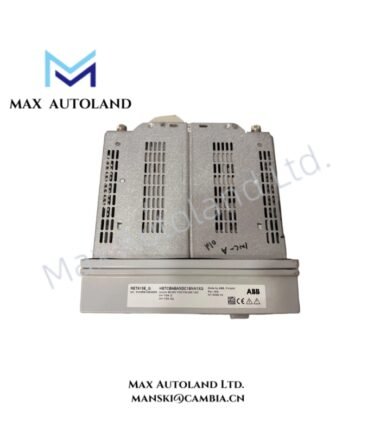

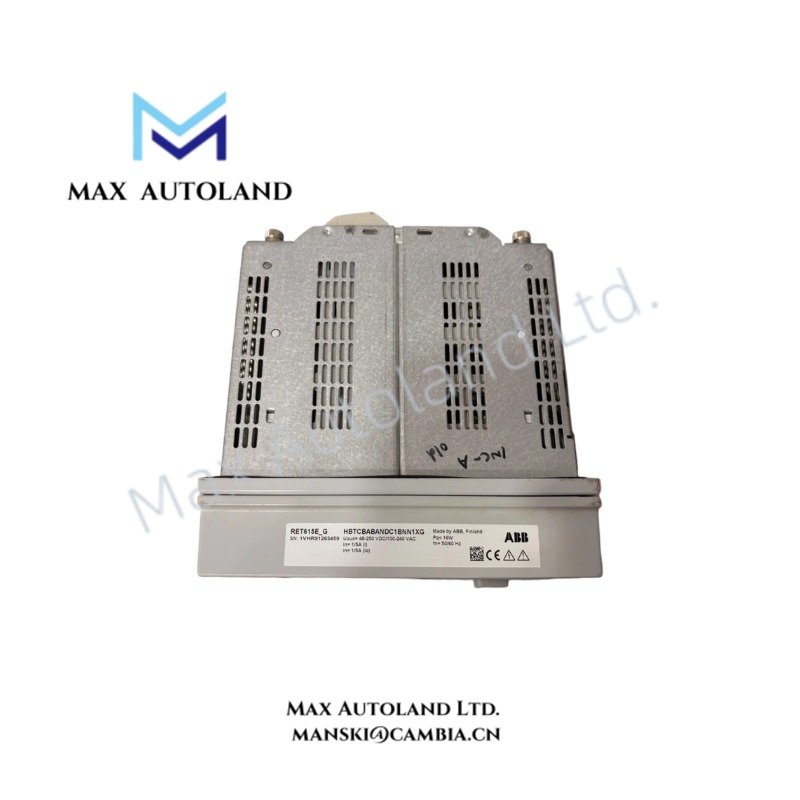

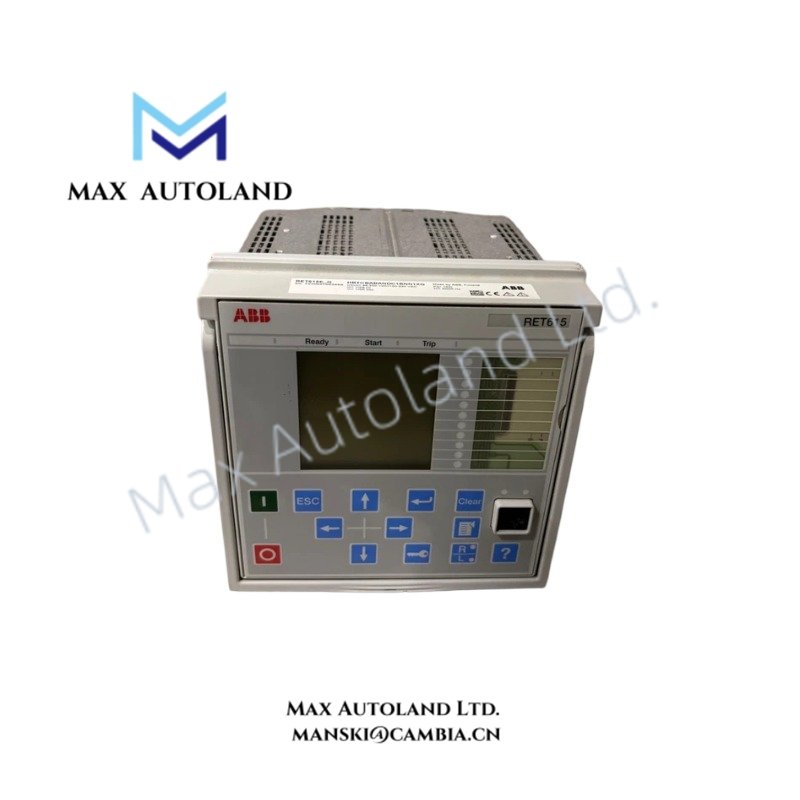

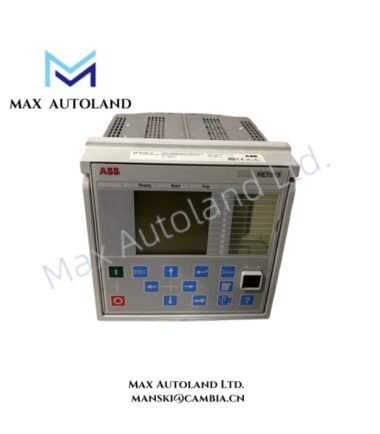

| Display Interface | Local Human Machine Interface (LHMI) with single-line diagram support |
ABB Industrial Control Communication and Firmware Compatibility
The ABB RET615 integrates into Relion 615 series protection systems through IEC 61850 communication architecture. It exchanges protection signals, status information, and control commands through GOOSE messaging and sampled value communication when configured with IEC 61850-9-2 LE Process Bus functions.
The device supports deterministic Ethernet-based substation communication through PRP and HSR redundancy mechanisms. In addition, the relay maintains compatibility with conventional serial protocols including Modbus, DNP3, and IEC 60870-5-103 for integration with existing control networks.
The RET615 applies configurable I/O density scaling to match transformer protection requirements. Furthermore, firmware configuration tools allow engineers to adapt protection logic, measurement functions, and communication mappings according to application requirements.
Frequently Asked Questions
Q: Does the ABB RET615 support transformer differential protection with harmonic restraint?
A: Yes. The RET615 provides three-phase transformer differential protection with harmonic restraint functions, including second and fifth harmonic blocking for transformer inrush and overexcitation conditions.
Q: Can the RET615 operate with IEC 61850 Process Bus communication?
A: Yes. The relay supports IEC 61850 communication functions, including GOOSE messaging and IEC 61850-9-2 LE sampled value communication when the configured hardware and application support these functions.
Q: Does the RET615 provide local transformer control functions?
A: Yes. The device supports circuit breaker control, interlocking logic, tap changer indication/control, disturbance recording, and sequence-of-events recording.
Field Installation Guidelines
Install the ABB RET615 in a suitable protection panel with correct mechanical support for the draw-out case assembly. Verify auxiliary power polarity and voltage range before energizing the device.
Connect CT and VT circuits according to the configured protection scheme. Maintain proper separation between analog measurement wiring, communication cables, and high-current power conductors to reduce electrical interference.
Ground the relay enclosure and communication shield according to substation grounding practices. Use shielded Ethernet and serial communication cables where required, and terminate shields according to the network installation standard.
Before commissioning, verify transformer differential settings, CT ratio compensation, vector group configuration, REF protection parameters, binary I/O assignments, and IEC 61850 communication mappings.
