Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB RET630 |
| Brand | ABB |
| Product Type | Transformer Protection and Control IED |
| Application | Two-winding transformers, auto-transformers, generator-transformer units |
| Protection Functions | Transformer differential protection, REF protection, overcurrent, earth-fault, voltage, frequency, thermal overload, AVR control |
| Control Capacity | Up to 2 circuit breakers and 8 disconnectors/earthing switches |

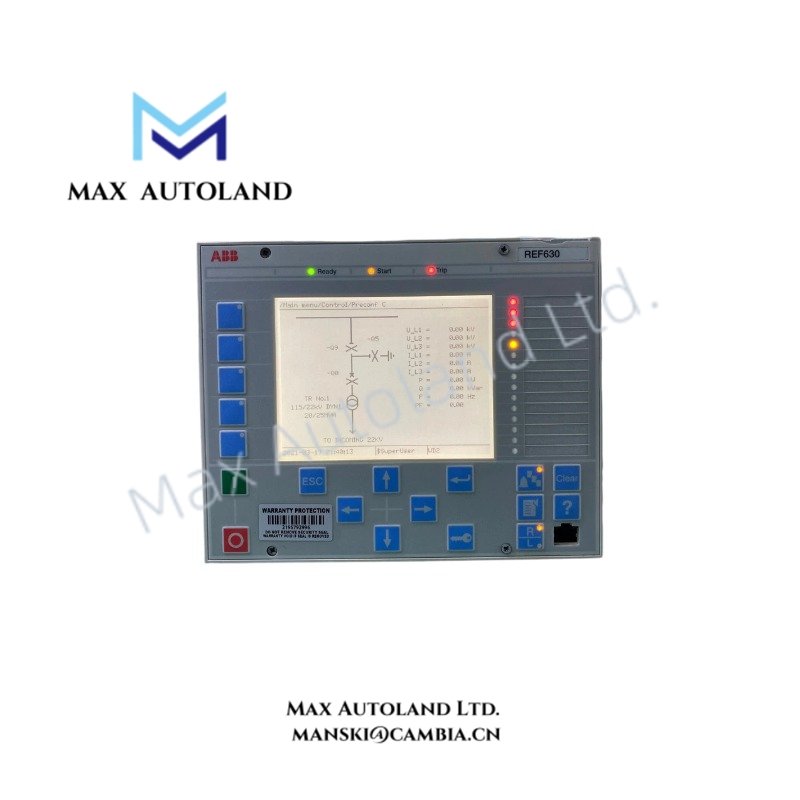

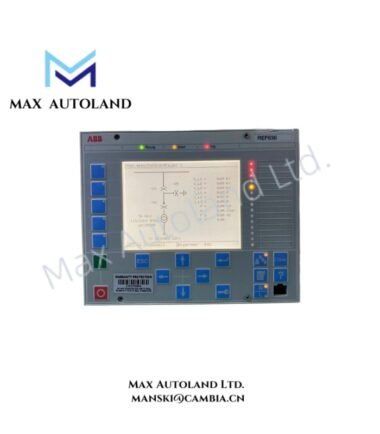

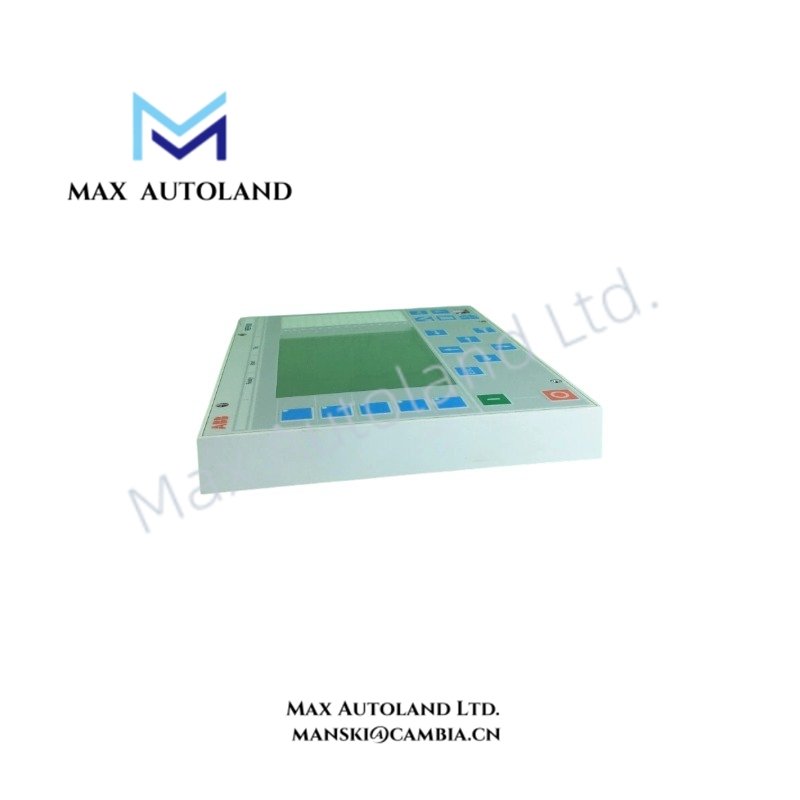

| Human-Machine Interface | Graphical display with single-line diagram, programmable pushbuttons, LED indicators |
| Communication Protocols | IEC 61850 Edition 1 and Edition 2, GOOSE, Sampled Values, DNP3, IEC 60870-5-103, Modbus |
| Ethernet Interface | RJ-45 copper Ethernet, optical ST/LC Ethernet |
| Serial Interface | RS-485 |
| Time Synchronization | IEEE 1588 v2 PTP, SNTP, IRIG-B |
| Power Supply | 100-240 VAC / 110-250 VDC or 24-60 VDC |
| Analog Inputs | Configurable CT/VT inputs, typically 1 A / 5 A CT and 100-125 V VT |
| Binary I/O | Modular binary input and output cards |
| Operating Temp | -25 deg C to +55 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Ingress Protection | IP54 front panel, IP20 rear terminals |
ABB Relion 630 Series Backplane Communication and Protection Integration
The ABB RET630 uses the Relion 630 series hardware platform to execute transformer protection logic, measurement processing, and bay-level control functions. The IED supports IEC 61850 communication with GOOSE messaging and Sampled Values, allowing deterministic data exchange between protection devices and substation automation systems.
In addition, the relay supports configurable binary I/O expansion and software-based interlocking logic. Therefore, engineers can adapt the device configuration through PCM600 according to transformer protection schemes and substation control requirements.
The ABB platform also supports deterministic industrial network communication through IEC 61850-based architectures. Firmware compatibility and configuration management are handled through ABB engineering tools to maintain consistent protection application settings.
Frequently Asked Questions
Q: Does the ABB RET630 support IEC 61850 GOOSE communication?
A: Yes. The RET630 supports IEC 61850 Edition 1 and Edition 2 communication, including GOOSE messaging and Sampled Values for substation automation applications.
Q: What transformer protection functions are integrated in the RET630?
A: The relay integrates transformer differential protection, restricted earth-fault protection, overcurrent protection, earth-fault protection, thermal overload protection, voltage protection, frequency protection, and OLTC voltage regulation control.
Q: Can the RET630 control primary switching devices?
A: Yes. The device supports bay control functions for up to 2 circuit breakers and up to 8 disconnectors or earthing switches with configurable interlocking logic.
Field Installation Guidelines
- Install the RET630 in a protected control panel environment according to ABB installation requirements.
- Verify CT and VT wiring polarity before commissioning transformer differential and earth-fault protection functions.
- Use shielded communication cables for serial and Ethernet connections where required by the substation grounding design.
- Connect cable shields according to the site grounding scheme to reduce electromagnetic interference.
- Maintain separation between power wiring and low-level communication or measurement circuits.
- Confirm auxiliary supply voltage compatibility before energizing the IED.
- Perform parameter verification, protection function testing, and communication diagnostics through PCM600 before placing the relay into service.
