Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB REF 542plus |
| Brand | ABB |
| Operating Temp | -25 deg C to +70 deg C |
| Power Consumption | Not specified in provided data |
| System Architecture | Separated Base Unit and panel-mounted HMI |
| Application Type | Medium voltage feeder protection and control terminal |
| Analog Inputs | Up to 8 channels for CTs, VTs, Rogowski sensors, and voltage dividers |
| Binary I/O | Configurable binary input and output modules with watchdog supervision |
| Fault Recording | Up to 8 analog channels and 32 binary signals |
| Sampling Rate | 1.2 kHz |
| Recording Duration | Up to 5 s |
| Display Interface | Backlit LCD HMI with single-line diagrams, alarms, and control menus |
| Protection Functions | Up to 24 active protection and control functions |
| Communication Protocols | IEC 61850, Modbus RTU, IEC 60870-5-103, SPA-bus, LON (LAG 1.4) |
| Time Synchronization | IRIG-B optical input, GPS master clock, SNTP via Ethernet |
ABB Industrial Communication and Control Architecture
The REF 542plus integrates feeder protection logic, measurement processing, and switchgear control through a modular hardware structure. Therefore, the terminal separates the Base Unit from the panel-mounted HMI to simplify switchgear installation and operator access.

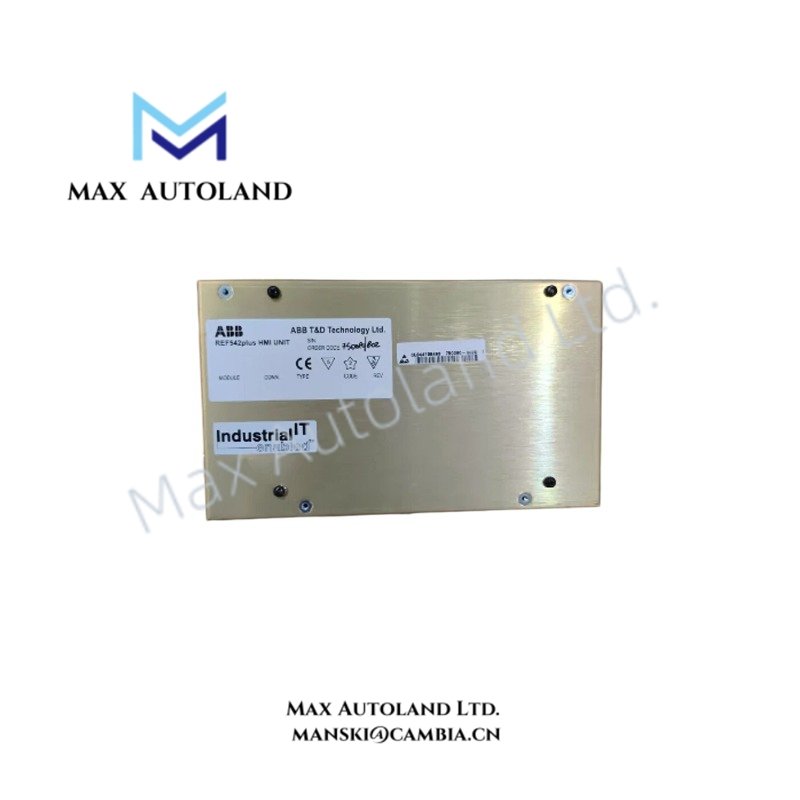

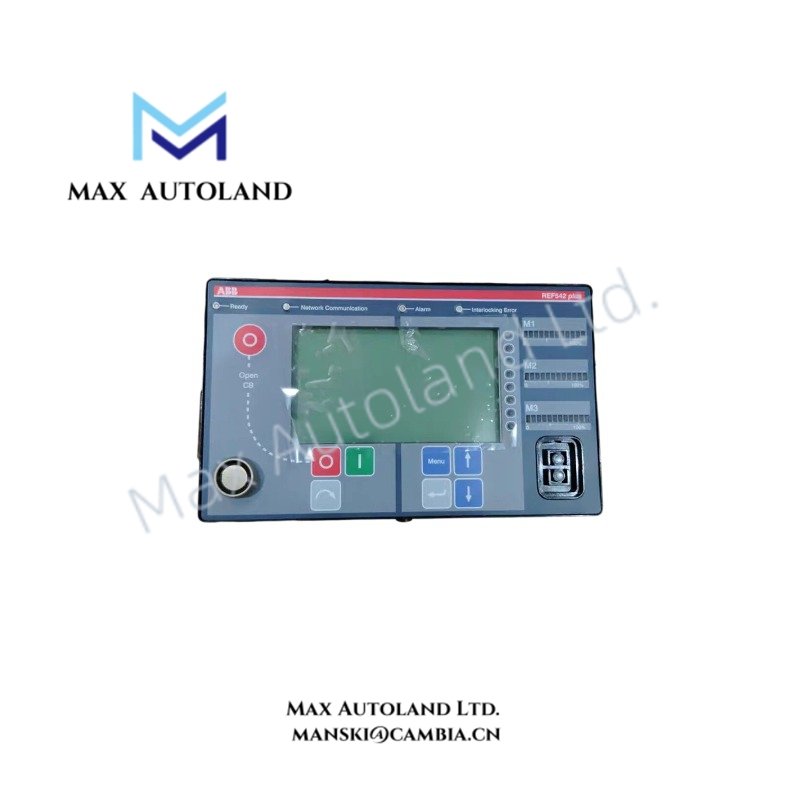

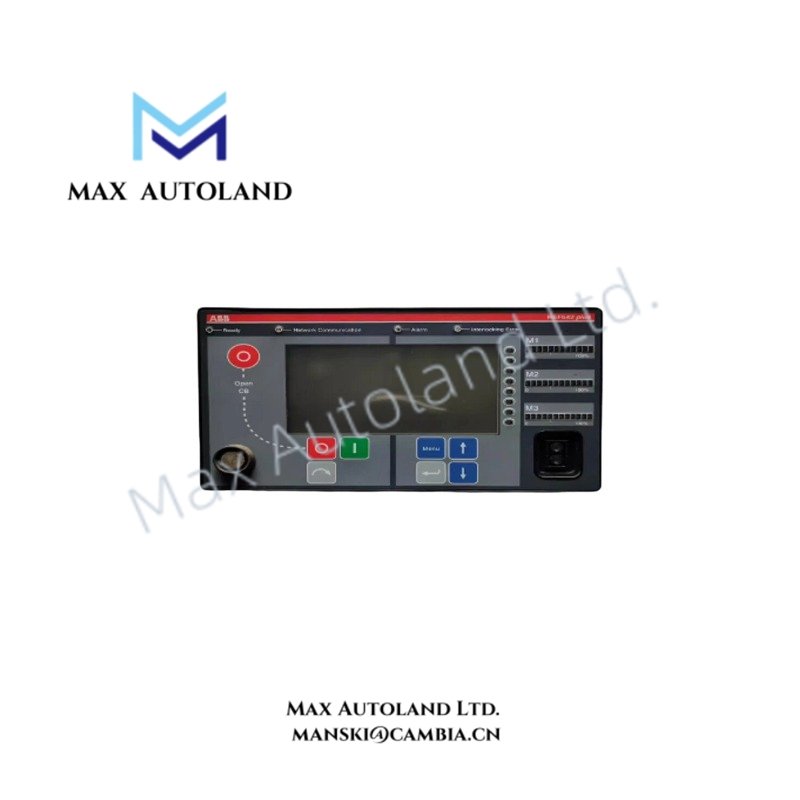

The Base Unit contains the power supply module, processor board, analog input board, binary I/O modules, and communication interfaces. Meanwhile, the HMI provides local operation through an LCD display and control keys.
The device supports industrial protection communication through IEC 61850 and legacy protocols including Modbus RTU, IEC 60870-5-103, SPA-bus, and LON. In addition, the architecture supports deterministic data exchange between protection functions, control commands, and station-level systems.
Frequently Asked Questions
Q: Does the ABB REF 542plus support IEC 61850 communication?
A: Yes. The REF 542plus supports IEC 61850 communication for station-level data exchange and protection system integration.
Q: How does the REF 542plus record electrical faults?
A: The terminal records up to 8 analog channels and 32 binary signals with a 1.2 kHz sampling rate and a maximum recording duration of 5 s.
Q: What protection functions are available in the REF 542plus?
A: The terminal supports current, voltage, frequency, thermal, differential, distance, autoreclosure, synchro-check, and directional power protection functions.
Field Installation Guidelines
- Install the Base Unit inside the low-voltage compartment according to switchgear mechanical layout requirements.
- Mount the HMI on the switchgear panel door to maintain direct operator access.
- Use shielded cables for analog signal wiring from CTs, VTs, Rogowski sensors, and voltage dividers.
- Separate communication cables from high-current power conductors to reduce electromagnetic interference.
- Connect protective earth according to the switchgear grounding design and maintain low-impedance grounding paths.
- Verify binary input polarity and output contact wiring before energizing the protection system.
- Confirm CT and VT wiring polarity before commissioning protection functions.
- Configure communication parameters after checking protocol compatibility with the station control system.
- Perform insulation checks and terminal wiring inspections before applying auxiliary power.
