Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

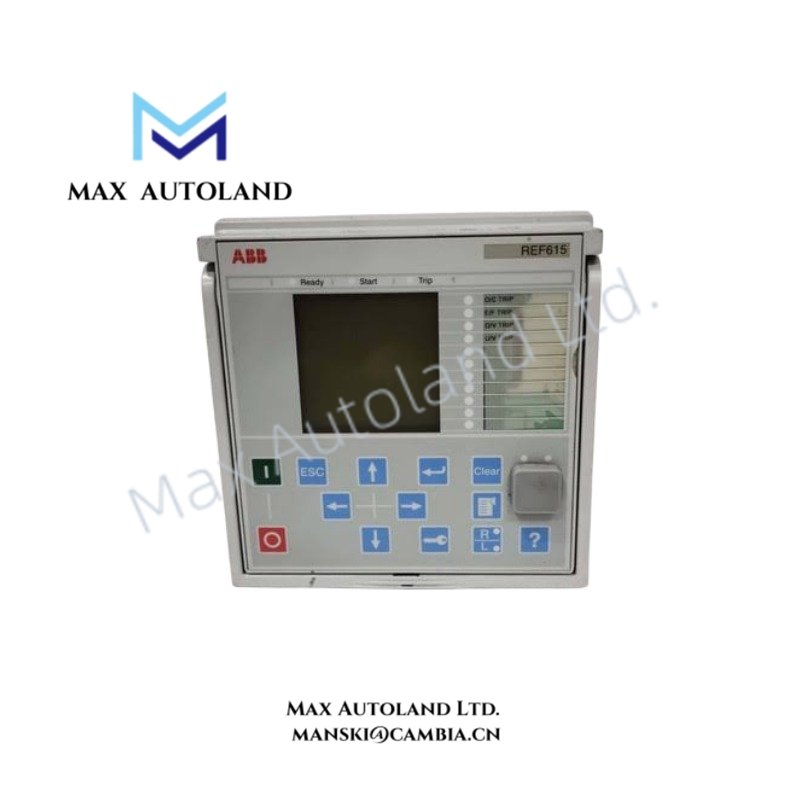

| Model | ABB REF615 HCFDACADANB2DNN1XD |
| Brand | ABB |
| Origin | Sweden |
| Power Consumption | Auxiliary supply: 48-250 VDC or 100-240 VAC |
| Product Series | ABB Relion 615 Series |
| Application Type | Feeder Protection and Control Relay |
| Mounting Design | Flush or surface mounting with withdrawable plug-in unit |
| Display Interface | Large LCD with single-line diagram, alarms, metering, and control display |
| Analog Inputs | CT/VT measurement inputs, configuration AC |
| Binary I/O | Digital input and output module configuration, option AD |
| Communication Interface | Ethernet and serial communication interfaces |
| Communication Protocols | IEC 61850, Modbus RTU/TCP, DNP3, IEC 60870-5-103 |
| Network Redundancy | PRP and HSR Ethernet redundancy support |
| Auxiliary Voltage | 48-250 VDC / 100-240 VAC |
ABB Industrial Communication and Control Functions
The ABB REF615 uses the Relion 615 platform architecture with Ethernet-based substation communication and configurable I/O processing. It supports IEC 61850 communication with GOOSE messaging for fast peer-to-peer signal exchange between protection devices.
In addition, the relay supports deterministic network operation through IEC 61850 Ethernet communication. The hardware configuration provides integration with feeder control circuits, circuit breaker commands, measurement acquisition, and substation automation systems.
The REF615 architecture supports firmware flash compatibility within the specified product family. Furthermore, its I/O density scaling allows configuration adaptation for different feeder protection schemes, including radial, looped, and meshed distribution applications.
Frequently Asked Questions
Q: Does the ABB REF615 support hot-swap replacement during operation?
A: The REF615 uses a withdrawable unit design. However, field replacement procedures must follow ABB installation instructions and applicable substation isolation requirements before removing the relay module.
Q: Which communication protocols can the REF615 hardware process?
A: The relay supports IEC 61850, GOOSE messaging, Modbus RTU/TCP, DNP3, and IEC 60870-5-103 communication protocols through configured communication interfaces.
Q: What type of protection measurements does the REF615 process?
A: The relay processes CT and VT measurement signals for phase overcurrent, earth-fault protection, voltage protection, frequency protection, thermal overload monitoring, and synchronism check functions.
Field Installation Guidelines
- Install the REF615 in a suitable protection panel or switchgear compartment with proper mechanical support for the withdrawable case design.
- Connect current transformer and voltage transformer circuits according to the configured analog input arrangement.
- Separate power wiring, CT/VT measurement wiring, and communication cables to reduce electromagnetic interference.
- Ground cable shields according to substation engineering practices and maintain low-impedance protective earth connections.
- Verify Ethernet communication settings, IEC 61850 configuration files, and network redundancy parameters before commissioning.
- Check binary input polarity and output relay wiring before applying auxiliary power.
- Confirm firmware compatibility before performing any software updates.
