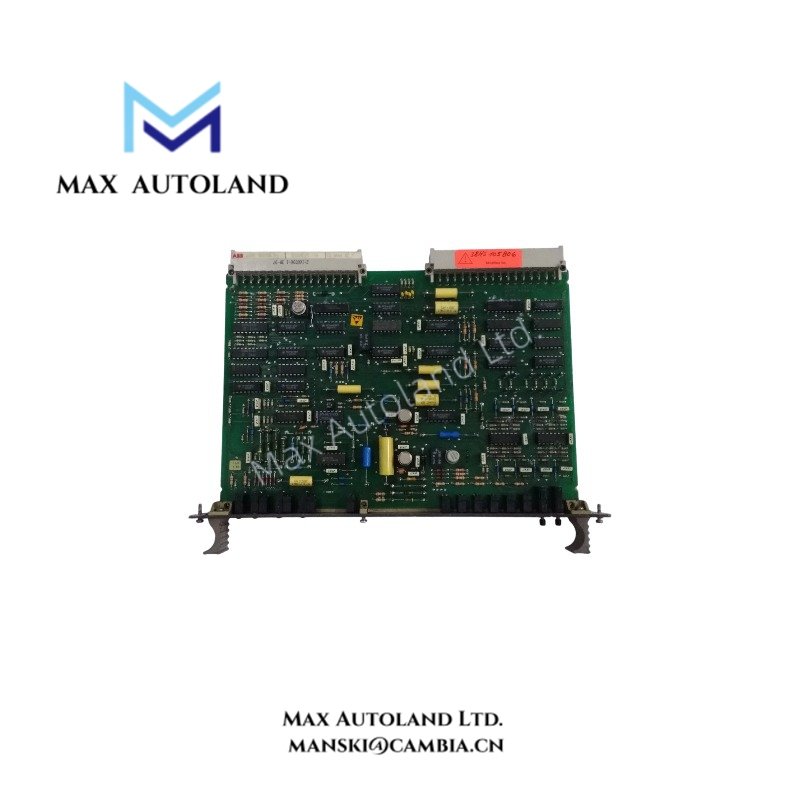

Overview
The ABB CSA463AE HIEE400103R0001 is an analog monitoring unit designed to process analog measurement signals within an industrial control system. Its specified configuration includes 16 single-ended channels, support for voltage and current ranges, and 500 Vrms channel isolation. These characteristics define its signal acquisition capacity and electrical isolation requirements when checking system configuration and replacement suitability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CSA463AE |
| Spare Model | HIEE400103R0001 |
| Additional Model Reference | HIEE4001203R1 |
| Brand | ABB |
| Product Type | Analog Monitoring Unit |
| Function | Analog Signal Monitoring |
| Number of Channels | 16 single-ended |
| Input Ranges | +/-10 V, +/-20 mA |
| Channel Isolation | 500 Vrms |
| Operating Temperature | -20 to +60 deg C |
| Storage Temperature | -40 to +85 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | Sweden |
| Estimated Shipping Dimensions | 0.6 x 26.7 x 17.8 cm |
| Weight | 0.5 kg |
| HS Code | 8537101190 |
Analog Signal Monitoring
The CSA463AE provides 16 single-ended analog channels for monitoring electrical measurement signals. Its specified voltage range of +/-10 V and current range of +/-20 mA cover two common analog signal types. Before connecting field devices, verify the channel configuration and the required signal type against the applicable hardware documentation.
Channel Isolation and Signal Compatibility
The specified 500 Vrms channel isolation is an important electrical characteristic when assessing signal separation and the module’s suitability for a particular measurement circuit. However, the isolation rating alone does not establish the permissible continuous working voltage, isolation arrangement between individual channels, or isolation between channels and the system backplane. Confirm these details before finalizing the wiring design.
Environmental Operating Conditions
The unit has a specified operating temperature range of -20 to +60 deg C and a storage range of -40 to +85 deg C. Its permitted relative humidity is 5% to 95% RH without condensation. Keep these limits in mind when evaluating the installation environment and storage conditions.
Frequently Asked Questions
Q: How many analog channels does the ABB CSA463AE support?
A: The supplied specifications identify 16 single-ended channels. Confirm the channel assignment and signal type required by the installed system before commissioning.
Q: Which analog signal ranges does the HIEE400103R0001 support?
A: The supplied data lists +/-10 V and +/-20 mA. Verify the selected input mode and field signal requirements before connecting the measurement circuit.
Q: Is HIEE400103R0001 interchangeable with HIEE4001203R1?
A: The supplied information lists both references but does not establish their interchangeability. Check the complete part number, hardware revision, connector arrangement, and system compatibility before ordering a replacement.
