Overview
The Honeywell FC-PDB-0824P is a high-performance Power Distribution Board (PDB) designed to provide reliable 24VDC power to Honeywell Safety Manager I/O modules. It ensures safe and efficient distribution of power within industrial automation systems.
The PDB-0824P power distribution board enables easy distribution of 24Vdc from the main power rail to individual 24Vdc devices inside the cabinet enclosure, such as fan units and FTAs.

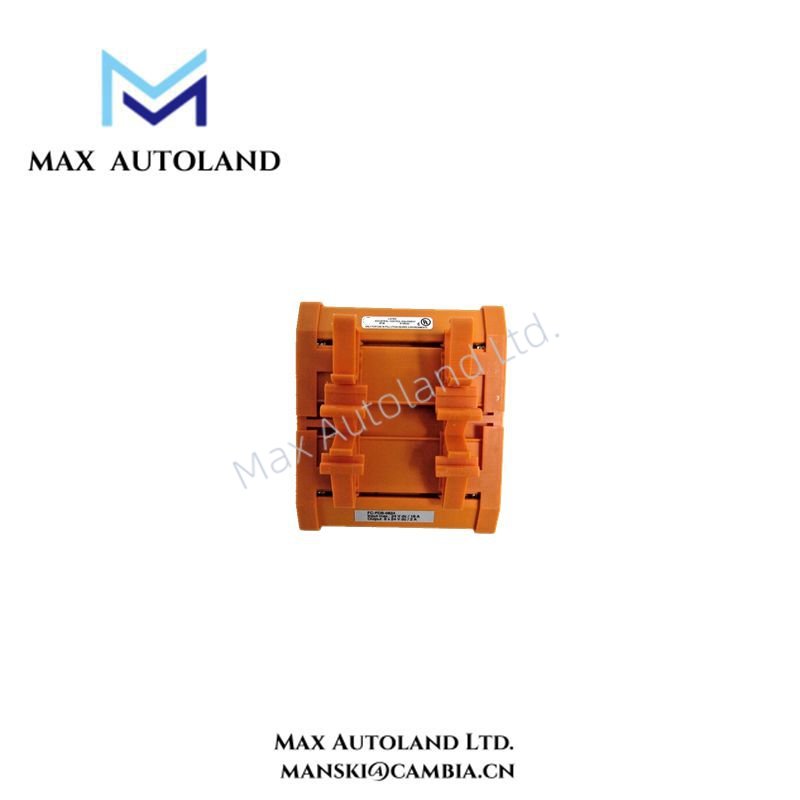

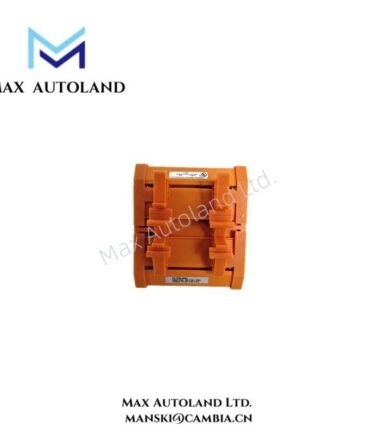

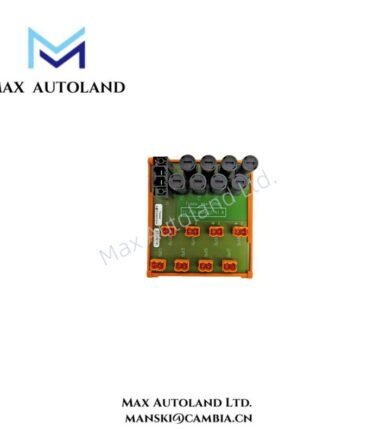

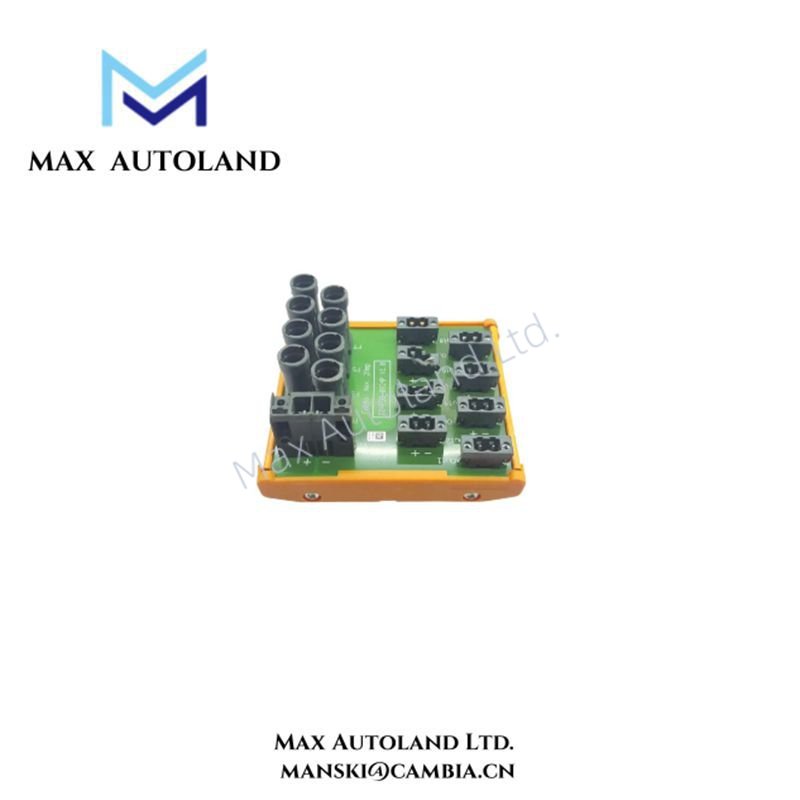

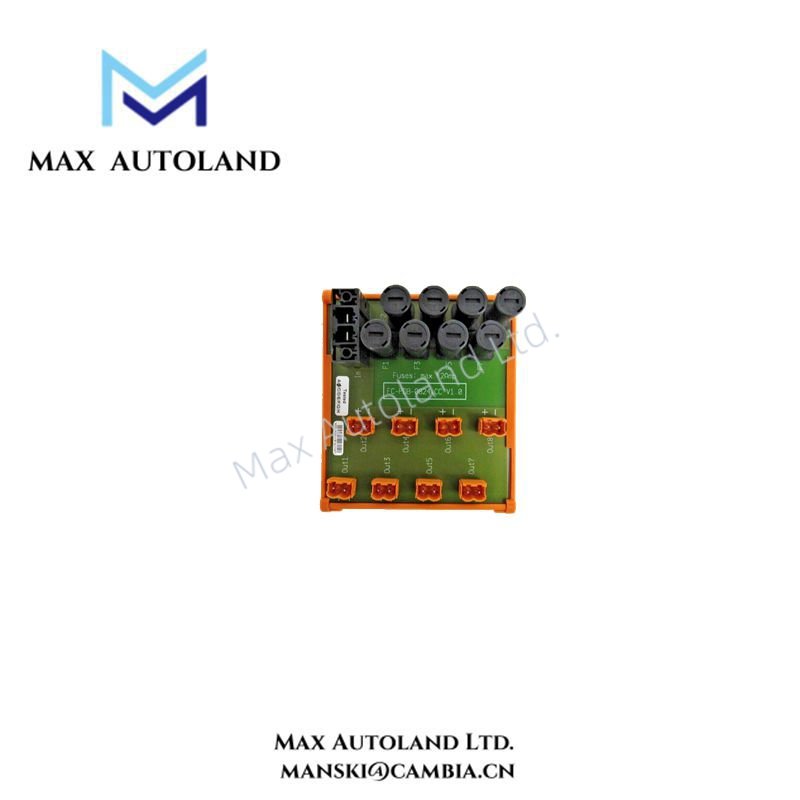

The below figure shows the PDB-0824P board with one 24Vdc entry connector (In) for connection to the main bus bar and eight (2 A fused) 24Vdc field connectors (Out1 thru Out8) for connection to eight 24Vdc devices.
Specification
| General | Type number: | FC-PDB-0824P |
| Approvals: | CE;UL,TUV,CSA pending | |
| Fuse | Fuse rating | 2A |
| Fuse dimensions: | 5×20 mm | |
| Voltage rating AC: | 250V | |
| Voltage rating DC: | 300 V | |
| Manufacturer: | Schurter | |
| Manufacturer PN: | 0001.2507 | |
| Dearting curve: | Linear from 2A at 25 dC to 1.4 A at 70 dC module ambient | |
| Connectors | In | 2 pole header with keying |
| make and type: | ·Weidmuller:BVZ 7.62HP/02F SN(conn.) ·Weidmuller:BV/SV7.62HP KO(keys) | |
| Field connector make and type: | 2 pole socket block Weidmuller:BLZ 5.08/2F SN SW | |
| Physical | Module dimensions: | 94×109×71 mm(L×W×H) 3.7×4.3×2.8 in(L×W×H) |
| DIN EN rails: | TS32/TS35×7.5 | |
| Used rail length: | 95 mm(3.74 in) |
Manual/Datasheet PDF
