Overview

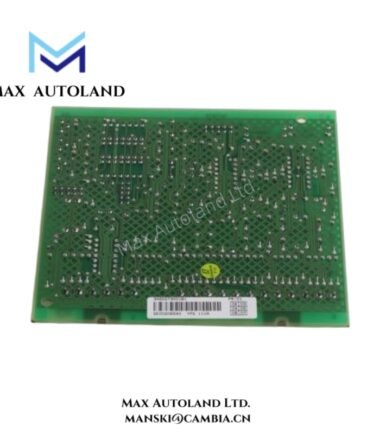

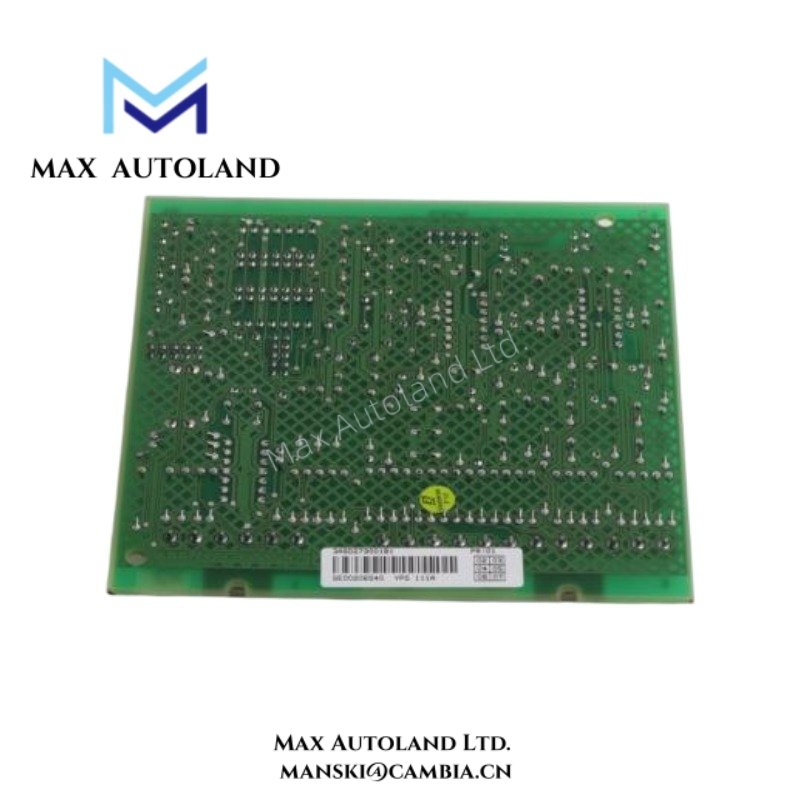

The ABB YPG111A 3ASD273001B1, also cataloged as the YPG111A Processor Module, operates as a dedicated hardware component for control program execution and system data processing within ABB distributed control and drive automation architectures. The module manages internal processing tasks, backplane data exchange, and coordination of connected system resources.
Suffix Breakdown & Model Matrix
The available documentation identifies 3ASD273001B1 as the ordering designation for the YPG111A module. No official suffix matrix or option breakdown is specified.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YPG111A 3ASD273001B1 |
| Brand | ABB |
| Product Type | Processor Module |
| System Function | Control Processing and System Management |
| Installation Method | Rack or Cabinet Mounted |
| Communication Interface | Backplane System Interface |
| Processing Role | Program Execution and Data Handling |
| Firmware Storage | Flash Memory Based |
| Origin | ABB |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Firmware Flash Compatibility
The YPG111A processor architecture supports firmware-based operational functionality within the host ABB platform. Firmware compatibility must be verified against the controller generation and associated system software revision before replacement or commissioning. Maintaining approved firmware levels helps preserve communication consistency between processor resources and connected I/O subsystems.
Frequently Asked Questions
Q: Can the YPG111A be replaced while the system remains energized?
A: Hot-swap capability depends on the specific ABB platform architecture and cabinet design. Follow the applicable maintenance manual before module removal or insertion.
Q: Does the module communicate directly with field devices?
A: The processor primarily exchanges data through the system backplane and associated communication infrastructure. Direct field connectivity depends on the installed interface modules.
Q: Is firmware verification required after module replacement?
A: Yes. Firmware revision compatibility should be checked against the system configuration before returning the controller to service.
Field Installation Guidelines
- De-energize the cabinet according to site lockout procedures before installation unless the platform explicitly supports online replacement.
- Verify slot assignment and module orientation before insertion.
- Inspect backplane connectors for contamination, bent contacts, or mechanical damage.
- Maintain proper cabinet grounding and bonding practices.
- Route communication and power wiring separately to reduce electrical interference.
- Confirm firmware and hardware revision compatibility before commissioning.
- Secure the module fully within the rack retention mechanism prior to energization.
