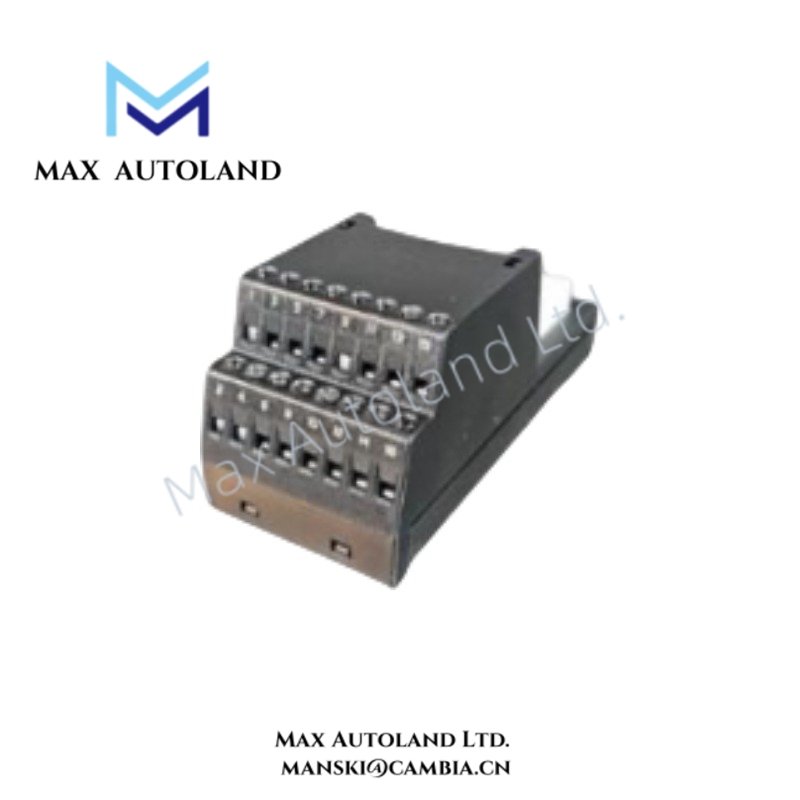

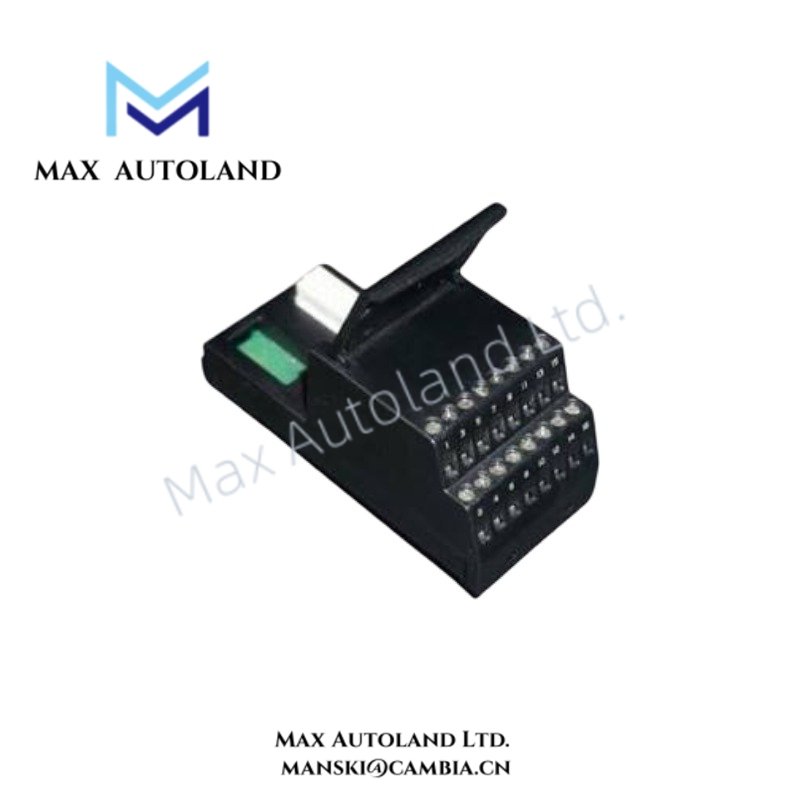

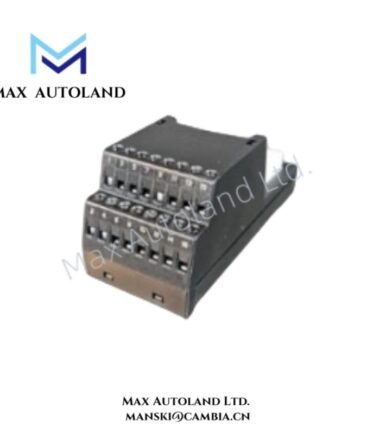

KJ4006X1-BD1 12P4722X042 Emerson Interface Terminal Block

Hardware Specifications

Channel Isolation and Process I/O Interface Characteristics

The KJ4006X1-BD1 terminal assembly supports Emerson process control I/O wiring architectures by providing a defined electrical interface between field circuits and control modules. The terminal block key position matches the installed I/O card type to prevent incorrect module interface alignment.

For Emerson distributed control applications, interface assemblies such as this support process signal continuity where channel-to-channel isolation, field wiring separation, and correct terminal assignment affect analog and digital signal integrity. The terminal arrangement allows engineers to maintain consistent field loop organization during system installation and maintenance.

Frequently Asked Questions

Q: What is the primary function of the Emerson KJ4006X1-BD1 12P4722X042?

A: The KJ4006X1-BD1 12P4722X042 functions as an interface terminal block that terminates field wiring and connects field circuits to compatible Emerson I/O card assemblies.

Q: Does the terminal block require a specific key position configuration?

A: Yes. The terminal block key position must be configured according to the installed I/O card to ensure correct mechanical and electrical matching.

Q: What environmental conditions are specified for this terminal block?

A: The unit is specified for operation from -40 deg C to +70 deg C, with 5 to 95% relative humidity non-condensing, ISA-S71.04-1985 Class G3 airborne contaminant conditions, and defined shock and vibration limits.

Field Installation Guidelines

• Install the terminal block according to the corresponding Emerson I/O module wiring documentation.
• Verify the terminal key position before mounting to prevent mismatch with the target I/O card.
• Route field cables separately from high-voltage power conductors to reduce electrical interference.
• Maintain proper cable shielding and connect shield layers according to the plant grounding standard.
• Confirm all field wiring labels and terminal assignments before applying field power.
• Inspect terminal connections for correct mechanical engagement and secure conductor termination.
• Follow standard industrial panel installation practices for spacing, grounding, and cable management.
